Shop fox D4934 Instruction Sheet

13" Helical Cutterhead for
DeWalt DW735/DW735X Planer
Phone #: (360) 734-3482 • Tech Support: techsupport@woodstockint.com • Web: www.woodstockint.com
Introduction
The D4934 13" Helical Cutterhead is designed
to replace the straight-knife cutterhead on the
DeWalt DW735 and DW735X Planers.
The total procedure of changing the cutterhead
and reassembling the planer takes approximately
three hours. Read these instructions thoroughly
before beginning. These instructions make
reference to many procedures detailed in your
planer manual. Always consult your manual for
these procedures.
We strongly recommend using the new
replacement bearings included with the D4934,
even if the existing bearings appear to be in
good condition. Call Technical Support at (360)
734-3482 if you need help.
The Model D4934 13" Helical Cutterhead is
designed to be used ONLY with the DeWalt
DW735 and DW735X Planers. DO NOT install
the Model D4934 in any other planer model
or make. Failure to comply can result in
serious personal injury!
Specifications
Maximum Width of Cut ...........................13"
Cutterhead Diameter ............................ 1
Number of Cutter Rows ............................. 3
Total Number of Indexable Inserts .............. 30
COPYRIGHT © SEPTEMBER, 2020 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
#21332KS
Model D4934
Instruction Sheet
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Recommended Tools
Description
Pair of Heavy Leather Gloves ...................... 1
Open-End Wrench 6, 24 mm .................. 1 Ea.
Deep Well Socket 31, 40mm .................. 1 Ea.
Retaining Ring Pliers ................................ 1
Hex Wrench 4mm .................................... 1
Torx Driver T-30 (Included with DW735/X) ...... 1
Phillips Screwdriver #2 .............................. 1
Steel Hammer ........................................ 1
Hex Bolt ⁄
5
Wood Board (Minimum 12" Length) ............... 1
Tape ........................................ As Needed
Scrap Cardboard ......................... As Needed

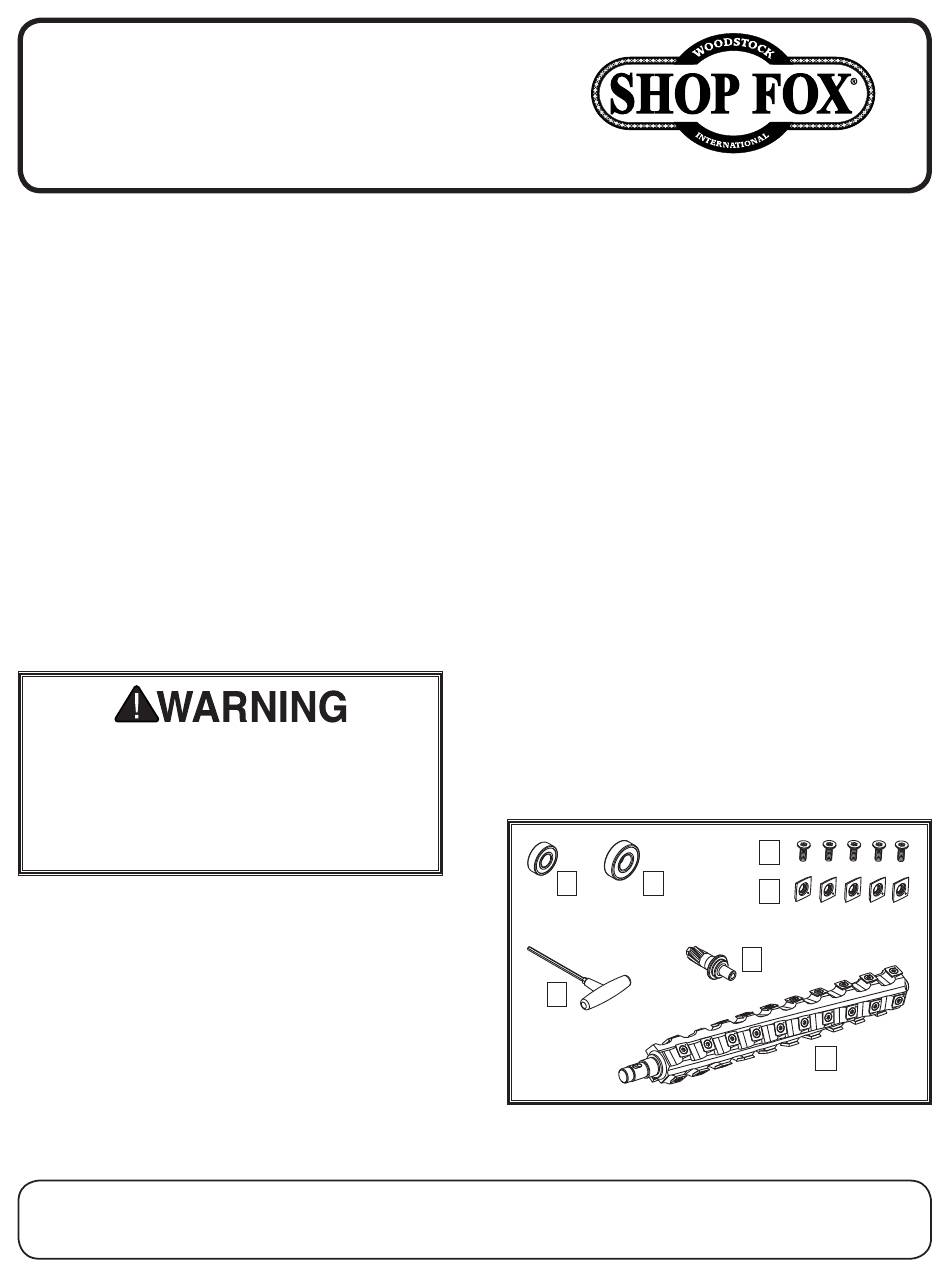

Inventory (Figure 1)
Description
A. Ball Bearing 6202-2NSE ........................ 1
B. Ball Bearing 6204-2NSE ........................ 1
C. Flat HD Torx Screws T-25 #10-32 x ½"....... 5
D. Carbide Inserts 15 x 15 x 2.5mm ............ 5
E. T-Handle Torx Driver T-25 ..................... 1
F.
Helical Pinion Gear 8T ......................... 1
G. Helical Cutterhead 13" ........................ 1
A
⁄ "
7
8
E
Figure 1. Model D4934 Inventory.
"-18 x 2 ................................. 1
16
C
B
D
F
Qty
Qty
G
