Shop fox D4976 Instruction Sheet

13" Spiral Cutterhead for
DeWalt DW735/DW735X Planer
Phone #: (360) 734-3482 • Tech Support: techsupport@woodstockint.com • Web: www.woodstockint.com
Introduction
The D4976 13" Spiral Cutterhead is designed
to replace the straight-knife cutterhead on the
DeWalt DW735 and DW735X Planers.
The total procedure for changing the cutterhead
and reassembling the planer takes approximately
three hours. Read these instructions thoroughly
before beginning. These instructions make
reference to many procedures detailed in your
planer manual. Always consult your manual for
these procedures. We strongly recommend using
the new replacement bearings included with the
D4976, even if the existing bearings appear to
be in good condition. Call Technical Support at
(360) 734-3482 if you need help.
The Model D4976 13" Spiral Cutterhead
is designed to be used only with the
DeWalt DW735 and DW735X Planers. DO
NOT install the D4976 in any other planer
model or make. Doing so could result
in property damage or serious personal
injury.
Specifications
Maximum Width of Cut ...........................13"
Cutterhead Diameter ............................. 1
Number of Cutter Rows ............................. 3
Total Number of Indexable Cutters ............. 30
COPYRIGHT © JANUARY, 2022 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
#22204SS
Model D4976
Instruction Sheet
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Recommended Tools
Description
Open-End Wrenches 6, 24 mm ................. 1 Ea
Deep Well Sockets 31, 40mm ................. 1 Ea.
Retaining Ring Pliers (Internal and External) ... 1
Hex Wrench 4mm .................................... 1
Torx Driver T-30 (Included with DW735/X) ...... 1
Phillips Screwdriver #2 .............................. 1
Steel Hammer ........................................ 1
Hex Bolt ⁄
5
16
Pair of Heavy Leather Gloves ...................... 1
Wood Board (Minimum 12" Length) ............... 1
Tape ........................................ As Needed
Scrap Cardboard ......................... As Needed
Inventory (Figure 1)
Description
A. Ball Bearing 6202-2NSE ........................ 1
B. Ball Bearing 6204-2NSE ........................ 1
C. Flat Hd Torx Screws T-25 #10-32 x ½" ....... 5
D. Carbide Inserts 15 x 15 x 2.5mm ............ 5
E. Spiral Cutterhead 13" .......................... 1
F. T-Handle Torx Driver T-25 ..................... 1
G. Helical Pinion Gear 8T ......................... 1
A
⁄ "
7
8 F

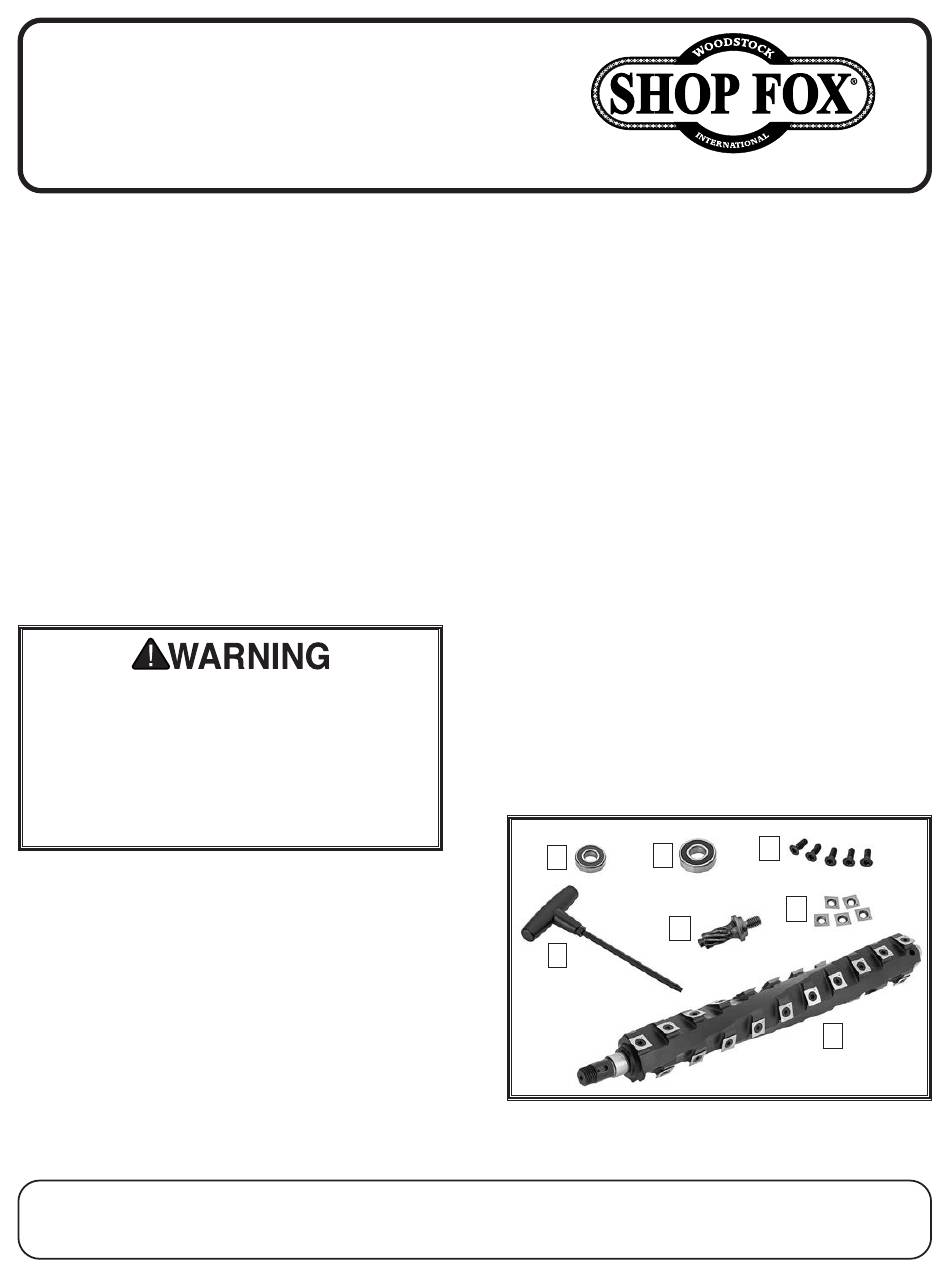

Figure 1. Model D4976 inventory.
"-18 x 2 .................................. 1
C
B
G
Qty
Qty
D
E
Printed in Taiwan
