Shop fox D4328 Instruction Sheet

Model D4327/D4328
Quick Release Wood Vise
Instruction Sheet
Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz

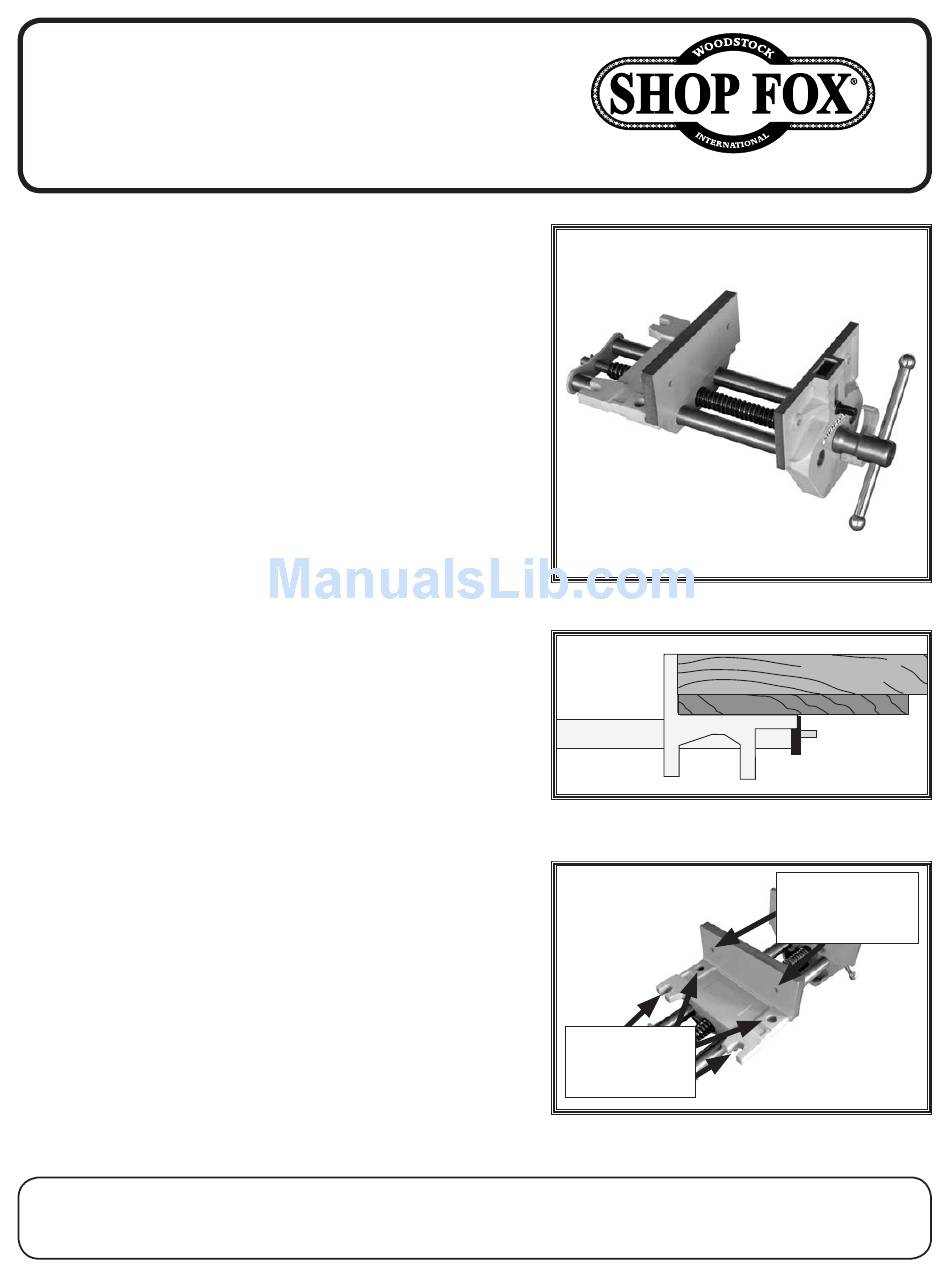

Introduction

Your new Model D4327/D4328 Quick Release Wood Vise
(Figure 1) is designed to fit on workbenches 2
thicker, but can be adapted to workbenches down to 1
thick by using a shim. Holes are pre-drilled in the jaw
faces to attach aftermarket or shop-built wood clamping
vise jaw pads.

D4327 Specifications

• Jaw Width .................................................7"
• Mounting Height (Workbench Thickness) ..........2
• Maximum Jaw Opening ..................................8"
• Weight ................................................21 lbs.

D4328 Specifications

• Jaw Width .................................................9"
• Mounting Height (Workbench Thickness) ..........2
• Maximum Jaw Opening ................................ 10"
• Weight ................................................25 lbs.

Installation

1. Have another person hold the vise up against the
workbench in the desired mounting location. If the
workbench has holes for bench dogs, make sure the
bench dog on the vise is aligned with those holes.
Note: If the workbench is less than 2
piece of scrap wood (Figure 2) between the vise and
workbench as a shim. Cut the shim to the necessary
thickness so the vise does not protrude above the
workbench after mounting.
2. Pencil mark the workbench through the mounting
holes to establish locations to drill pilot holes.
3. Use a ⁄ " drill bit to drill pilot holes approximately
1
8
1 ⁄ " deep in the face of the workbench, where the
1
2
wood screws will be used (see Figure 3).
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
#14922ST
COPYRIGHT © MARCH, 2012 BY WOODSTOCK INTERNATIONAL, INC.
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
⁄ " and
1
4
⁄ "
1
2
⁄ "
1
4
⁄ "
1
4
Figure 2. Shim placed between workbench
⁄ " thick, use a
1
4

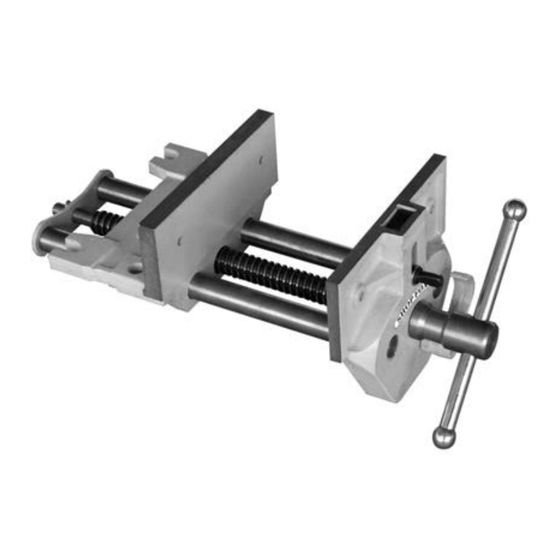

Figure 1. Quick release wood vise.
Shim
Vise
and vise for workbenches under 2
Mounting
Holes for Lag
Screws
Figure 3. Mounting hole locations.
Workbench
⁄ ".
1
4
Mounting Holes
for Wood
Screws
Printed in China
