Shop fox D4648 Instruction Sheet

Model D4648
Cabinet Maker's Front Vise
Instruction Sheet
Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz
Introduction
Your new Front Vise (see Figure 1) is designed to fit on
workbenches 1 ⁄ " thick. The front vise features a solid
1
2
hardwood clamping jaw pad.
Specifications
Jaw
Model Width
D4648 13"
Installation
The Cabinet Maker's Front Vise comes fully assembled
from the factory. Mounting hardware is not provided with
this front vise.
1. With help from an assistant, hold front vise up
against workbench in desired mounting location.
Note: If your workbench has holes for bench dogs,
ensure bench dog holes on top of vise jaw (see
Figure 1 and Figure 4 on Page 2) align with those
holes.
2. Use a pencil to mark underside of workbench
through six vise mounting holes (see Figure 2) to
drill pilot holes in workbench.
3. Use a
⁄ " drill bit to drill pilot holes approximately
1
8
1" deep in underside of workbench (see Figure 3).
4. Attach vise assembly to workbench using (4) #10 x
1 ⁄ " wood screws through underside of workbench,
1
2
as shown in Figure 3.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
#19127JH
Workbench Max. Jaw
Thickness Opening
1 ⁄ " 5 ⁄
1 7
2
COPYRIGHT © AUGUST, 2017 BY WOODSTOCK INTERNATIONAL, INC.
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Weight
" 13 lbs.
8
Figure 2. Mounting hole locations (viewed
Bench Dog Holes

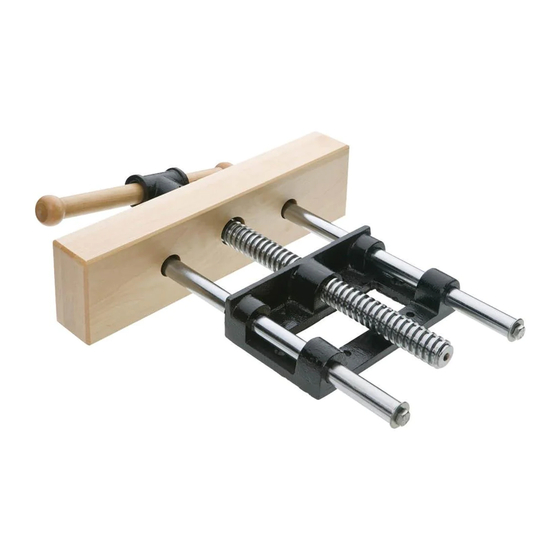

Figure 1. Model D4648 front vise.
Mounting Holes
from below).
Vise
Figure 3. Mounting diagram.
Workbench
Wood
Screws
Printed in China
