SERVICE DATA SHEET
Gas Ranges with ES 330/335/340/345/355 Electronic Oven Controls
-
NOTICE
This service data sheet is intended for use by persons
having electrical and mechanical training and a level of knowledge
of these subjects generally considered acceptable in the appliance
repair trade. The manufacturer cannot be responsible, nor
assume any liability for injury or damage of any kind arising from
the use of this data sheet.
SAFE SERVICING PRACTICES
To avoid the possibility of personal injury and/or property damage, it is
important that safe servicing practices be observed. The following are
examples, but without limitation, of such practices.
1. Before servicing or moving an appliance remove power cord from
electrical outlet, trip circuit breaker to OFF, or remove fuse.
2. Never interfere with the proper installation of any safety device.
3. GROUNDING: The standard color coding for safety ground wires is
GREEN or GREEN WITH YELLOW STRIPES. Ground leads are not
to be used as current carrying conductors. It is extremely
important that the service technician reestablish all safety
grounds prior to completion of service. Failure to do so will
create a potential safety hazard.
4. Prior to returning the product to service, ensure that:
• All electric connections are correct and secure.
• All electrical leads are properly dressed and secured away from
sharp edges, high-temperature components, and moving parts.
• All uninsulated electrical terminals, connectors, heaters, etc. are
adequately spaced away from all metal parts and panels.
• All safety grounds (both internal and external) are correctly and
securely reassembled.

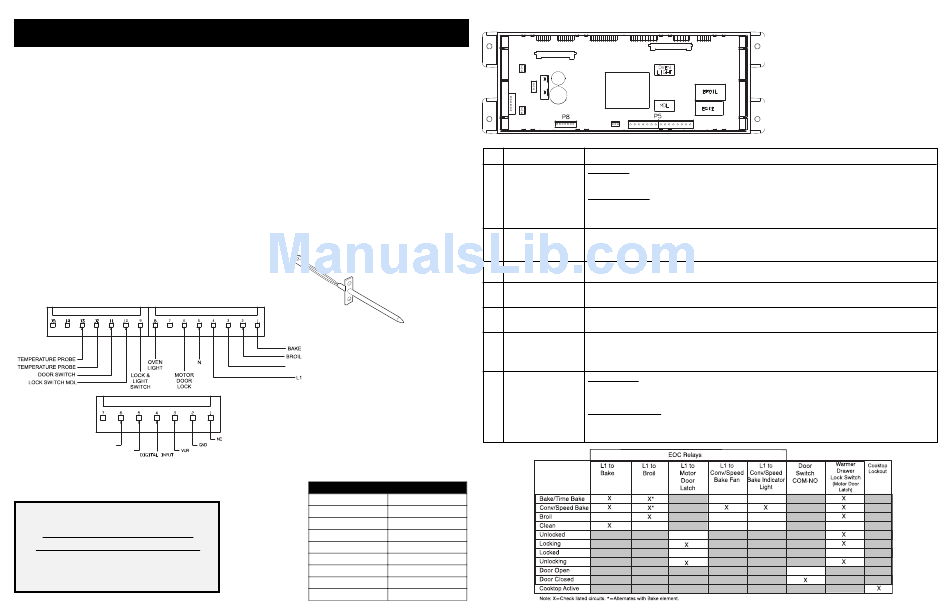

E.O.C. CONTROL CONNECTIONS
P8 CONNECTIONS
(some models)
MEAT PROBE
MEAT PROBE
IMPORTANT
DO NOT REMOVE THIS BAG
OR DESTROY THE CONTENTS
WIRING DIAGRAMS AND SERVICE
INFORMATION ENCLOSED
REPLACE CONTENTS IN BAG
p/n 316904019 Rev A (1108)
OVEN CALIBRATION
Set the electronic oven control for normal baking at 350°F. Obtain an average oven
temperature after a minimum of 5 cycles. Press STOP/CLEAR to end bake mode.
TEMPERATURE ADJUSTMENT
1. Set EOC to bake at 550°F.
2. Within 5 seconds of setting 550°F, press and hold the bake pad for approximately
15 seconds until a single beep is heard (longer may cause F11 shorted keypad
alarm).
3. Calibration offset should appear in the display.
4. Use the slew keys to adjust the oven temperature up or down 35°F in 5°F
increments.
5. Once the desired (-35° to 35°) offset has been applied, press STOP/CLEAR.
Note: Changing calibration affects normal Bake mode. The adjustments made will not
change the Self-Cleaning cycle temperature.
RESISTANCE TEMPERATURE
DECTECTOR
CONVECTION FAN
RTD TABLE
RTD SCALE
Temperature (°F) Resistance (ohms)
32 ± 1.9
75 ± 2.5
250 ± 4.4
350 ± 5.4
450 ± 6.9
550 ± 8.2
650 ± 9.6
900 ± 13.6
ELECTRONIC OVEN CONTROL (E.O.C. Rear View)
ELECTRONIC OVEN CONTROL FAULT CODE DESCRIPTIONS
Fault Likely failure
Code condition/cause
F10 Runaway temperature. If Oven is cold:
Oven heats when no cook 1. If fault code is present with cold oven test oven temperature sensor probe circuit resistance. Use RTD scale found in the tech sheet.
cycle is programmed. 2. Replace probe or repair wiring connections if defective.
3. If temperature sensor probe circuit is good but fault code remains when oven is cold replace the EOC.
If Oven is overheating:
1. If oven is severely overheating/heating when no cook cycle is programmed test oven temperature sensor probe circuit resistance using
the RTD scale found in the service tech sheet. Also verify that the temperature sensor probe in properly installed in the oven cavity.
2. Disconnect power from the range, wait 30 seconds and reapply power. If oven continues to heat when the power is reapplied, replace
the EOC. NOTE: Severe overheating may require the entire oven to be replaced should damage be extensive.
F11 Shorted keypad or selector 1. Reset power supply to range - Disconnect power, wait 30 seconds and reapply power.
switch. 2. Check/reseat ribbon harness connections between touch panel and EOC.
3. Test keyboard circuits. Replace touch panel if defective.
4. If keyboard ciruits check good replace the EOC.
Disconnect power, wait 30 seconds and reapply power. If fault returns upon power-up, replace EOC.
F12 EOC Internal software error
or failure.
F13
1. Check/reseat connections between membrane switch, display boards and EOC.
F14 Membrane switch tail missing
2. Replace the membrane control panel assembly.
or not connected
3. Replace the EOC.
F20 Communication failure
1. Test harness/connections between P6 (EOC) and P7 (UIB).
between EOC & ESEC
2. If harness checks O.K., failure can be caused by faulty UIB or EOC
system
F30 Open oven sensor probe 1. (F30) Check resistance at room temperature & compare to RTD Sensor resistance chart. If resistance is correct replace the EOC. If
circuit. resistance does not match the RTD chart replace RTD Sensor Probe. Check Sensor wiring harness between EOC & Sensor Probe
connector.
F31
Shorted oven sensor probe 2. (F31) Check resistance at room temperature, if less than 500 ohms, replace RTD Sensor Probe. Check for shorted Sensor Probe
circuit. harness between EOC & Probe connector. If resistance is correct replace the EOC.
F90 Door lock motor or latch If lock motor runs:
circuit failure. 1. Test continuity of wiring between EOC and lock switch on lock motor assy. Repair if needed.
F91
2. Advance motor until cam depresses the plunger on lock motor switch. Test continuity of switch contacts. If switch is open replace
F92
lock motor assemblyy.
F93
3. If motor runs and switch contacts and wiring harness test good, replace the EOC.
F94
If lock motor does not run:
F95
1. Test continuity of lock motor windings. Replace lock motor assembly if windings are open.
2. Test lock motor operation by using a test cord to apply voltage. If motor does not operate replace lock motor assy.
3. If motor runs with test cord check continuity of wire harness to lock motor terminals. If harness is good replace the EOC.
CIRCUIT
ANALYSIS
MATRIX
1000 ± 4.0
1091 ± 5.3
1453 ± 8.9
1654 ± 10.8
1852 ± 13.5
2047 ± 15.8
2237 ± 18.5
**
2697 ± 24.4
Suggested Corrective Action
** = some models.
