Frigidaire FGGF3032K Parts Catalog
30-inch freestanding gas range
Hide thumbs
Also See for FGGF3032K:
- Installation instructions manual (8 pages) ,
- Use and care manual (28 pages)
Advertisement
Quick Links
LGGF3033KBA.eps CLGGF3033KBA.eps BFGGF3031KBA.eps VLGGF3033KBA.eps
TFGGF3031KBA.eps DLGGF3033KBA.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Product No.
FGGF3032KBA FGGF3032KWA
Series
30" f/s gas
Color
black
Market
North America
Owner's Guide
316901203
Installation Instructions 316259343
Service Data Sheet
316904004
Publication No.
5995538799
09/04/23
(EN/SERVICE/ECL)
369
30" f/s gas
white
North America
316901203
316259343
316904004

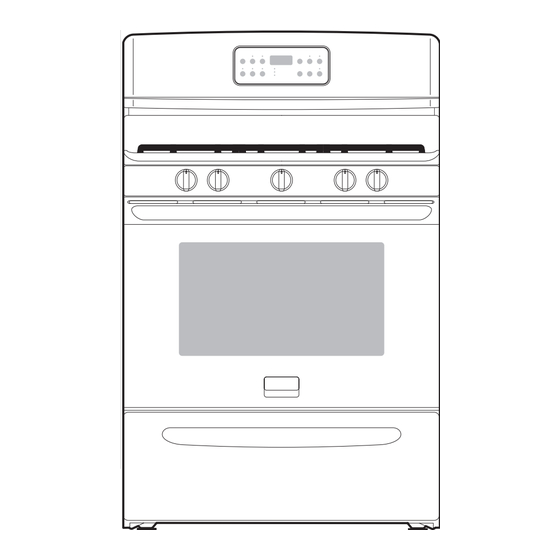

30-INCH FREE-
STANDING GAS
RANGE
Model No.
FGGF3032K
©
Copyright
2009 Home Products, Inc.
All rights reserved.
Advertisement
Related Manuals for Frigidaire FGGF3032K
Summary of Contents for Frigidaire FGGF3032K
- Page 1 Product No. FGGF3032KBA FGGF3032KWA Series 30" f/s gas 30" f/s gas Color black white Market North America North America Owner's Guide 316901203 316901203 Installation Instructions 316259343 316259343 Service Data Sheet 316904004 316904004 30-INCH FREE- LGGF3033KBA.eps CLGGF3033KBA.eps BFGGF3031KBA.eps VLGGF3033KBA.eps STANDING GAS TFGGF3031KBA.eps DLGGF3033KBA.eps RANGE Electrolux Major Appliances...
- Page 2 Publication No: 5995538799 FGGF3032K BACKGUARD CLGGF3033KBA 04/09...
- Page 3 FGGF3032K Publication No: 5995538799 BACKGUARD Model Index: A FGGF3032K (FGGF3032KWA) B FGGF3032K (FGGF3032KBA) POS. NO PART NO. DESCRIPTION 316557600 Shield, rear wall 316497601 Shield, backguard, inner 316546704 Cap, backguard, white, RH end 316546702 Cap, backguard, black, RH end 316546705 Cap, backguard, white, LH end 316546703 Cap, backguard, black, LH end 316572403...
- Page 4 Publication No: 5995538799 FGGF3032K BURNER BFGGF3031KBA 04/09...
- Page 5 FGGF3032K Publication No: 5995538799 BURNER Model Index: A FGGF3032K (FGGF3032KWA) B FGGF3032K (FGGF3032KBA) POS. NO PART NO. DESCRIPTION 316551202 Manifold, pipe 5303935233 Valve, 17K burner, w/mtg screw 2A # 5303935235 Valve, 5K burner, w/mtg screw 2B # 5303935236 Valve, 14K burner, w/mtg screw 2C # 5303935234 Valve, 9.5K burner, w/mtg screw...
- Page 6 Publication No: 5995538799 FGGF3032K BODY NOTE: Oven Liner N/A VLGGF3033KBA Ass. du four N/A 04/09...
- Page 7 FGGF3032K Publication No: 5995538799 BODY Model Index: A FGGF3032K (FGGF3032KWA) B FGGF3032K (FGGF3032KBA) POS. NO PART NO. DESCRIPTION 316401600 Back, main 316021109 Screw, 8-18 x 0.5, chrome 316437100 Brace, oven top 316021132 Screw, 8-18 X 11/16, black, (3) 316400116 Panel, bodyside, white, RH 316400117 Panel, bodyside, white, LH 316400118...
- Page 8 Publication No: 5995538799 FGGF3032K BODY NOTE: Oven Liner N/A VLGGF3033KBA Ass. du four N/A 04/09...
- Page 9 FGGF3032K Publication No: 5995538799 BODY Model Index: A FGGF3032K (FGGF3032KWA) B FGGF3032K (FGGF3032KBA) POS. NO PART NO. DESCRIPTION 89 # 316439000 Motor, latch/lock 316401100 Shield, main front 316401000 Shield, front, burner 316404100 Bracket, motor mtg. 316026701 Cover, fan 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5 108# 316459100 Motor-convection...
- Page 10 Publication No: 5995538799 FGGF3032K TOP/DRAWER TFGGF3031KBA 04/09...
- Page 11 FGGF3032K Publication No: 5995538799 TOP/DRAWER Model Index: A FGGF3032K (FGGF3032KWA) B FGGF3032K (FGGF3032KBA) POS. NO PART NO. DESCRIPTION 316408703 Drawer, utility 316021110 Screw, 8-18 x 0.5, black 316403200 Liner, drawer 316403401 Panel, drawer, white, front 316403402 Panel, drawer, black, front 316407400 Glide, drawer, rear 316469662...
- Page 12 Publication No: 5995538799 FGGF3032K DOOR DLGGF3033KBA 04/09...
- Page 13 FGGF3032K Publication No: 5995538799 DOOR Model Index: A FGGF3032K (FGGF3032KWA) B FGGF3032K (FGGF3032KBA) POS. NO PART NO. DESCRIPTION 5303935326 Trim kit-door, 3 sided, white, w/tape 5303935324 Trim kit-door, 3 sided, black, w/tape 316566400 Glass Assembly, outer, white, w/badge 316566403 Glass Assembly, outer, black, w/badge 316402306 Shield, wool 316021109...
