Installation Notes

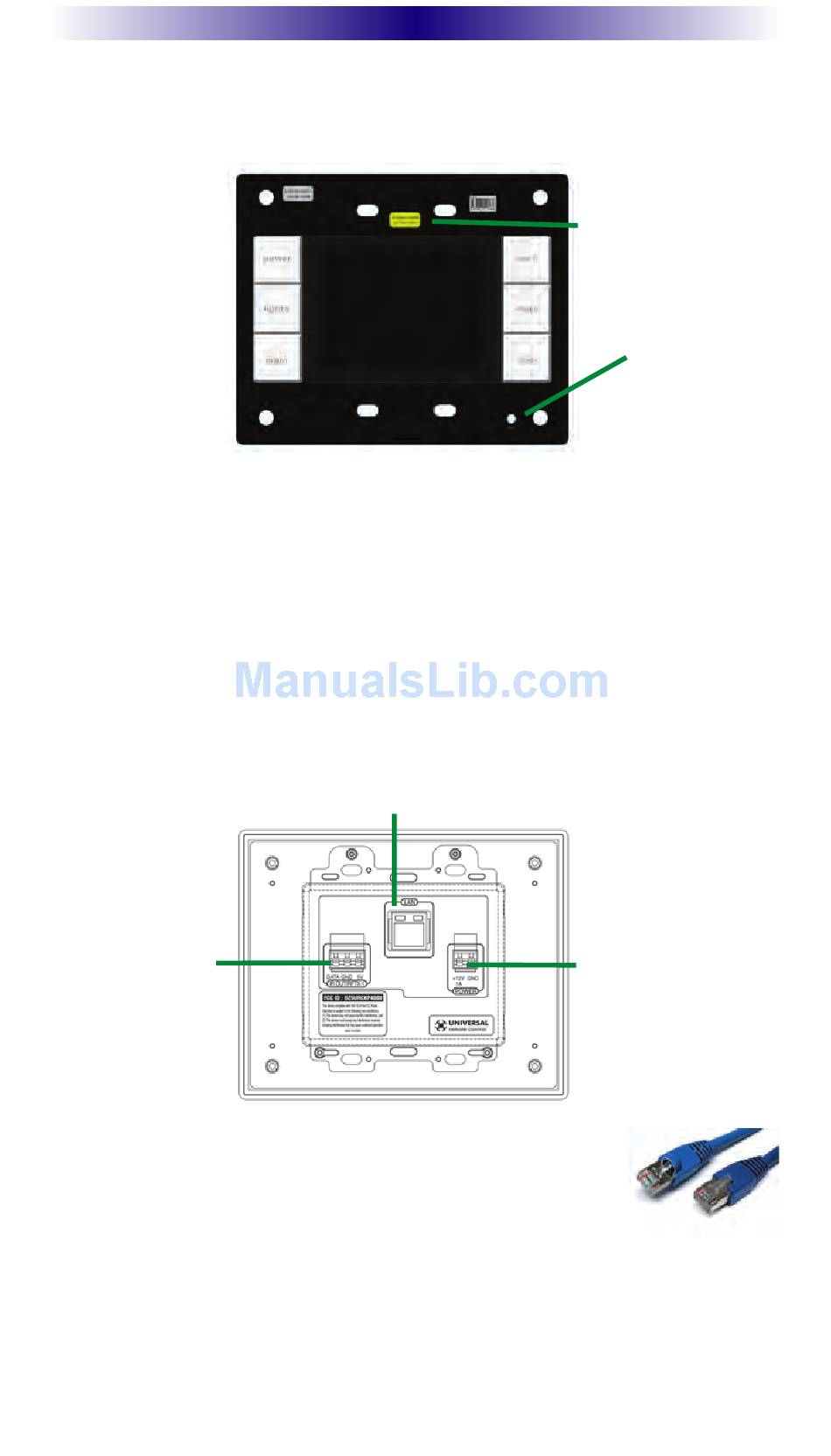

MAC Address Labels/Reset Button

The KP-4000 has a magnetic cover, simply pull it away from the
keypad's main body to remove.
Reset Button: Press this button to reset the keypad.
MAC address Labels: Tear off the 2nd label and stick it to your Job
Documentation indicating which room the KP-4000 is installed.
You'll need the MAC address when you program the KP-4000.

Connections

IR OUT/RFTX-1
(only required if
URC RF Lighting,
RF Base or a wired
emitter is needed)
In most installations, you will power the KP-4000
via a single CAT 5 cable connected to the network.
The KP-4000 is PoE, so you can power it from either
a PoE power injector or any PoE switch.
LAN PoE RJ-45: Plug an Ethernet RJ45 cable into a PoE switch or
PoE injector (available via the URC Toolbox) to power the KP-4000
or directly connect to a LAN Router if a Power Adapter has been
connected.
KP-4000 N
ETWORK
LAN PoE RJ-45
(Connects KP-4000 to Network)
Page 5
K
EYPAD
MAC Address Label
12V Power
(not required in a PoE
installation)
Reset Button
