In-Wall Installation

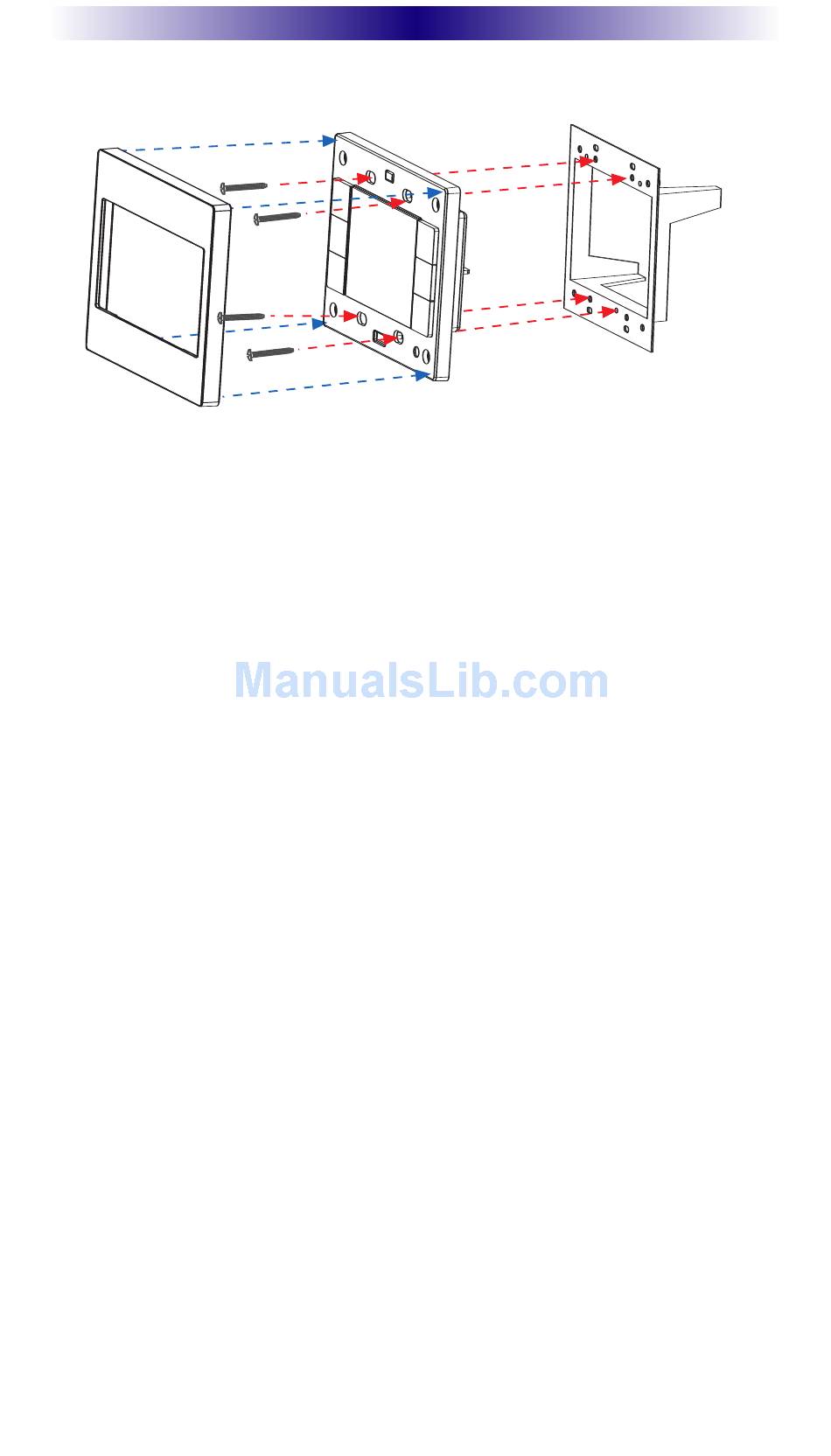

Magnetic
cover plate
1. The KP-4000 installs in a standard two gang box. If in a retrofit
installation, cut in and install a standard two gang p-ring or retro
fit box (not included) into the wall.
2. Make connections for IR Out/RFTX-1, LAN, or Power Supply. For
connections, refer to page 5.
3. Next, secure KP-4000 onto p-ring or retro fit box with the 4
included screws.
4. Finally attach the magnetic cover plate to the four screws secured
into the KP-4000.
KP-4000 N
ETWORK
KP-4000
Page 8
K
EYPAD
Two-Gang
Wall Box
