Network Requirements and Power Options

The KP-4000 must be connected to the same Local Area Network as
the MRX-1 to function correctly. Additionally, in order for your
client to enjoy internet features such as RSS feeds, the Local Area
Network must be connected to the Internet.
You have three options to power the KP-4000. The KP-4000 is a PoE
(power over ethernet) device and can be powered as shown by
either a PoE switch or a PoE injector (PoE injectors may be separate-
ly ordered from URC). This has the advantage that a single CAT 5
cable to the KP-4000 supplies all connections needed!
However, should you be installing a KP-4000 in a system where it is
convenient to run an additional two conductor wire to the KP-4000
for power, you may power a KP-4000 from any 12V wall adapter
with a 1 amp rating (12v wall adapters may be separately ordered
from URC).
Option 1: PoE Switch
KP-4000
1. Connect the CAT 5 cable (RJ45) to the LAN connection on the
rear of the KP-4000.
2. Plug the other end of the CAT 5 cable to the PoE switch (not
included), which will power the KP-4000 and ensure that the
PoE switch is properly configured and connected to the Router.

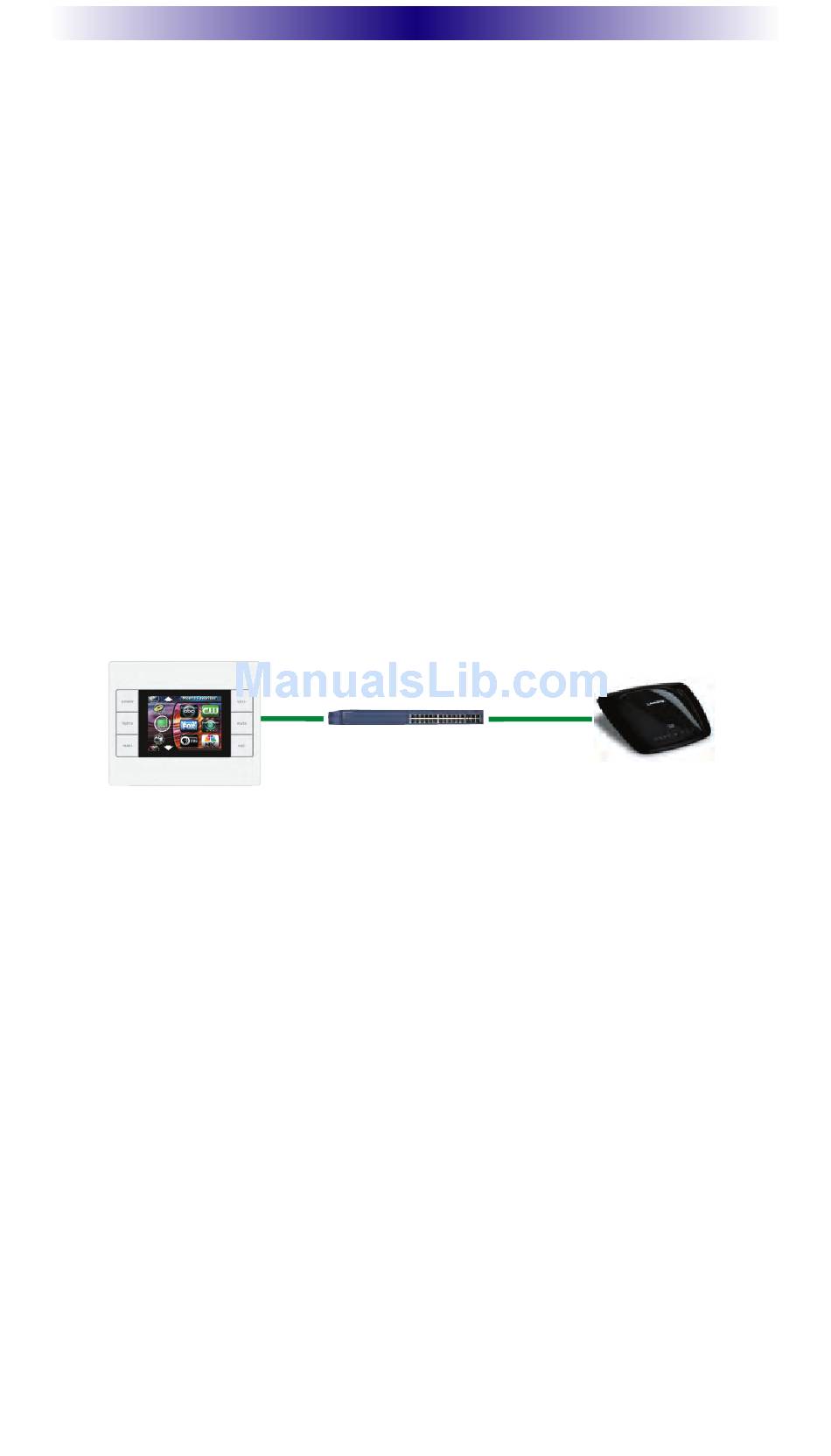

KP-4000 N
ETWORK
PoE Switch
(not included)
Page 3
K
EYPAD
Router
