TCX series Table of Contents Introduction ................................4 Thanks ................................... 4 Unpacking ................................4 Getting Started ................................. 5 Models covered by this Quick Start Guide ......................5 System Requirements ............................. 5 Amplifier Considerations ............................5 System Controllers ..............................5 Networking Capability with LMS series Controllers .................... 6 Mounting and Fixing .............................. - Page 3 8. Do not install near any ACCURACY IS NOT GUARANTEED. heat sources such as radiators, BEHRINGER, KLARK TEKNIK, MIDAS, heat registers, stoves, or other BUGERA, AND TURBOSOUND apparatus (including amplifiers) ARE PART OF THE MUSIC GROUP (MUSIC-GROUP.COM). that produce heat.
-
Page 4: Introduction
By engaging in an on-going rigorous program of research and development all TURBOSOUND products are carefully engineered for world class performance and reliability. If you would like further information about this or any other TURBOSOUND product, please contact us. Detailed product information is available on our website at: turbosound.com We look forward to helping you in the near future. -
Page 5: Getting Started

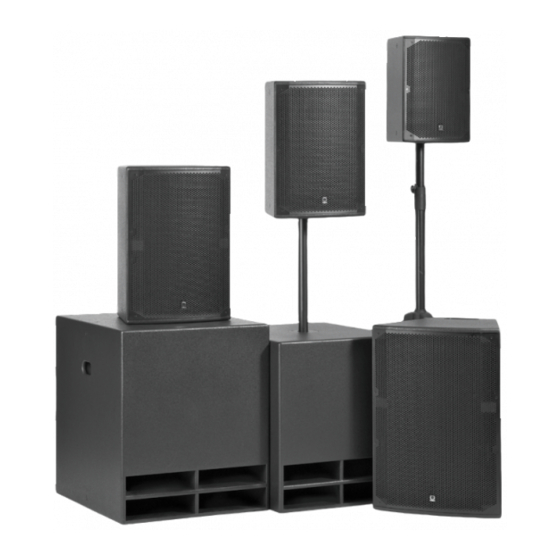

Models covered by this Quick Start Guide TCX-8, TCX-10, TCX-12, TCX-15, TCX-15B, TCX-18B Thank you for choosing a TURBOSOUND loudspeaker product for your application. If you would like further information about this or any other product, please visit our website turbosound.com. -
Page 6: Networking Capability With Lms Series Controllers
Networking multiple devices to a PC: BvNet is the method of connecting multiple devices and this is • done with the Linea Research USB & RS232 Interface (available from TURBOSOUND). The interface enables devices to be connected to a PC either using RS232 or using USB. EIA485 is the network protocol among the networked devices and is carried over CAT5-type cables. -
Page 7: Use With Speaker Poles And Speaker Stands
Quickstart Guide Use with Speaker Poles and Speaker Stands Use speaker poles such as the PA-90 or PA-100 on top of a bass cabinet to raise the mid/high cabinets to above head height for better audience coverage. For portable use remove the plastic bung covering the pole mount socket. -
Page 8: Omnimount Brackets
TCX series OmniMount Brackets The internal rigging points are also compatible with OmniMount series 120 wall and ceiling brackets. To mount TCX cabinets with OmniMount brackets follow the instructions provided with the brackets. Suspending with Eyebolts TCX cabinets can be suspended using optional eyebolts coupled to the internal rigging points provided on the top, bottom and sides and back. -
Page 9: Servicing And Driver Removal
Quickstart Guide Servicing and Driver Removal 1. Place the cabinet on its back on a suitable work surface. Remove the eight Pozidrive countersunk screws that hold the grille in place and set the grille aside (fig 1). 2. Remove the M5 hex head bass driver fixings screws (fig 2). 3. -
Page 10: Rotating The Hf Horn Pattern
5. Replace the grille and phase check the cabinet before use. EASE Data EASE data is available for TCX series loudspeakers to enable software simulation of audio coverage installation projects. Please visit turbosound.com for a free EASE data download. Technical Specifications Model... -
Page 11: Spare Parts
2. Malfunction. Should your MUSIC Group Authorized Reseller not be located in your vicinity, you may contact the MUSIC Group Authorized Fulfiller for your country at turbosound.com. If your country is not listed please contact the “United Kingdom (TURBOSOUND main office)” located under “Contact Us” on the turbosound.com website. The warranty eligibility will be verified from the original sales receipt. - Page 12 Turbosound Units 1 – 6 Star Road, Partridge Green West Sussex RH13 8RY England t. +44 (0)1403 711447 turbosound.com...
