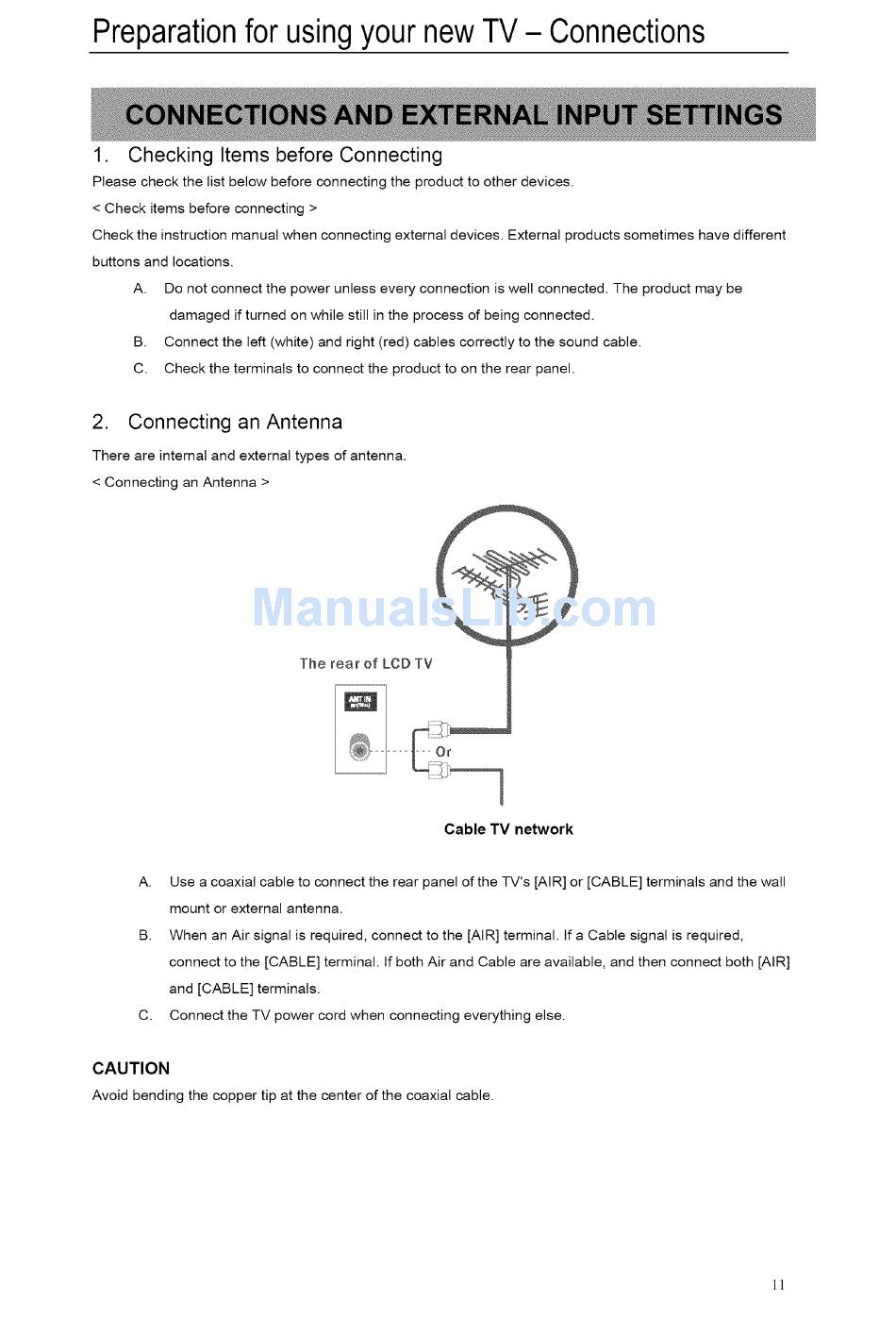

Preparation for usingyour newTV - Connections
1.
Checking
Items before Connecting
Please check the list below before connecting
the product
to other devices.
< Check items before connecting
>
Check the instruction
manual when connecting
external
devices.
External products sometimes
have different
buttons and locations.
A.
Do not connect
the power unless every connection
is well connected.
The product
may be
damaged
if turned on while still in the process
of being connected.
B.
Connect
the left (white) and right (red) cables correctly
to the sound cable.
C.
Check the terminals
to connect
the product
to on the rear panel.
2.
Connecting
an Antenna
There are internal and external types of antenna.
< Connecting
an Antenna
>
The rear of LCD TV
Cable TV network
A.
Use a coaxial cable to connect the rear panel of the TV's [AIR] or [CABLE] terminals
and the wall
mount or external antenna.
B.
When an Air signal is required,
connect
to the [AIR] terminal.
If a Cable signal is required,
connect
to the [CABLE] terminal.
If both Air and Cable are available,
and then connect
both [AIR]
and [CABLE]
terminals.
C.
Connect
the TV power cord when connecting
everything
else.
CAUTION
Avoid bending the copper tip at the center of the coaxial cable.
]]
