Summary of Contents for Genie SUPER HOIST

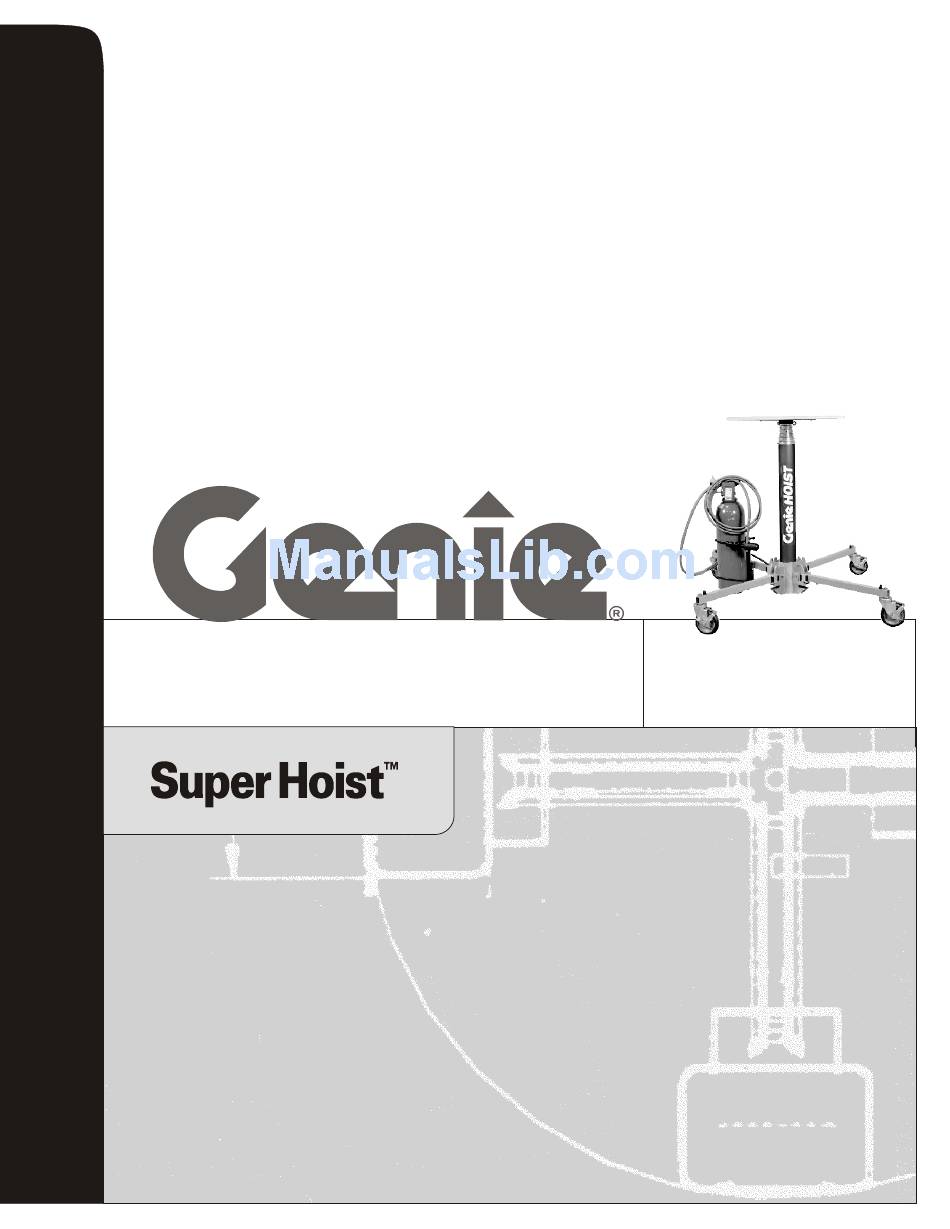

- Page 1 Operator’s Manual Fourth Edition Second Printing with Maintenance Schedule Part No. 82297...
-
Page 2: Table Of Contents
Contact us: Copyright © 1993 by Genie Industries Fourth Edition: Second Printing, December 2003 Internet: http://www.genielift.com "Genie" is a registered trademark of Genie e-mail: techpub@genieind.com Industries in the USA and many other countries. Printed on recycled paper Printed in U.S.A. -
Page 3: Safety Rules
You read, understand and obey employer's safety rules and worksite regulations. You read, understand and obey all applicable governmental regulations. You are properly trained to safely operate the machine. Part No. 82297 Genie Super Hoist... - Page 4 Keep away from the machine if it contacts energized power lines or becomes electrically charged. Do not raise the platform in strong or gusty winds. Increasing the load surface area will decrease machine stability in windy conditions. Genie Super Hoist Part No. 82297...
- Page 5 Do not unplug the hose and hand control with a load on the platform. Be aware of the position of the hose and hand control and protect it from puncture, crushing and severing. Part No. 82297 Genie Super Hoist...
-
Page 6: Pre-Operation Inspection
3 Always perform function tests prior to use. 4 Inspect the workplace. 5 Only use the machine as it was intended. Genie Super Hoist Part No. 82297... - Page 7 Visually inspect all machine components. o Platform and T-nut o CO tank, CO tank bracket and pressure regulator o Hose and hand control o Cylinder assembly o Base, legs, leg locks, leg lock springs and casters Part No. 82297 Genie Super Hoist...
-
Page 8: Function Tests
After repairs are completed, the operator must perform a pre-operation inspection and function tests again before putting the machine into service. Genie Super Hoist Part No. 82297... - Page 9 Result: The platform should descend at a result in death or serious injury. smooth, controlled rate. Use only Genie approved 12 Raise the platform again and then lower it by replacement parts. opening the manual dump valve on top of the 7 Connect the hose and hand control by inserting hand control.
-
Page 10: Workplace Inspection
It is the operator's responsibility to read and remember the workplace hazards, then watch for and avoid them while moving, setting up and operating the machine. Genie Super Hoist Part No. 82297... -
Page 11: Operating Instructions
That means every new operator should perform a pre- operation inspection, function tests and a workplace inspection before using the machine. Part No. 82297 Genie Super Hoist... - Page 12 3 Select a safe storage location that is weather protected and away from traffic. Preferably, store the machine standing up on its base to preserve smooth operation and prolong the life of the seals. Genie Super Hoist Part No. 82297...
-
Page 13: Maintenance Schedule
Inspect the leg locks to be sure that they move freely and the springs function properly through their entire range of motion. Inspect the casters and the caster brakes. Monthly Visually inspect the felt wipers. Remove debris and clean as necessary. Part No. 82297 Genie Super Hoist... -
Page 14: Decals
Below is a numerical list with quantities and descriptions. Part No. Description Quantity 32305 Warning - Machine Safety 38149 Label - Patents 52980 Cosmetic - Genie Super Hoist 82960 Warning - Machine Safety 38149 52980 32305 or 82960 Serial Plate Genie Super Hoist Part No. -
Page 15: Specifications
69 lbs 31 kg Recommended psi 85 psi 5.86 bar Recommended psi 85 psi 5.86 bar Continuous improvement of our products is a Genie policy. Product specifications are subject to change without notice or obligation. Part No. 82297 Genie Super Hoist... - Page 16 Genie North America Phone 425.881.1800 Toll Free USA and Canada 800.536.1800 Fax 425.883.3475 Genie Australia Pty Ltd. Phone +61 7 3375 1660 Fax +61 7 3375 1002 Genie China Genie Scandinavia Phone +86 21 53852570 Phone +46 31 3409612 Fax +86 21 53852569...
