Genie GS-2668 RT Service Manual
  1. Manuals
  2. Brands
  3. Genie Manuals
  4. Lifting Systems
  5. GS-2668 RT
  6. Service manual

Genie GS-2668 RT Service Manual

Hide thumbs Also See for GS-2668 RT:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
Service Manual
Par ts Manual
GS-2668 RT
GS-3268 RT
Serial Number Range
Serial Number Range
from GS6805-44771
from GS6805-44771
Part No. 112657
Rev C2
July 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS-2668 RT and is the answer not in the manual?

Questions and answers

Metin
May 13, 2025

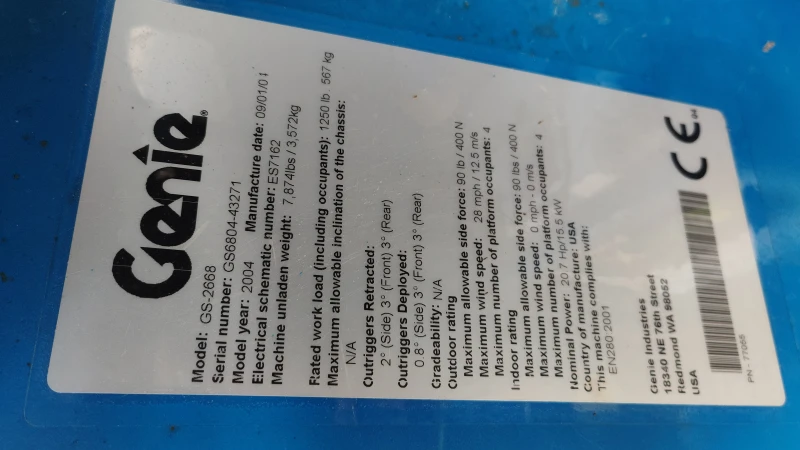

Hello. I have a gs 2668.genie scissor sporty. Somehow. The system is not activated, please help.
