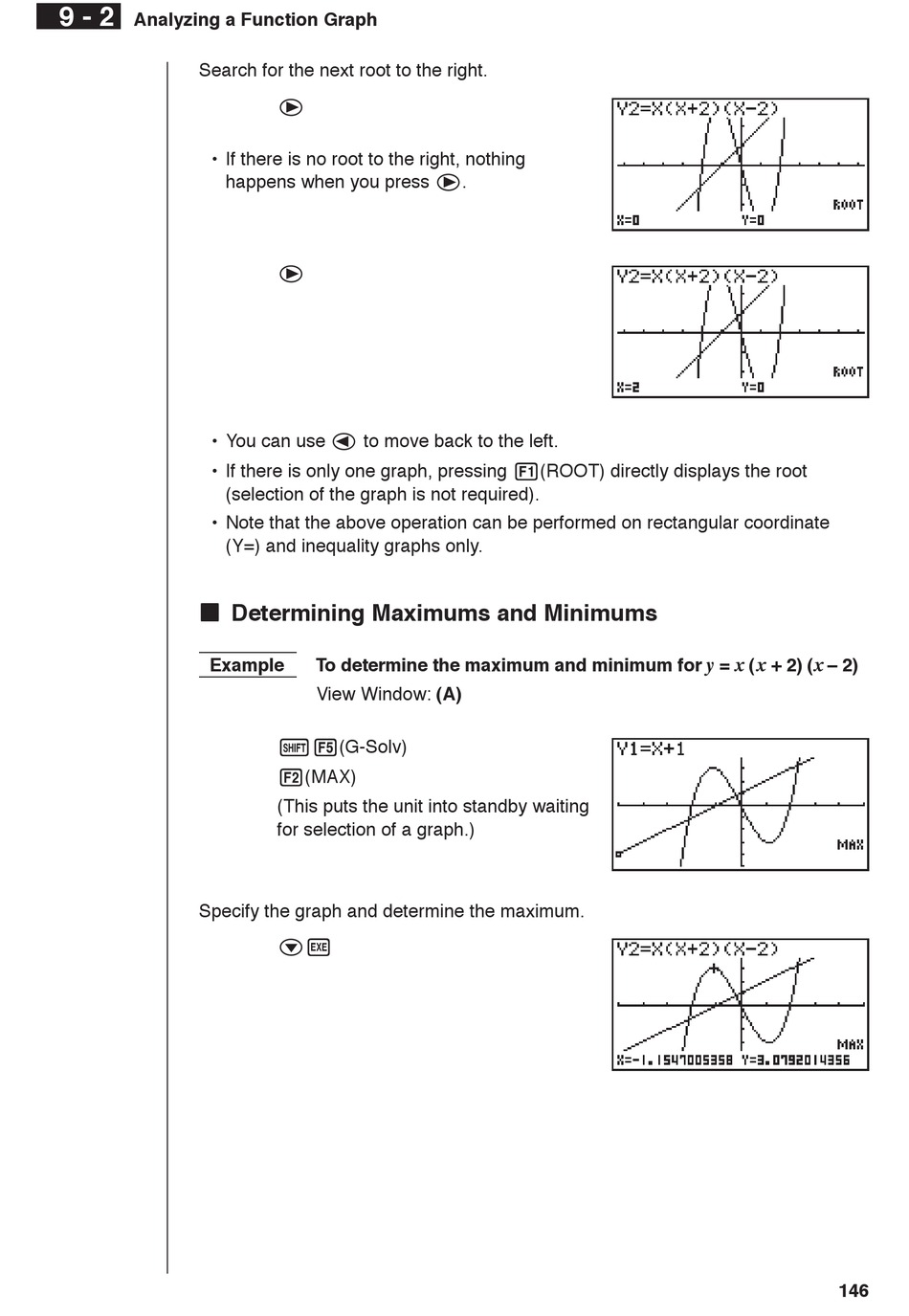

Casio CFX-9970G User Manual page 170

9 - 2
Analyzing a Function Graph
Search for the next root to the right.
• If there is no root to the right, nothing
happens when you press e.
• You can use d to move back to the left.
• If there is only one graph, pressing 1(ROOT) directly displays the root
(selection of the graph is not required).
• Note that the above operation can be performed on rectangular coordinate
(Y=) and inequality graphs only.
k k k k k Determining Maximums and Minimums
Example
Specify the graph and determine the maximum.
e
e
To determine the maximum and minimum for
View Window: (A)
!5(G-Solv)
2(MAX)
(This puts the unit into standby waiting
for selection of a graph.)
cw
y x x x
= ( + 2) ( – 2)
146
