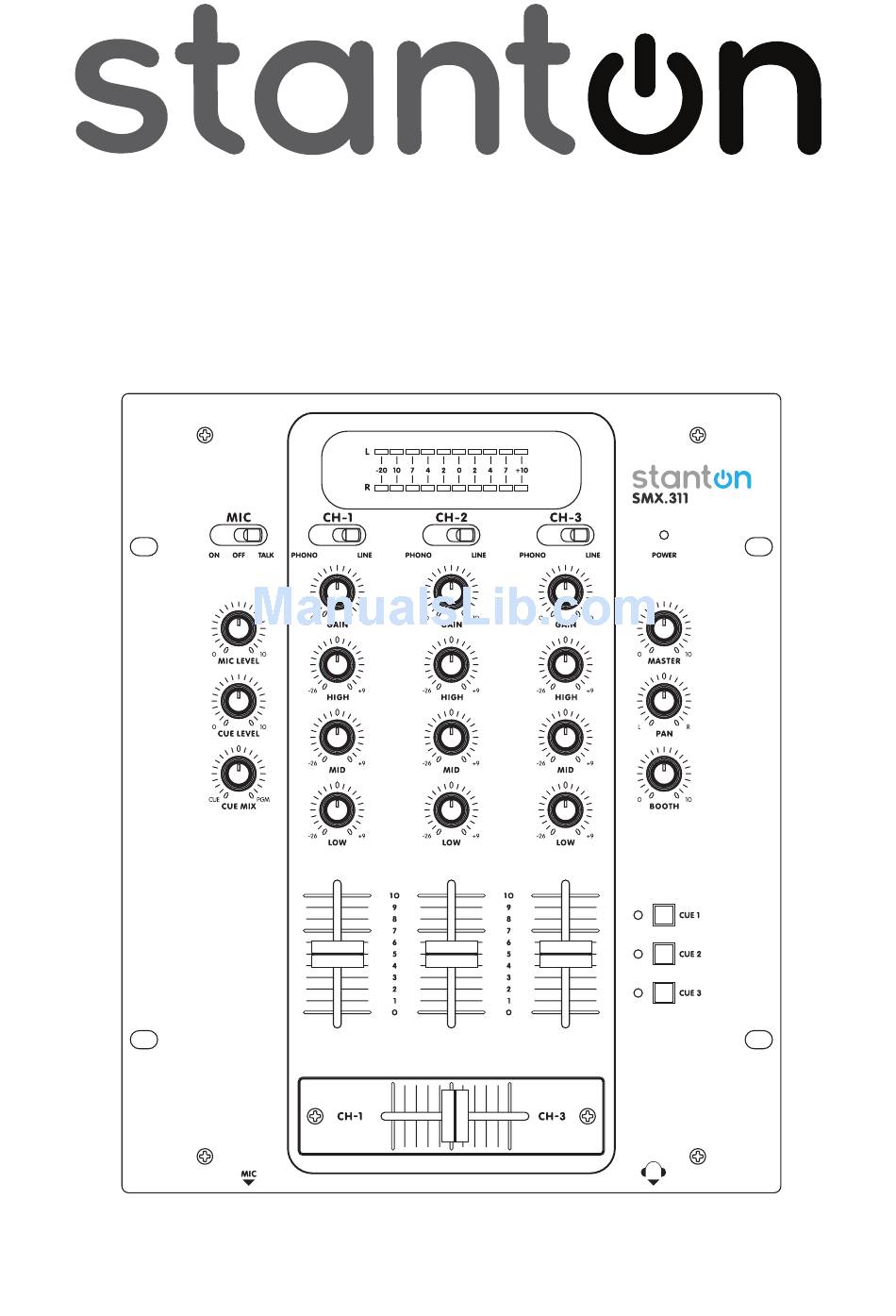

- Page 1 SMX.311 ProfeSSional Table ToP CD MiXer User Manual...
-
Page 2: Important Safety Instructions
important Safety instructions 1. read instructions – All the safety and operating instructions should be read before this product is operated. 2. retain instructions – The safety and operating instructions should be retained for future reference. 3. Heed Warnings – All warnings on the appliance and in the operating instructions should be adhered to. 4. -
Page 3: Table Of Contents
2. Quick Setup Diagram ..............................2 3. SMX.311 Description ..............................3 3.1. Top Panel ..................................3 3.2. Rear Panel ..................................5 3.3. Front Panel ..................................6 4. Troubleshooting ................................7 registration Card ................................8 Stanton Warranty ................................9 Specifications ................................... 10... -
Page 4: Introduction

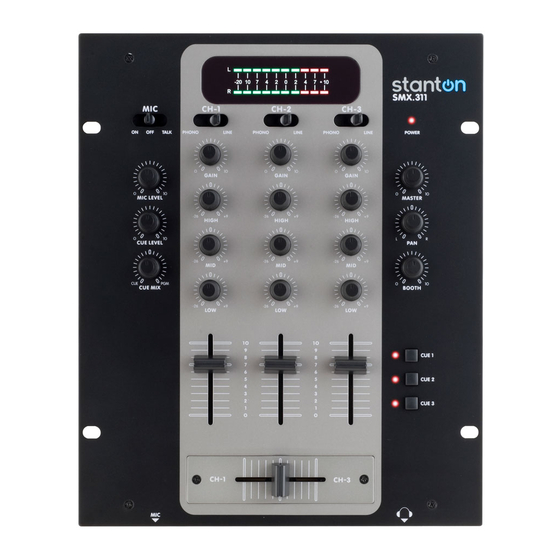

introduction introduction Welcome to the SMX.311! Thank you for purchasing the SMX.311. Before starting, please check that you have received the following items: • SMX.311 unit • AC Adaptor • User Manual Now that you have checked that everything was included in the box, let’s talk about the SMX.311. overview The SMX.311 is a compact 3-channel mixer that offers high-end performance at a low cost. -
Page 5: Quick Setup Diagram
Quick Setup Diagram Quick Setup Diagram Review this setup diagram. (Figure 2.1) Make sure all faders are at "zero" and all devices are OFF. First, connect all input sources and processors. Next, connect your microphone and monitor headphones. Finally, connect the stereo outputs to the power amplifier(s) and/or audio receivers such as tape decks. -
Page 6: Smx.311 Description
SMX.311 Description (Top Panel) SMX.311 Description Top Panel (Figure 3.1) Figure 3.1... - Page 7 SMX.311 Description (Top Panel) 1. Mic on/off/TalK Switch: Turns the Mic ON or OFF. When the switch is in the TALK position, the mixer’s sound level will decrease around 14 dB (except the Mic channel) so that the microphone is more clearly heard over the music. 2.
-
Page 8: Rear Panel
RIAA phono pre-amplifiers. Only connect turntables here. Line level sources will overload the sensitive phono pre-amps and will cause distortion. 24. gnD: To eliminate electrical hum, connect the ground cable from your standard turntable ground post to the SMX.311 ground terminal. Some turntables (like the Stanton STR8.150) do not require a grounding wire. -
Page 9: Front Panel
SMX.311 Description (front Panel) front Panel (Figure 3.3) Figure 3.3 25. Microphone input (Mic): Connect a standard unbalanced (1/4") microphone. 26. Headphone output: Standard 1/4” headphone output connector. -
Page 10: Troubleshooting
Troubleshooting Troubleshooting Problem / Symptom Possible Cause / Solution no Sound. Is the power ON? Based on your connections, check that you have properly set the Channel Input (Phone-Line). Make sure that the Input Gain, Channel Fader, and Master output are turned up. -
Page 11: Registration Card
Return Authorization Number (RA#) PRIOR to shipping your product to us. Warranty Service outside the United States: To initiate a warranty repair, please contact the authorized Stanton dealer from whom you purchased your product, and follow the dealer’s return policy. -
Page 12: Stanton Warranty
Stanton dealer's return policy. Stanton assumes no risk and shall be subject to no liability for damages or loss resulting from the specific use or application made of the merchandise. Stanton's liability for any claim, whether based on breach of contract, negligence, infringement of any rights of any party, or product liability, and relating to the merchandise shall not exceed the price received by Stanton from your purchase of such merchandise. -
Page 13: Specifications
Specifications Specifications input / output impedance & sensitivity: Line 47k ohm /-14 dBV +/-0.1 dB (200mV) Phono 47k ohm /-50 dBV +/-0.1 dB (3.16mV) 10k ohm /-54 dBV +/-0.1 dB (2mV) Master 1k ohm /0 dB (1V) +/-2 dB Master Bal (Load=600 ohm) 600 ohm /+4 dBm (1.23V) +/-2 dB Phones (Load=32 ohm) 33 ohm / 0 dBV (1V) +/- 2 dB... - Page 14 notes...
- Page 15 notes...
- Page 16 SMX.311 and STR8.150, are trademarks or registered trademarks of the Stanton Group. All other trademarks are property of their respective owners, who are in no way affiliated with Stanton DJ or SC System products. All information included in the User Manual is subject to change without notice.
