Hard Disk Drive

Installation Instructions

HDD PART NUMBER
70043501

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C5300n and is the answer not in the manual?

Questions and answers

Related Manuals for Oki C5300n

Summary of Contents for Oki C5300n

  • Page 1: Hard Disk Drive

    Hard Disk Drive Installation Instructions HDD PART NUMBER 70043501...
  • Page 2 Mention of software products manufactured by other companies does not necessarily constitute endorsement by Oki Data. © 2003 by Oki Data Americas, Inc. All rights reserved. Written and produced by the Oki Data Training & Publications Department. Please address any...

  • Page 3: Prepare The Printer

    Prepare the Printer 1. Turn off the printer and unplug the power cord. 2. Detach the interface cable from the back of the printer. 3. Open the top cover.
  • Page 4 4. Loosen the thumbscrew holding the printer side cover in place. 5. Open the front cover.
  • Page 5 6. Remove the side panel from the printer.

  • Page 6: Install The Hard Disk Drive

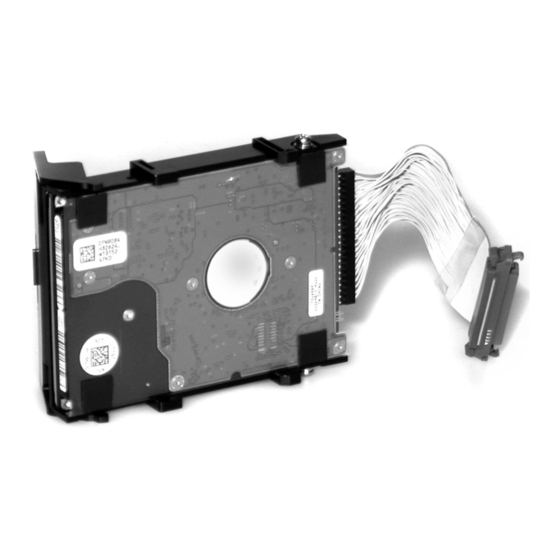

    Install the Hard Disk Drive (HDD) 1. Locate the drive connector (1) on the control board: 2. Remove the HDD from its shipping package.
  • Page 7 3. Insert the HDD cable firmly into the connector.
  • Page 8 4. Mount the HDD: place the HDD in the slots on the bracket, then push the handle against the HDD to lock it in place.

  • Page 9: Complete The Installation

    Complete the Installation 1. Replace the side panel on the printer and secure it in place with the thumbscrew. 2. Close the front cover and the top cover. 3. Reattach the interface cable, then plug the power cord into the power outlet and turn on the printer.

  • Page 10: Check For Proper Installation

    Check for Proper Installation Generate a MenuMap printout: N INE NTER ANCEL 1. Press one or more times until appears on the display. INFORMATION MENU 2. Press twice. ENTER The MenuMap prints. 3. Check the top of the MenuMap printout to verify that it shows “HDD installed.”...
  • Page 11 Activate the Hard Disk in the Print Driver Windows ® Postscript Emulation Driver → → Start Settings Printers Printers 1. Click and Faxes for XP]. The Printers [Printers and Faxes] dialog box opens. 2. Right click the Postscript emulation printer Properties name, then click Device...
  • Page 12 PCL Driver → → Start Settings Printers Printers 1. Click and Faxes for XP]. The Printers [Printers and Faxes] dialog box opens. 2. Right click the PCL printer name, then click Properties Device Option(s) 3. Click the tab. Printer Hard Disk 4.
  • Page 13 OS X to X.1 No activation is required. OS X.2 Print Center Local Hard Drive 1. Activate from → → → Application Utilities Print Center 2. Highlight the printer name and select from the → Printers Show Info menu Hard Disk 3.

  • Page 14: Limited Warranty

    Limited Warranty. Oki Data will repair (or at its option, replace) at no charge, any defective part(s) of the OPTION for one (1) year from the date of purchase. This Limited Warranty extends to the original pur- chaser only.
  • Page 15 PRODUCT. Some states do not allow the exclu- sion or limitation of incidental or consequential damages, so the above exclusion may not apply to you. Additional information on obtaining service under this Limited Warranty is available by con- tacting the Oki Data dealer from whom the prod-...
  • Page 16 This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. For the most up-to-date listing of Oki Data authorized Service Centers, call 1-800-654-3282 (1-800-OKI-DATA). Oki Data Service Depot...
  • Page 17 Mexico Oki Data de Mexico, S.A. de C.V. Mariano Escobedo No. 748 - 8 Piso Col Anzures, e.p. 11590 Mexico, DF Tel: (525) 263-8780 Fax: (525) 263-8785 Brazil Oki Data do Brasil, Ltda. Rua Alexandre Dumas, 2220 - 8 andar Chácara Sto Antonio...
  • Page 19 OKI is a registered trademark/marque déposée/ marca registrada Oki Electric Industry Company, Ltd. Macintosh is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. Windows and Windows NT are either registered trademarks or trademarks of Microsoft Corporation...
  • Page 20 Oki Data Americas, Inc. 2000 Bishops Gate Blvd. Mt. Laurel, NJ 08054-4620 Phone: (800) 654-3282 FAX: (856) 222-5320 www.okidata.com my.okidata.com 59351001...
