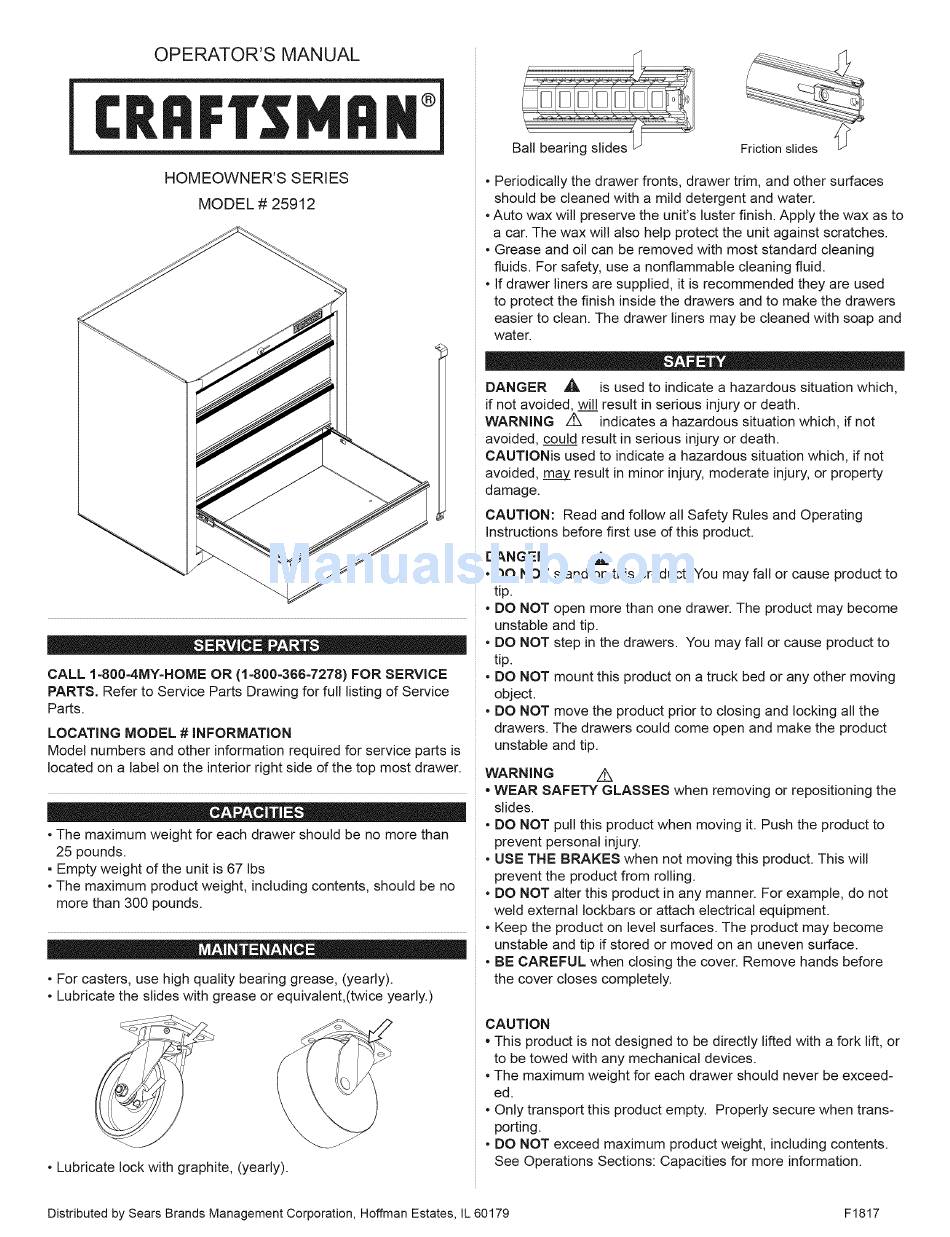

OPERATOR'S
MANUAL
RnFrSMRN
HOMEOWNER'S
SERIES
MODEL # 25912
CALL 1=800-4MY=HOME OR (1=800-366-7278)
FOR SERVICE
PARTS. Refer to Service Parts Drawing for full listing of Service
Parts.
LOCATING MODEL # iNFORMATION
Model numbers and other information required for service parts is
located on a label on the interior right side of the top most drawer.
• The maximum weight for each drawer should be no more than
25 pounds.
- Empty weight of the unit is 67 Ibs
• The maximum product weight, including contents, should be no
more than 300 pounds.
• For casters, use high quality bearing grease, (yearly).
• Lubricate the slides with grease or equivalent,(twice
yearly.)
• Lubricate lock with graphite, (yearly).
Ball bearing slides
Friction slides
!Lib
• Periodically the drawer fronts, drawer trim, and other surfaces
should be cleaned with a mild detergent and water.
• Auto wax will preserve the unit's luster finish. Apply the wax as to
a car. The wax will also help protect the unit against scratches.
• Grease and oil can be removed with most standard cleaning
fluids. For safety, use a nonflammable cleaning fluid.
• If drawer liners are supplied, it is recommended
they are used
to protect the finish inside the drawers and to make the drawers
easier to clean. The drawer liners may be cleaned with soap and
water.
DANGER
_,
is used to indicate a hazardous situation which,
if not avoided, will result in serious injury or death.
WARNING
z_
indicates a hazardous situation which, if not
avoided, could result in serious injury or death.
CAUTIONis used to indicate a hazardous situation which, if not
avoided, _
result in minor injury, moderate injury, or property
damage.
CAUTION:
Read and follow all Safety Rules and Operating
instructions before first use of this product.
DANGER
_,
• DO NOT stand on this product. You may fall or cause product to
tip.
• DO NOT open more than one drawer. The product may become
unstable and tip.
• DO NOT step in the drawers. You may fall or cause product to
tip.
• DO NOT mount this product on a truck bed or any other moving
object.
• DO NOT move the product prior to closing and locking all the
drawers. The drawers could come open and make the product
unstable and tip.
WARNING
z_
• WEAR SAFETY GLASSES
when removing or repositioning the
slides.
• DO NOT pull this product when moving it. Push the product to
prevent personal injury.
• USE THE BRAKES when not moving this product. This will
prevent the product from rolling.
• DO NOT alter this product in any manner. For example, do not
weld external Iockbars or attach electrical equipment.
• Keep the product on level surfaces. The product may become
unstable and tip if stored or moved on an uneven surface.
• BE CAREFUL when closing the cover. Remove hands before
the cover closes completely.
CAUTION
• This product is not designed to be directly lifted with a fork lift, or
to be towed with any mechanical devices.
• The maximum weight for each drawer should never be exceed-
ed.
• Only transport this product empty. Properly secure when trans-
porting.
• DO NOT exceed maximum product weight, including contents.
See Operations Sections: Capacities for more information.
Distributed
by Sears Brands Management Corporation,
Hoffman Estates, IL 60179
