GE Monogram ZV370YSS Dimensions And Specifications page 3

Monogram. ™
ZV370YSS—30" Professional Vent Hood
Dimensions and Specifications (in inches)
Hood
Width
No Additional
Wall Studs needed
Hood
Width
Created 1/98
7" Min.
Plywood Sheet
(Wall Hole Cut
Out x Drywall
Thickness)
7" Min.
Additional
Wall Studs
Installed
Centerline of
Installation
Space

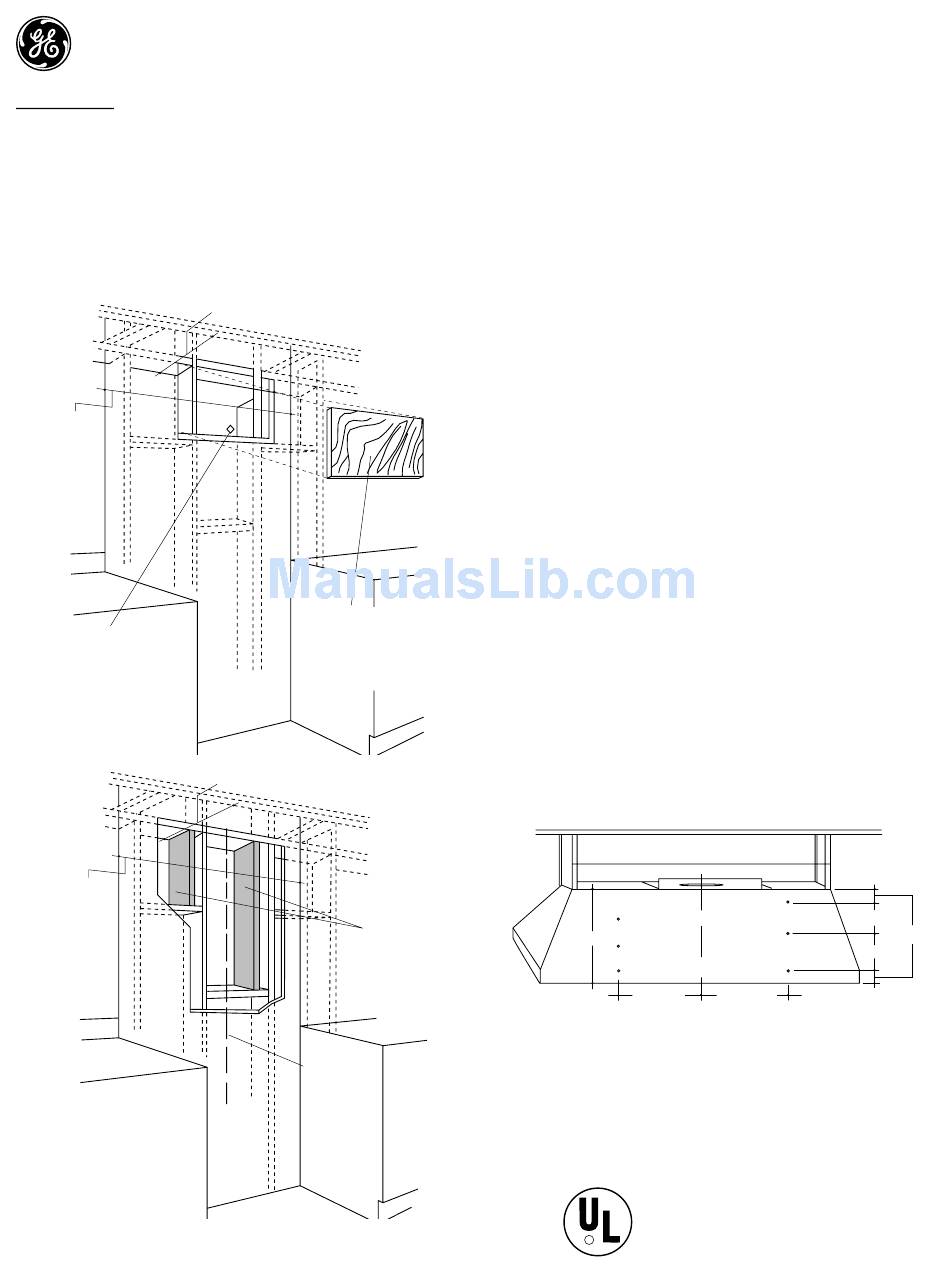

Wall Mount Framing:
Note: A decorative duct cover is available for wall mount
installations. The duct cover conceals the duct run from
the top of the hood to the ceiling. Choose the 6" or 12"
cover based upon installation height of the vent hood.
We recommend that the vent hood and decorative duct
cover be on site before final framing and wall finishing in
order to accurately locate the ductwork and electrical
service.
• Determine the location for installation.
• Mark the centerline of the installation.
Cut a sheet of plywood 30" wide and 18" high. If drywall
is installed, cut away enough to expose two vertical
studs, one on each side of the cutout. Secure the plywood
to the studs.
• Install additional aligning wall studs as illustrated.
Rear View of Vent Hood
Hood Centerline
18"
C L
8-15/16" 8-15/16"
For answers to your Monogram,
Performance Series, ™ GE Profile,
Hotpoint and RCA appliance questions, call
GE Answer Center ® service, 800.626.2000.
Listed by
Underwriters
Laboratories
R
Ceiling Drywall
6" or 12"
Duct
Cover
6-1/2"
2-1/2"
6-1/2"
