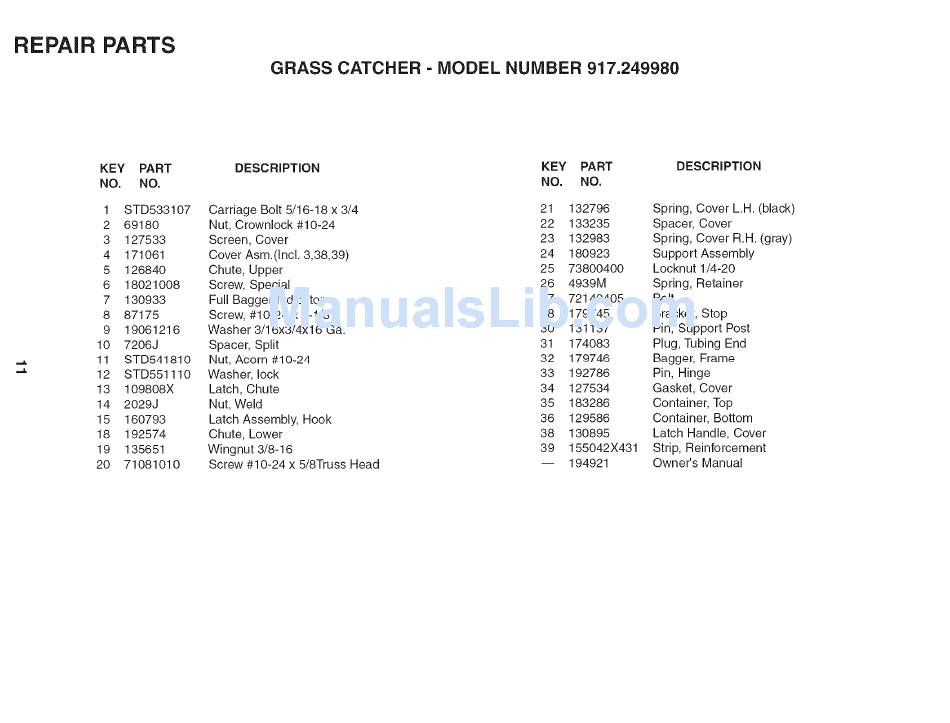

REPAIR PARTS
GRASS CATCHER
- MODEL NUMBER
917.249980
KEY
PART
NO.
NO.
1
STD533107
2
69180
3
127533
4
171061
5
126840
6
18021008
7
130933
8
87175
9
19061216
10
7206J
11
STD541810
12
STD551110
13
109808X
14
2029J
15
160793
18
192574
19
135651
20
71081010
DESCRIPTION
KEY
PART
NO.
NO.
Carriage Bolt 5/16-18 x 3/4
21
132796
Nut, Crownlock #10-24
22
133235
Screen, Cover
23
132983
Cover Asm.(Incl. 3,38,39)
24
180923
Chute, Upper
25
73800400
Screw, Special
26
4939M
Full Bagger Indicator
27
72140405
Screw, #10-24 x 1-1/8
28
179745
Washer 3/16x3/4x16 Ga.
30
131137
Spacer, Split
31
174083
Nut, Acorn #10-24
32
179746
Washer, lock
33
192786
Latch, Chute
34
127534
Nut, Weld
35
183286
Latch Assembly, Hook
36
129586
Chute, Lower
38
130895
Wingnut 3/8-16
39
155042X431
Screw #10-24 x 5/8Truss Head
--
194921
DESCRIPTION
Spring, Cover L.H. (black)
Spacer, Cover
Spring, Cover R.H. (gray)
Support Assembly
Locknut 1/4-20
Spring, Retainer
Bolt
Bracket, Stop
Pin, Support Post
Plug, Tubing End
Bagger, Frame
Pin, Hinge
Gasket, Cover
Container, Top
Container, Bottom
Latch Handle, Cover
Strip, Reinforcement
Owner's Manual
