Envision EN7220 User Manual

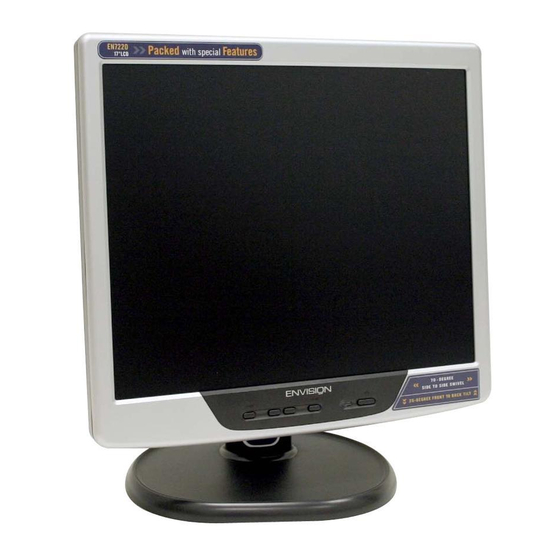

17” lcd monitor
Hide thumbs Also See for EN7220:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
EN7220
EN7220
17" LCD Monitor
User's
Manual
By Envision Peripherals,
Inc.
www.ENVISIONdisplay.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EN7220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Envision EN7220

Summary of Contents for Envision EN7220

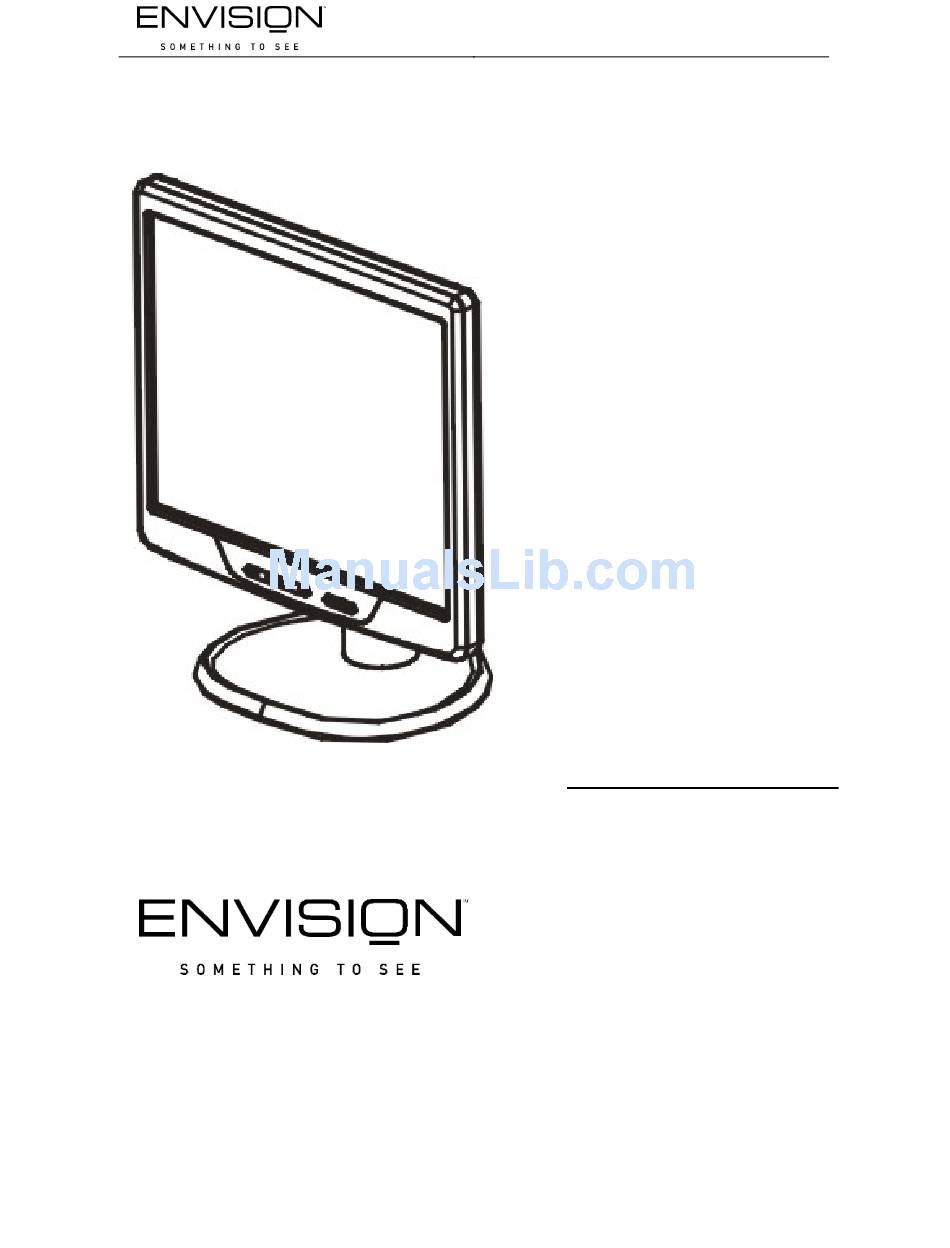

  • Page 1 EN7220 EN7220 17” LCD Monitor User’s Manual By Envision Peripherals, Inc. www.ENVISIONdisplay.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Table of Contents For Your Safety Precautions General Notes Before You Operate The Monitor Installation Instructions Operating Instructions Technical Support (FAQ) Appendix EN7220 7-13 14-19 20-21 22-25...

  • Page 3: For Your Safety

    NERGY WARNING: To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerously high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.

  • Page 4: Precautions

    Use only a cart or stand recommended by the manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.

  • Page 5: General Notes

    You may find slightly uneven brightness on the screen depending on the desktop pattern you use. The LCD panel used in this monitor is a very high technology product with 3,932,160 thin film transistors giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue, white or black.

  • Page 6: General Notes

    This monitor is equipped with VESA DDC1/2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.

  • Page 7: Before You Operate The Monitor

    CHECKING THE CONTENTS OF THE PACKAGE The product package should include the following items: Monitor CD (Manual & Drivers) Accessory Cup x 2 Base Quick Start Guide (QSG) 15-pin D-Sub Cable Accessory Clip x 2 Warranty Booklet EN7220 Power Cord...

  • Page 8: Installation Instructions

    Figure 1 - Installing the Base. INSTALLING THE BASE Set the bottom base on a flat surface. Line up the front of the monitor with the front of the base and press firmly. Remove Pin Figure 2 - Installing the Base.
  • Page 9 EN7220 INSTALLATION INSTRUCTIONS (Cont) POWERCORD Power Source:...
  • Page 10 1. Connect the female end of the AC power cord to the AC-in port on the back of the monitor. Connect the other end to a nearby AC-outlet. 3. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer’s D-Sub port.
  • Page 11 This is a Plug & Play monitor. Microsoft Windows will automatically install a Plug & Play driver for it when you first install this monitor. It is not necessary to install the INF driver file included in the floppy diskette or CD if Microsoft Windows successfully installed a Plug &...
  • Page 12 INSTALLATION INSTRUCTIONS (cont) Height, Tilt, Pivot & Swivel Adjustment Your monitor features a multi-adjustable stand that will enable it move 110mm up/down (height adjustment), 25 degree forward/backward (tilt adjustment), 90 degree landscape/portrait (pivot adjustment) and 70 degree side/side (swivel adjustment). To make an adjustment, grasp the monitor with both hands on the right and left edge of the casing and move it to the desired position.
  • Page 13 2. Remove the 2 screws that hold the plastic hinge cover. 3. Remove the plastic hinge cover. 4. Remove the small plastic cover. It is attached to the back of the monitor by hooks. 5. Remove the large plastic cover. It is attached to the back of the monitor by hooks.

  • Page 14: Installation Instructions

    NOTE The Envision EN7220 is in compliance with the most current revision of the VESA 75mm Flat Panel Monitor Physical Mounting Interface (FPMPMI standard). Visit our Monitor Accessories website at www.ENVISONdisplay.com/accessories.html to purchase a wall mount...

  • Page 15: Operating Instructions

    2. LED 3. MENU / ENTER Button Power Button: Press this button to turn the monitor ON or OFF. MENU / ENTER: This button will activate the OSD menu when OSD is OFF or activate/de-activate an adjustment function when OSD is ON or Exit OSD menu when in brightness or contrast Adjust OSD status.
  • Page 16 Off mode. Osd-Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor is off and then press power button to turn the monitor on.
  • Page 17 4. To exit and save, select the exit function. If you want to adjust any other function, repeat steps 2-3. Figure 4 to activate it. < > again to navigate The OSD Message EN7220 If the...
  • Page 18 Temperature from be set to Cool. EEPROM. The User R/G/B Recall Cool Color value(default is Temperature from 100) will not be EEPROM. Modified by Reset Red Gain from function. Digital-register. Green Gain Digital-register. Blue Gain from Digital-register. EN7220 Reset Value...
  • Page 19 English. English. Set OSD display language to German. Set OSD display language to French. Set OSD display language to Spain. Set OSD display language to Italian. Set OSD display language to Simplified Chinese. EN7220 Reset Value...
  • Page 20 Icon Show the resolution, H/V frequency and input port of current iput timing. Clear each old status of Auto- configuration and set the color temperature to Cool. Do not execute reset, return to main menu. Exit OSD EN7220 Reset Value...

  • Page 21: Technical Support (Faq)

    *Adjust pixel frequency (CLOCK) and FOCUS or press hot-key (AUTO) *Adjust RGB color or select color temperature *Use win 95/98 shut-down mode Adjust CLOCK and FOCUS or perform hot- key (AUTO-key). EN7220...
  • Page 22 Check the signal -cable connection pins for damage. INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode. Set the computer to a display mode given in the Preset Display Modes table. EN7220...

  • Page 23: Appendix

    OFF Mode Input Connector Input Video Signal Maximum Screen Size Power Source Environmental Considerations Dimensions Weight (N. W.) EN7220 43.2cm(17.0") 0.264mm( H )x 0.264mm( V ) R,G,B Analog Interface 30KHz – 83KHz 55-75Hz 16.2M Colors 135MHz 1280 x 1024 @75Hz...
  • Page 24 APPENDIX (cont) Switch External Controls: Functions Power Consumption ( Maximum ) Regulatory Compliance EN7220 Auto Adjust Key < /Brightness > / Contrast Power Button MENU/ Exit Contrast Brightness Focus Clock H.Position V.Position Language (Warm) Color (Cool)Color RGB Color temperature Reset...
  • Page 25 1280 × 1024 720 x 400 1024 x 768 1024 × 768 HORIZONTAL VERTICAL FREQUENCY(KHZ) FREQUENCY(HZ) 31.469 37.500 37.879 46.875 48.363 56.476 60.023 64.00 80.00 31.469 48.780 60.241 EN7220 59.940 75.000 60.317 75.000 60.004 70.069 75.029 60.000 75.000 70.087 60.001 74.927...
  • Page 26 APPENDIX (cont) Connector Pin Assignment 15 - Pin Color Display Signal Cable PIN NO. DESCRIPTION Green Blue Monitor Ground DDC-return R-Ground G-Ground B-Ground PI N NO. DESCRIPTION Logic Ground Monitor Ground DDC-Serial Data H-Sync V-Sync DDC-Serial Clock EN7220...
