6SL7
6L6GB/5881
6L6GB/5881

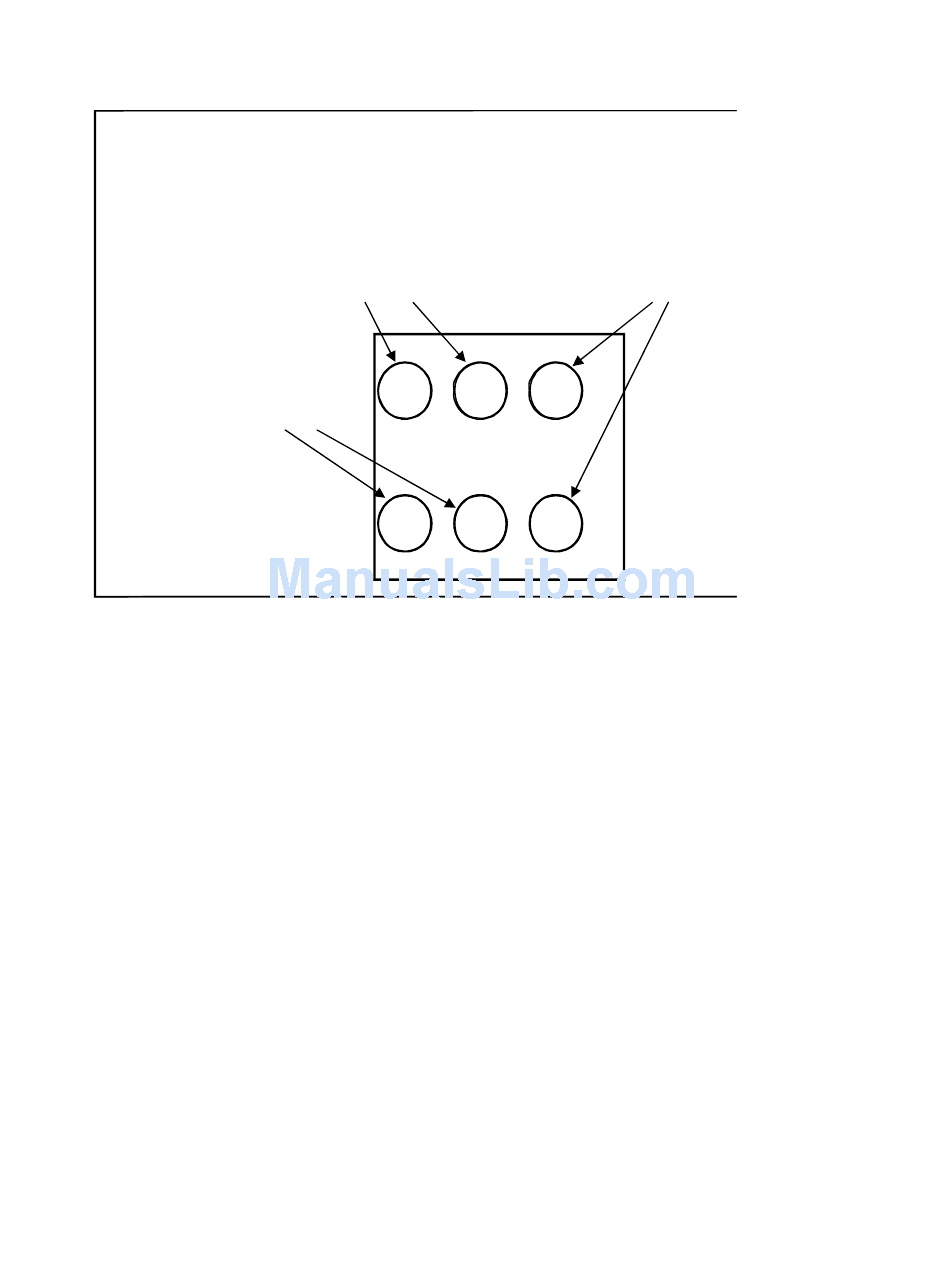

Diagram 1: P2SE tube locations

Installation

Select a suitable location for the units ensuring that adequate ventilation
clearance is provided allowing at least 30cm. of space above the units. This is an
important consideration as the amplifier generates substantial heat during
normal operation. Be sure not to install the amplifier into a cabinet with
restricted air flow or onto a thick pile carpet.
In the interest of safe, reliable operation situate the amplifier away from
dampness or direct sunlight. Site the unit on a flat and firm surface capable of
sustaining the amplifier's weight. Worthwhile sonic improvements may be
obtained by locating the amplifiers on a purposely designed audio support
system.
CONNECTION – Inputs
The amplifier has a pair RCA sockets on the rear panel for connection to your
preamplifier. The sockets are colour coded Black for Left channel and Red for
Right channel. The P2SE is equipped with a volume control and so a preamplifier
MANUAL- ZZ205
2
