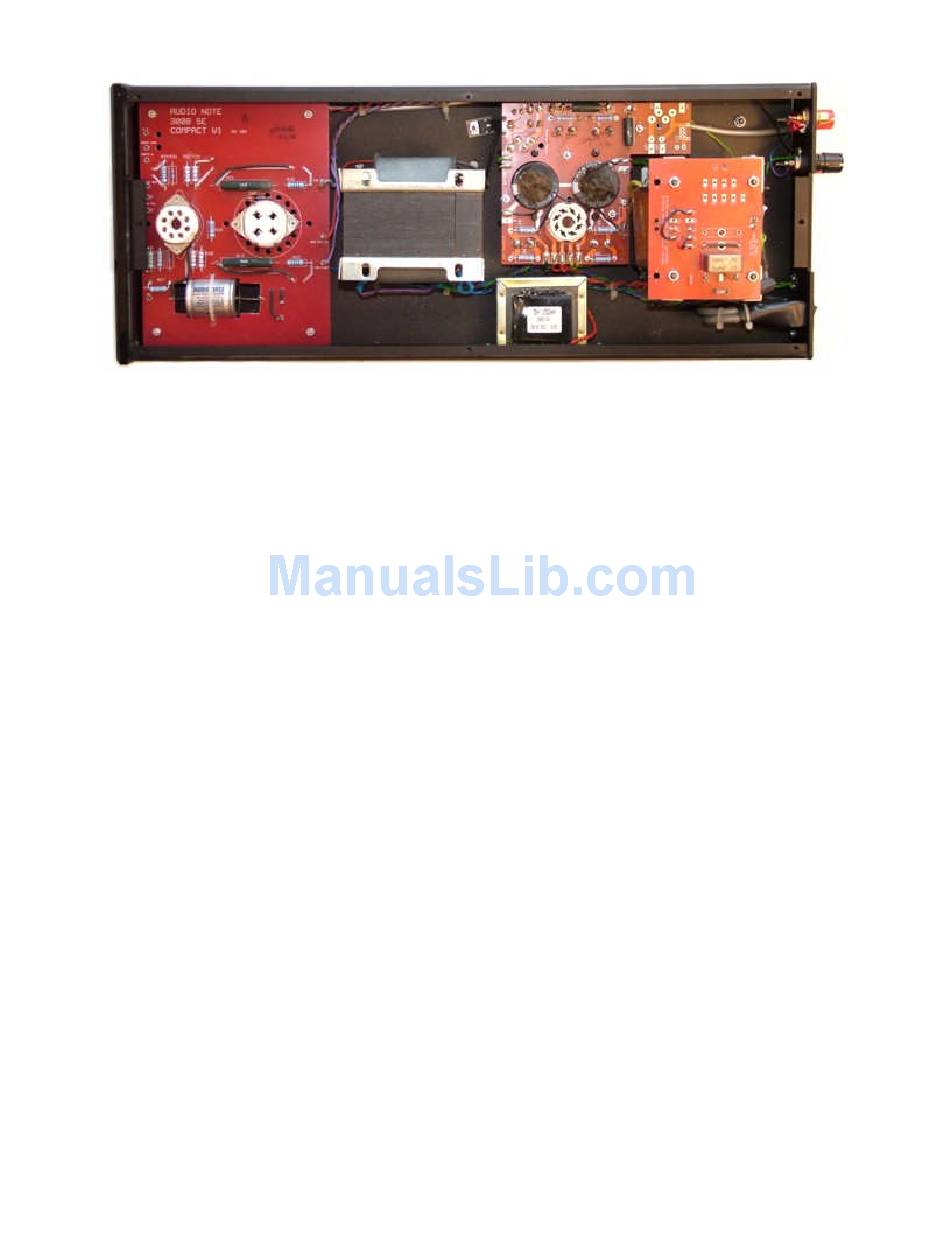

Photo 1: Internal top view of amplifier
In the interest of safe, reliable operation situate the amplifier away from dampness or
direct sunlight. Site the unit on a flat and firm surface capable of sustaining the
amplifier's weight. Worthwhile sonic improvements may be obtained by locating the
amplifiers on a purposely designed audio support system.
CONNECTION – Inputs
Each amplifier has a single RCA socket on the back panel for connection to your
preamplifier marked as Input. The sockets are colour coded Black for Left channel and
Red for Right channel.
CONNECTION – Speakers
Each amplifier is equipped with three colour coded standard binding posts for connection
to your speakers.
Connect the amplifiers black speaker output binding post marked as " 0 " to the black
terminal (also marked " – ") on the speaker.
Connect the amplifiers red speaker output binding post marked "8 Ohm" to the red
terminal (also marked " + ") on the speaker.
The other red speaker output binding post is marked "4 Ohm" and may be used with 4
Ohm speakers. If you are uncertain whether your speaker system is of 4 or 8 Ohm type,
try the following test once all other connections are made and the amplifier is operational.
Compare the sound quality using a familiar recording with the speakers connected to the
8 ohm connections and then the 4 Ohm connections respectively. The selection that
produces the best frequency balance and maximum dynamics should be used.
MANUAL-ZZ209
3
