Craftsman 315.27441 Owner's Manual

Industrial die grinder double insulated
Hide thumbs

Advertisement

OWNERS
MANUAL
MODEL
NO.
315.27441
CAUTION:
Read Rules for
Safe Operation
and Instructions
Carefully
SAVE THIS
MANUAL
FOR
FUTURE REFERENCE
612547-871
10-00
CRAFTSMAN.
INDUSTRIAL
DIE
GRINDER
DOUBLE INSULATED
Warranty
Introduction
Operation
Repair
Parts
Designed
exclusively
for and sold only
by
SEARS,
ROEBUCK
AND
CO., Hoffman
Estates,
IL 60179
®
PRINTED
IN U S A

Advertisement

Table of Contents
loading

  Related Manuals for Craftsman 315.27441

  Summary of Contents for Craftsman 315.27441

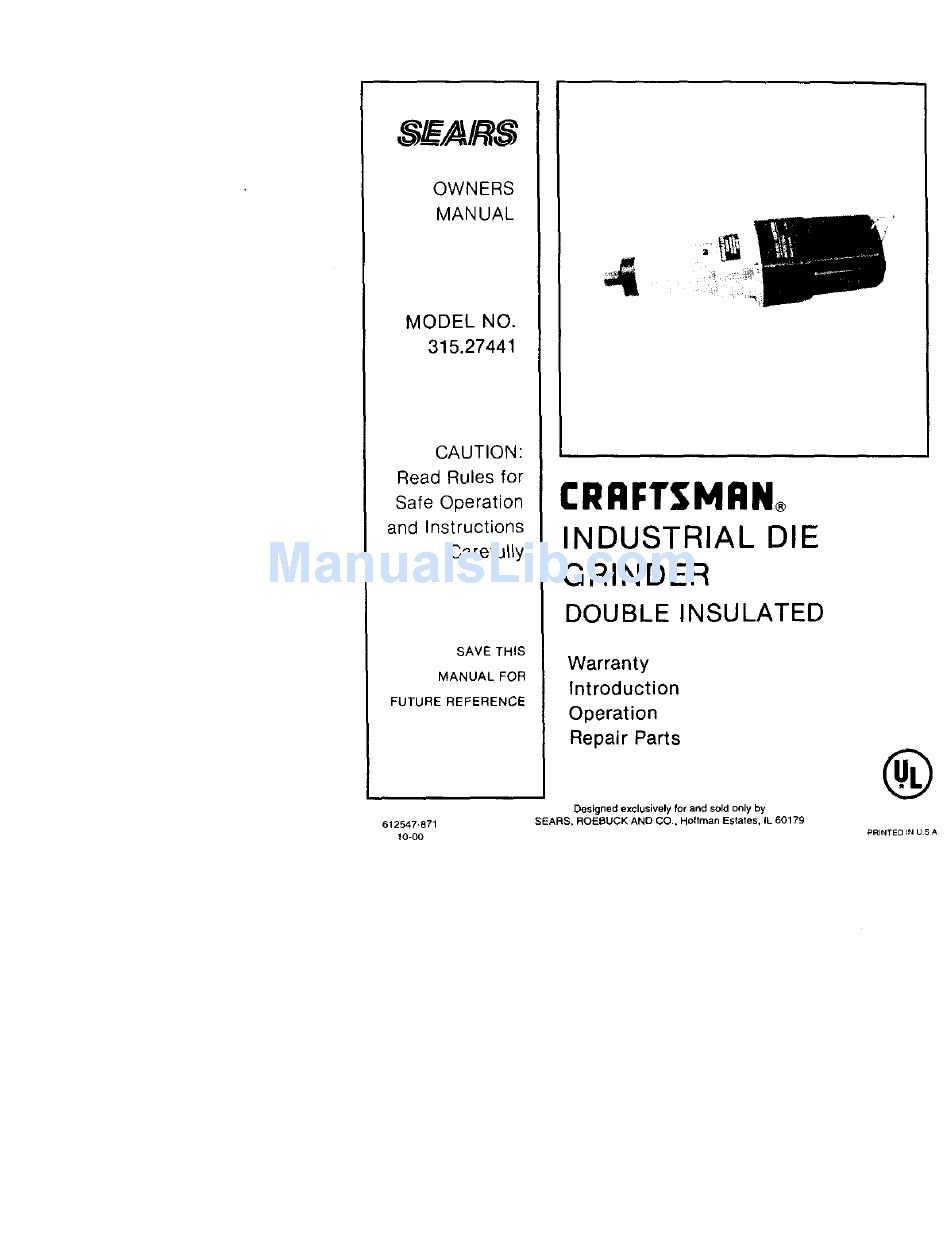

  • Page 1 OWNERS MANUAL MODEL 315.27441 CAUTION: Read Rules for CRAFTSMAN. Safe Operation and Instructions INDUSTRIAL Carefully GRINDER DOUBLE INSULATED SAVE THIS Warranty MANUAL Introduction FUTURE REFERENCE Operation Repair Parts ® Designed exclusively for and sold only SEARS, ROEBUCK CO., Hoffman Estates,...
  • Page 2: Rules For Safe Operation

    FULL ONE YEAR WARRANTY ON CRAFTSMAN INDUSTRIAL DIE GRINDER If this Craftsman Industrial Die G_nder fails due to a defect in matehal or workmanship within one year from the date of purchase, Sears will repair it, tree of charge¸ WARRANTY...
  • Page 3 WHEN SERVICING ONLY IDENTICAL (A W.G.) of at least 16 is recommended for an CRAFTSMAN REPLACEMENT PARTS. extension cord t00 feet or less in length. A cord POLARIZED PLUGS. To reduce the risk of electric exceeding 100 feet is not recommended.
  • Page 4: Operation

    OPERATION CUSTOMER INSTRUCTfONS DON'T your GRINDER before reading thoroughly INTRODUCTION and OPERATING INSTRUCTIONS. read thoroughly INTRODUCTION OPERATING INSTRUCTIONS before using your GRINDER. DON'T leave Grinder unattended before discon- necting from power source. DO disconnect power cord when cleaning or doing maintenance on tool.
  • Page 5 OPERATION Ccoo.°ued) For ease of operation and maintaining proper con- troL hold your Grinder with both hands as shown in Clamp or otherwise secure the work to prevent it from shifting. Always point the cutter so that if it should slip there is no danger to any part of your body.
  • Page 6 OPERATION (Cont.) DO NOT EXCEED THESE GRINDING WHEEL SIZES Plain Wheels Shaped Wheels 1/4" Mandrel 1/4" Mandrel Wheel Dia. Wheel Thickness Wheel Dia. Wheel Thickness 1-1/8 11/16 1-1/4 1-1/2 1-1/4 Wi,!h 1-1/16 Ovel 1/8" Mandrel hang 1/8" Mandre_ Wheel Thickness Wheel Dia.
  • Page 7 OPERATION (Cont.) WiRE HANGER (See Fig. 5). A wire hanger is pro- vided for your convenience and ease of storage. install, insert ends of the hanger into the holes each side of the grinder housing. LUBRICATION All the bearings in this tool are lubricated with a suf.
  • Page 8 THE FOLLOWING RECOMMENDED ACCESSORIES ARE CURRENT AND WERE -- AVAILABLE AT THE TIME THIS MANUAL WAS PRINTED MOUNTED GRINDING POINTS Grinding point heads are made of aluminum oxide and are mounted on "finch x 1/4 inch steel shafts. Suitable uses are finish cutt]ng or die cutting, Diameter Length Item No.
  • Page 9 NOTES Page 9...
  • Page 10 CRAFTSMAN INDUSTRIAL DIE GRINDER -- MODEL NUMBER 315.27441 SEENOTE"A"PAGE11 SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS...
  • Page 11: Parts List

    .CRAFTSMAN INDUSTRIAL DIE GRINDER -- MODEL NUMBER 315.27441 The Model Number will be found on a plate attached to the Motor Housing. Always mention the Model Number in ag correspondence regarding your iNDUSTRIAL DIE GRINDER or when ordering repair parts.
  • Page 12 Get it fi×ed; at your home Qr ours! For repair of major brand appliances in your own home... no matter who made it, no matter who sold it! 1-800-4-MY-HOME Anytime, day or night (1 "800-469"4663) www.sears.com To bring in products such as vacuums, lawn equipment and electronics for repair, call for the location of your nearest Sears Parts &...
