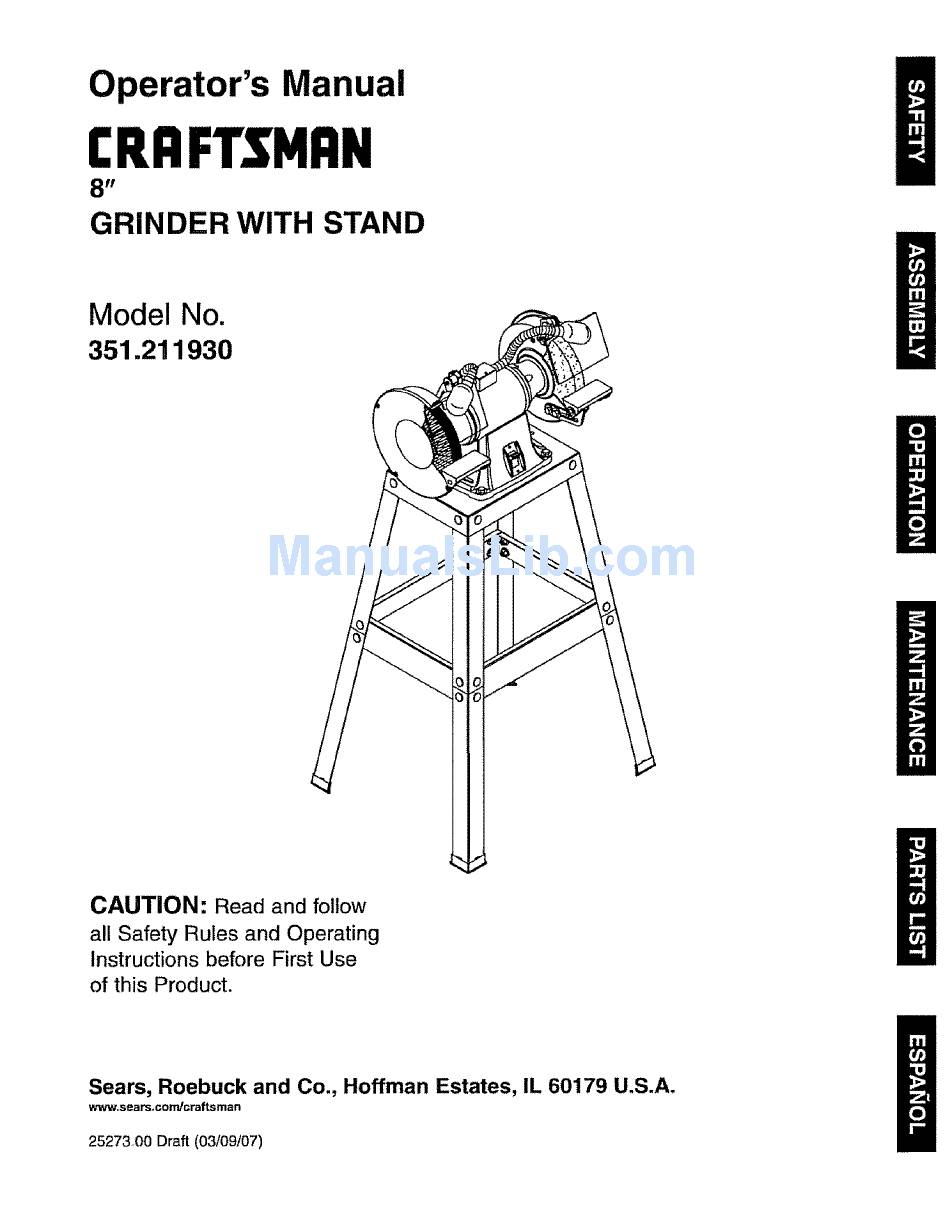

Operator's Manual
CRRFTSMRN
aft
GRINDER WITH STAND
Model No.
351.211930
CAUTION:
Read and follow
all Safety Rules and Operating
Instructions before First Use
of this Product.
Sears, Roebuck
and Co., Hoffman
Estates,
IL 60179 U.S.A.
www ,sears.corn/craftsman
2527300
Draft (03/09/07)
