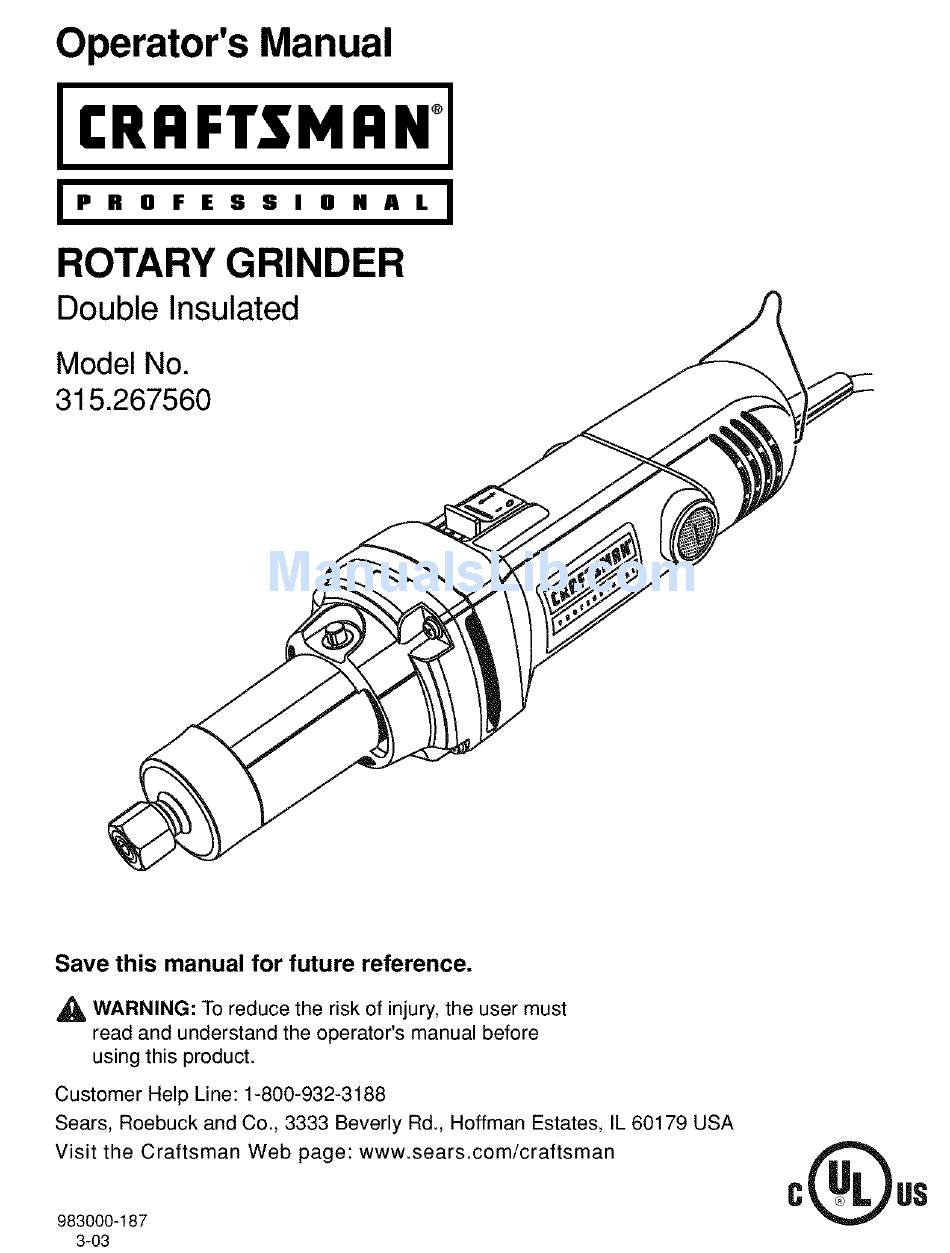

Operator's Manual
iPROFESSiONAL
i
ROTARY GRINDER
Double Insulated
Model No.
315.267560
Save this manual for future reference.
_,
WARNING:
To reduce the risk of injury, the user must
read and understand
the operator's
manual before
using this product.
Customer
Help Line: 1-800-932-3188
Sears, Roebuck
and Co., 3333 Beverly
Rd., Hoffman Estates,
IL 60179 USA
Visit the Craftsman
Web page:
www.sears.com/craftsman
983000-187
3-03

Advertisement

loading

  Also See for Craftsman Professional 315.267560

  Related Manuals for Craftsman Professional 315.267560

  Summary of Contents for Craftsman Professional 315.267560

  • Page 1 To reduce the risk of injury, the user must read and understand the operator's manual before using this product. Customer Help Line: 1-800-932-3188 Sears, Roebuck and Co., 3333 Beverly Rd., Hoffman Estates, IL 60179 USA Visit the Craftsman Web page: www.sears.com/craftsman 983000-187 3-03...
  • Page 2: Full One Year Warranty

    Exploded View and Repair Parts List ........................ 14-I5 • Customer Service information ..........................FULL ONE YEAR WARRANTY ON CRAFTSMAN PROFESSIONAL ROTARY GRINDER If this CRAFI[,_MRH toot faits due to a defect in material or workmanship within one year from the date of purchase, Sears will repair it, free of charge.
  • Page 3 Dress properly. Do not wear loose clothing or WARNING: Read and understand all instructions. Failure to follow all instructions listed jewelry. Contain long hair. Keep your hair, clothing, and gloves away from moving parts. below, may result in electric shock, fire and/or Loose clothes, jewelry, or long hair can be caught in serious personal injury.
  • Page 4 SERVICE • When servicing a tool, use only identical replace- ment parts. Follow instructions in the Mainte- Tool service must be performed only by qualified nance section of this manual. Use of unauthorized repair personnel. Service or maintenance per- parts or failure to follow Maintenance Instructions formed by unqualified personnel could result in a risk may create a risk of electric shock or injury.
  • Page 5 Important:Someofthefollowing symbols maybeusedonyourtool.Please studythemandlearntheirmeaning. Proper i nterpretation ofthesesymbols willallowyouto operate thetoolbetterandsafer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Current Amperes Hertz Frequency (cycles per second) Watt Power Minutes Time Alternating Current Type of current No Load Speed Rotational speed, at no load Class 11 Construction Double-insulated construction...
  • Page 6: Double Insulation

    CAUTION: Keep extension cords clear of the When servicing, use only identical Craftsman working area. While you are working with a power replacement parts. tool, position the cord so that it will not get caught on lumber, tools, or other obstructions.
  • Page 7: Packing List

    INSTRUCTIONS PACKING LIST Your rotary grinder has been shipped completely Rotary Grinder assembled. Collet Adaptor • Carefully remove the tool and the accessories from Wrench the box. Operator's Manual • Make sure that all items listed in the packing list are included.
  • Page 8 Before usingtherotary grinder, f amiliarize yourself w ith COLLET AND COLLET ADAPTOR alloperating features andsafetyrequirements. The grinder is equipped with a 1/4 in. (6.4 mm) collet for However, donotletfamiliarity withthetoolmakeyou receiving 1/4 in. (6.4 mm) diameter bits. careless. A 1/8 in. (3.2 mm) collet adapter is also included with the grinder.
  • Page 9 _1= WARNING: The grinder should never be connected to a power supply when you are assembling parts, making adjustments, cleaning, performing maintenance, or when the tool is not in use. Disconnecting the tool prevents accidental starting that could cause serious injury. ATTACHING THE WIRE HANGER See Figure 2.
  • Page 10 INSERTING BITS See Figure 4. Follow these steps to insert bits. Unplug the grinder. WARNING: Failure to unplug the tool could result in serious injury due to accidental starting. Depress and hold the spindle lock button. Turn the collet nut until the spindle lock engages the hole in the shaft.
  • Page 11: Operating The Grinder

    WARNING: Always wear safety goggles or safety WARNING: Baggy clothes and gloves should not glasses with side shields when operating this tool. be worn while operating this product. To avoid Failure to do so could result in dust, shavings, possible serious injury, wear snug-fitting clothes. chips, loose particles, or foreign objects being •...
  • Page 12: Replacing The Brushes

    REPLACING THE BRUSHES WARNING: When servicing, use only identical Craftsman replacement parts. Use of any other See Figures 7a, 7b, and 7c. part may create a hazard or cause product Replace brushes if worn. Always replace in pairs; do not damage.
  • Page 13: Wheel Sizes

    DO NOT EXCEED THESE GRINDING WHEEL SIZES Plain Wheels Shaped Wheels 1/4 in. Collet 1/4 in. Collet Wheel Diameter Wheel Thickness Wheel Diameter Wheel Thickness 1 in. 3/4 in. 1 in. 1 in. 3/4 in. 1 in. 3/4 in. 1-1/8 in. 1 in.
  • Page 14 -', =E :::T "_ -'_O...
  • Page 15: Parts List

    CRAFTSMAN ROTARY GRINDER- MODEL NUMBER 315.267560 motor housing. Always mention The rnodelnurnberis plate attached the model nurnberin on a correspondence regarding your ROTARY GRINDER or when ordering repair parts. SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS PARTS LIST Part Description Qty.
  • Page 16 Your Home For repair-in your home-of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it! For the replacement parts, accessories owner's manuals that you need to do-it-yourself. For Sears professional installation of home appliances and items like garage door openers and water heaters.
