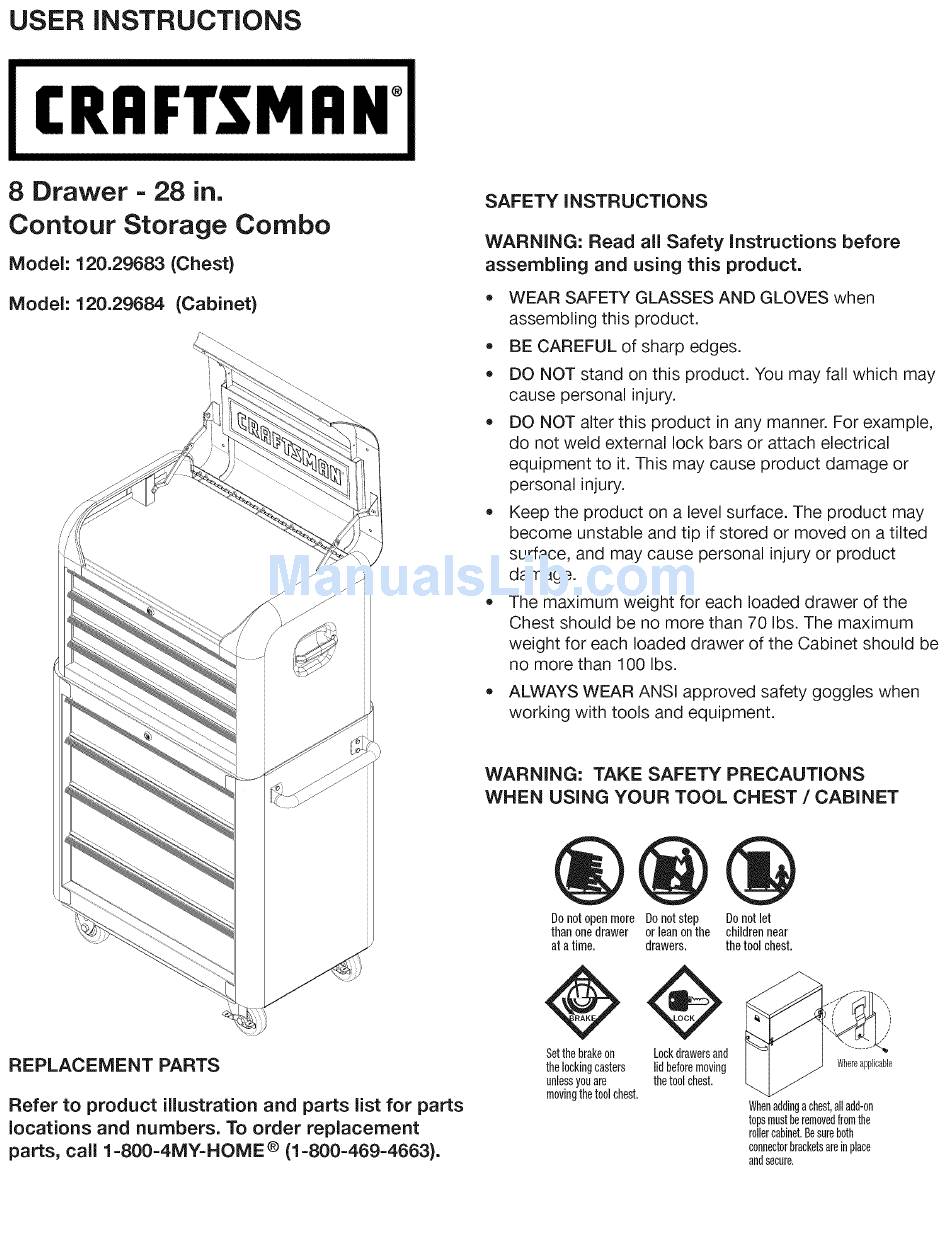

USER iNSTRUCTiONS
[ RA
Iq
8 Drawer-
28 in,

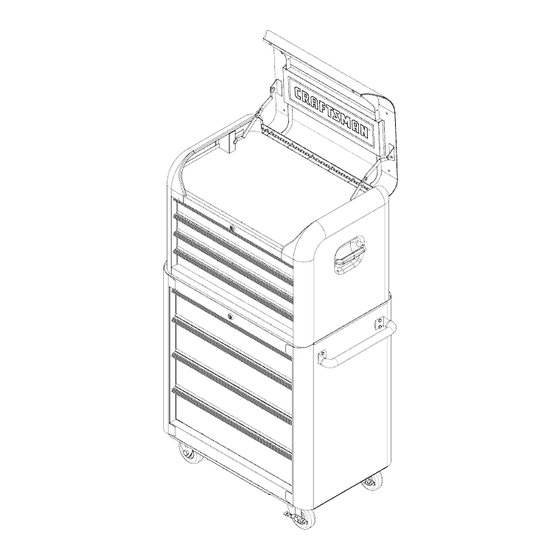

Contour Storage Combo
Model:
120.29683
(Chest}
Model:
120.29684
(Cabinet}
®
SAFETY
iNSTRUCTiONS
WARNING:
Read all Safety Instructions
before
assembling
and using this product.
WEAR SAFETY GLASSES AND GLOVES when
assembling this product.
BE CAREFUL of sharp edges.
DO NOT stand on this product. You may fall which may
cause personal injury.
DO NOT alter this product in any manner. For example,
do not weld external lock bars or attach electrical
equipment to it. This may cause product damage or
personal injury.
Keep the product on a level surface. The product may
become unstable and tip if stored or moved on a tilted
surface, and may cause personal injury or product
damage.
The maximum weight for each loaded drawer of the
Chest should be no more than 70 Ibs. The maximum
weight for each loaded drawer of the Cabinet should be
no more than 100 Ibs.
ALWAYS WEAR ANSI approved safety goggles when
working with tools and equipment.
WARNING:
TAKE SAFETY
PRECAUTIONS
WHEN
USING YOUR
TOOL CHEST / CABINET
Donotopenmore Donotstep
D0not let
thanonedrawer
or leanonthe
childrennear
at a time.
drawers,
thet0ol chest.
REPLACEMENT
PARTS
Refer to product
illustration
and parts list for parts
locations
and numbers.
To order
replacement
parts,
call 1 =800=4MY=HOME
® (1=800=469=4663).
Set t hebrake on
Lock drawers a nd
thelocking casters
lid before moving
unless y ouare
thet001 chest.
moving t het001 chest.
Where applicable
When a dding achest, alladd-on
tops must b eremoved from the
roller cabinet. Be sure both
connector brackets areinplace
and secure.

Advertisement

   Summary of Contents for Craftsman 120.29684

  • Page 1

    USER iNSTRUCTiONS ® [ RA 8 Drawer- 28 in, SAFETY iNSTRUCTiONS Contour Storage Combo WARNING: Read all Safety Instructions before Model: 120.29683 (Chest} assembling and using this product. • WEAR SAFETY GLASSES AND GLOVES when Model: 120.29684 (Cabinet} assembling this product. •...

  • Page 2

    CHEST The chest keys are taped to the top storage area of the chest. The key code is printed on the face of the chest lock. Ref. # Description Part # Mechanical strut 303065 Chest handle 306046 Slide (right) 300114R Slide (left) 300114L Lock...

  • Page 3

    FRONTS: These units are equipped with the raise and release drawer fronts. To open, lift up on the drawer front while pulling towards you. To close, shut the drawer firmly until the latch CRAFTSMAN THREE YEAR LIMITED WARRANTY engages. If the drawer does not stay closed, the hook may be bent, or it may rub against the drawer slides.

  • Page 4

    SearsBrands Management Corporation, Hoffman Estates, IL 60179 REPLACEMENT PARTS Refer to product illustration and parts list for parts locations and numbers, To order replacement parts, call 1=800=4MY=HOME ® {1=800=469=4663}. For replacement keys: key codes are printed on the face of the locks.
