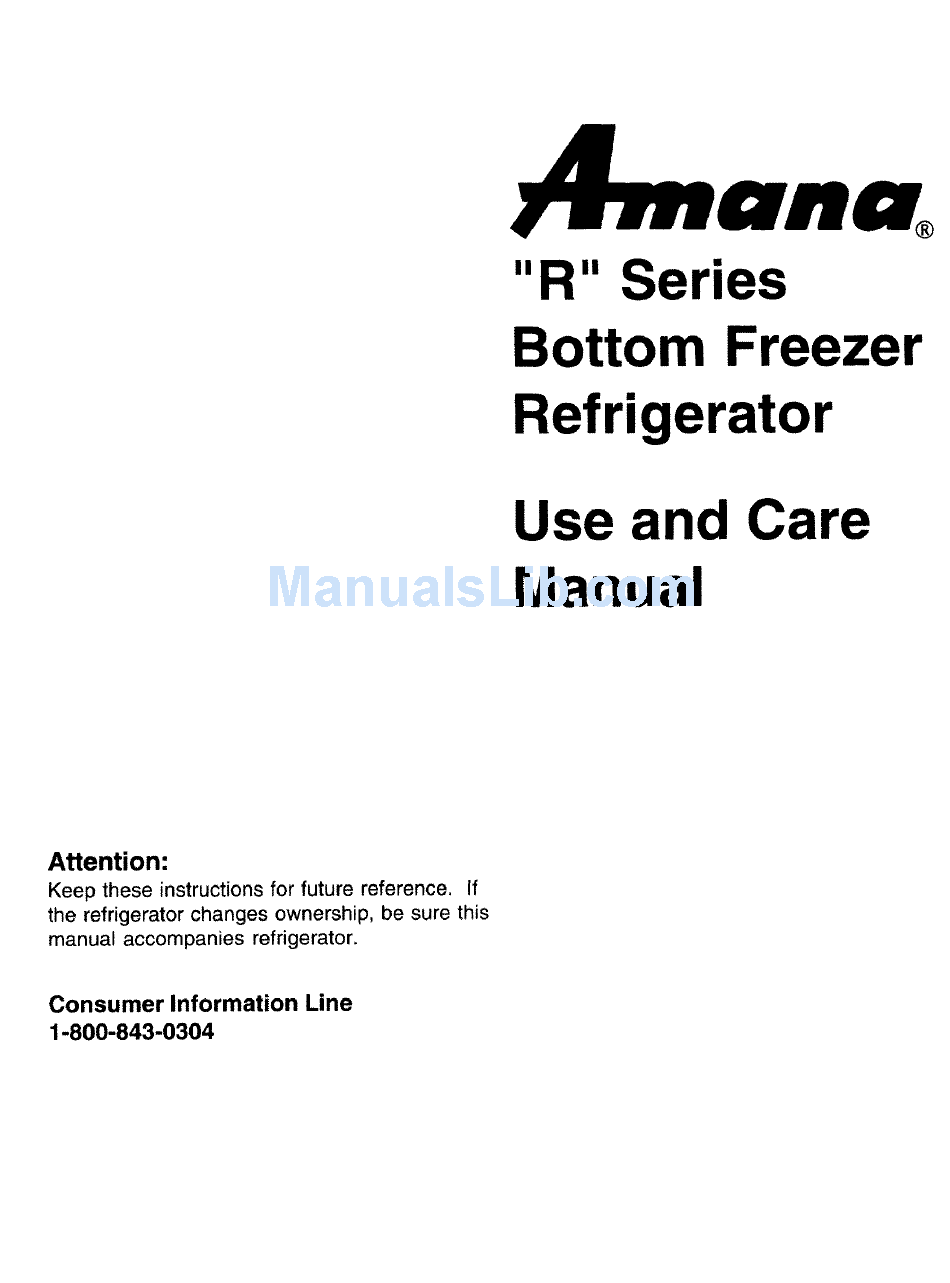

- Page 1 "R" Series Bottom Freezer Refrigerator Use and Care Manual Attention: Keep these instructions for future reference. the refrigerator changes ownership, be sure this manual accompanies refrigerator. Consumer Information Line 1-800-843-0304...
-
Page 2: Electrical Requirements
Contents Electrical Requirements Automatic Ice Maker (optional) Model Identification Freezer Shelf Setting Controls Shelf Divider (some models) Wire Basket Temp-Assure Door Retainers and Shelves Refrigerator and Freezer Other Features Model Diagrams Trim Kits Refrigerator Features Refrigerator Shelves Care and Cleaning Deli Chiller Adhesives Crisper... -
Page 3: Model Identification
This manual provides proper maintainance information for maximum benefit of the features selected. Complete enclosed registration card and promptly return card to Amana's Product Registration department. If registration card is missing, call Amana's Consumer Information Line at 1-800-843-0304. When contacting Amana,... -
Page 4: Setting Controls
Setting Controls This refrigerator is designed to operate most efficiently under normal household temperatures ranging from 55 ° to 110°F. Temp-Assure Thermostatic Control Temp-Assure thermostatic control is located on upper back wall of refrigerator section operates independently of freezer control. hidden thermostatic sensor measures... - Page 5 To set temperaturesmoreprecisely,use a householdthermometerthat includes temperaturesbetween-5° to 50°F (-20.5 ° to 10°C). Thermometercan usuallybe purchasedat a hardwarestore. In freezer section,put thermometersnugly betweenfrozen food packages. Wait 5-8 hours.If temperatureis not 0° to 2°F (-18° to -17°C),adjust control,one numberat a time. Checkagain after 5-8 hours. Frozen Food Packages In refrigerator section,...
-
Page 6: Model Diagrams
Model Diagrams Model Shown is BZ20R Temp-Assure Utility Rack Door Buckets Thermostatic Control Egg Bucket ' Module Model, Manufacturing and Serial Numbers Food Storage Refrigerator Shelf Containers Dell Chiller Bottle Hugger Tall Package Retainer Crisper Drawers Door Retainer Freezer Control -- _ Door Shelves Ice Service Rack __._. - Page 7 Model Shown is BZ22R Temp.Assure Snaccess Utility Rack Egg Bucket Thermostatic Control Model, Manufacturing and Serial Numbers Dairy Module and Food Storage Container System Refrigerato Door Buckets Deli Chiller Bottle Hugger Tall Package Retainer Crisper Drawers Door Retair',er Freezer Control Door Shelves _ce Service Rack Door Retainers...
-
Page 8: Refrigerator Features
Refrigerator Features Refrigerator Shelves Shelves can be adjusted to match size of items stored in refrigerator. Some models feature Spillsaver shelves. Spillsaver shelves hold simple spills for easier cleaning. To remove shelves, tilt up front. Lift back and pull out. To reinstall, tilt front higher than back. - Page 9 Moving Dell Chiller Remove Dell Chiller drawer, Refer to refrigerator shelves instructions to remove and reinstall Dell Chiller. Use only fourth through sixth slots. Reinstall Dell Chiller drawer. Slide hand along back wall to make sure Dell Chiller boot fits snugly over hole in back wall.
-
Page 10: Crisper Drawers
Crisper Drawers Crisper drawers store fresh fruits and vegetables. To keep fresh longer, tightly wrap produce to seal in natural moisture. Do not wash produce before placing in crisper drawers. Excess moisture could cause produce to spoil. Do not line crisper drawers with paper towels. - Page 11 Tilt one end of glass up. Remove shelf from refrigerator. Remove left* crisper drawer lifting front up while supporting drawer underneath. *For refrigerator doors hinged on left, use crisper on right. Remove crisper support post which fits ° into recess at bottom center refrigerator.
-
Page 12: Utility Rack (Some Models)
Utility Rack (some models) Utility rack provides extra storage space for items such as a large bottle, eggs, etc. Slide flat edge of rack onto shelf. Move shelf if necessary. If bottle is used, be sure cap is on tightly. Bucket Take-to-the-counter egg bucket... - Page 13 Reverse procedure to replace shelf. For added storage, additional shelves be purchased from an Amana dealer independent parts distributor. If refrigerator has stationary dairy module and two removable shelves, grasp each side of shelf to remove.
-
Page 14: Door Buckets And Retainers
Door Buckets and Retainers Door buckets can be moved to fit storage needs. To remove buckets, push lock tabs toward center. Pull bucket straight out. To reinstall, slide bucket into grooved area until tabs lock into place, To remove retainers, grasp each side and pull retainer straight... -
Page 15: Bottle Hugger (Some Models)
Bottle Hugger (some models) Bottle hugger prevents bottles from tipping over in buckets and retainers, Bottle hugger can be moved to meet storage needs. Tall Package Retainer Retainer keeps tall packages secure in door buckets or retainers, To remove, rotate and lift... -
Page 16: Automatic Ice Maker
Ice maker, model IC6, water filter, part #R0183114, can be purchased separately from an Amana dealer. Freezer Shelf Some models feature a glass or metal shelf. To remove shelf, pull out. A sharp may be necessary. -
Page 17: Wire Basket
Wire Basket Wire basket is ideal for large, bulky items and glides out for easier access. To remove basket, open door completely. Pull basket straight out until basket stops. Tilt up front and pull out. To reinstall, slide basket Door Retainers Shelves All models... -
Page 18: Other Features Trim Kits
To accent kitchen decor, custom door panels can be added to door fronts. These panels are held in place with decorator trim kits. These kits can be purchased separately from an Amana dealer. Custom panels can be purchased locally. Care and Cleaning... -
Page 19: Glass Shelves
Glass Shelves Caution Handle tempered glass shelves with care. Chipping, scratching and twisting may cause shelves to break suddenly. Replace shelves immediately if scratched or chipped. Do not expose shelves to rapid temperature changes. After removing shelf, place on soft surface such as a towel or dishcloth. -
Page 20: Odor Removal
Odor Removal Caution To avoid electrical shock, unplug power cord or open household circuit breaker to refrigerator before cleaning or replacing light bulb. After cleaning or replacing light bulb, reconnect power. Remove all food. Thoroughly wash refrigerator freezer liners with four tablespoons baking soda dissolved in a quart... -
Page 21: Light Bulbs
Examples are as follows: Amana #A0282803 GE or Westinghouse #40A15/1 Sylvania #40A 15 Important Wear gloves to protect hands should bulb break. If hot, allow bulb to cool. -
Page 22: Energy Tips
Energy Tips This refrigerator is designed to be one of the most energy efficient refrigerators available. Reduce energy use by following these suggestions: Operate in normal room temperatures away from heat sources and direct sunlight. Set freezer, refrigerator and Deli Chiller controls so compartments are no colder... -
Page 23: Normal Operating Sounds
Normal Operating Sounds This new refrigerator may be replacing a differently designed, less efficient or smaller refrigerator. Today's refrigerators have new features and are more energy efficient. As a result, certain sounds may be unfamiliar. These sounds are normal and will soon become familiar. -
Page 24: Before Calling For Service
Warranty does not cover food loss. For additional help and/or to find nearest authorized Amana servicer, call 1-800-843-0304. If food temperature appears too warm See above sections. If a large supply of food was recently added,... - Page 25 If refrigeratorfood temperatureis too cold -- Cleancondensercoil. Adjust refrigeratorcontrol. Adjustfreezercontrolto warmersetting. Allow several hoursfor temperatureto adjust. If refrigeratorruns too frequently It may be normalto maintainan even temperature. Doorsmay have been openedfrequentlyor for an extendedperiod of time. Cleancondensercoil. Adjustfreezer control. Checkgasketfor proper seal. If refrigeratormakesunfamiliarsounds or seemstoo loud OperatingSounds section.
- Page 26 If crisperdrawersor Dell Chillerdo not close freely Check for a package which may prevent drawers from closing properly. Confirm drawers are in proper position. Clean drawer channels with warm, soapy water. Rinse and dry thoroughly. Apply a thin layer of petroleum jelly to drawer channels.
- Page 27 If there is sediment in valve, an in-line water filter should be added. Filter, part #R0183114, can be purchased separately from an Amana dealer or independent parts distributor. problem persists, valve should be cleaned changed. Check water pressure.
- Page 28 A participating Amana dealer has details contact: Amana Refrigeration, Inc. Consumer Affairs Department Amana, IA 52204 1-800-843-0304 Consumer Information Line 1-800-843-0304 Part No, 10459207 ©Amana Refrigeration, Inc, Printed in U.S.A, Company Amana, Iowa 52204...
