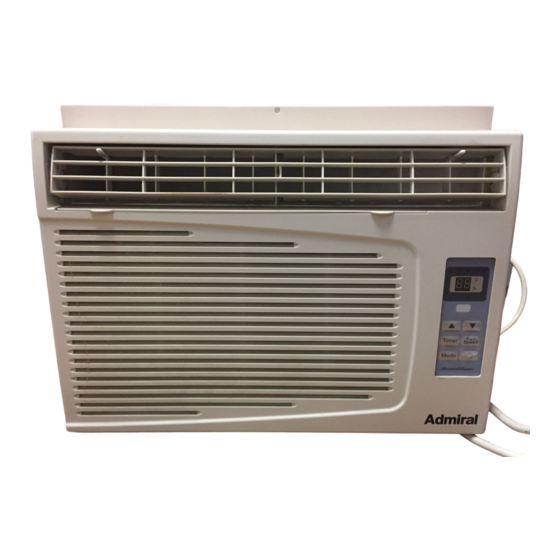

Use and Care Manual
Manual
de Uso y Mantenimiento
Thank you very much for purchasing an ,_:;!W|NT ; Air Conditioner.
Please read this Use and Care Manual
carefully
before installing
and using this appliance
and keep this manual for future reference,
Muchas gracias
por comprar
un Aire Acondicionado
_W=NT
Lea atentamente
el
Manual de Uso y Mantenimiento
antes de instalar
y utilizar
este producto.
Conserve
este
manual
para consultarlo
en el futuro.
For
service,
call
1 877
465
3566
Para obtenerservicio
t6cnico,
Ilameal
1 877 465 3566
Advertisement
Table of Contents
Related Manuals for Admiral AW-05CR1FHU
Summary of Contents for Admiral AW-05CR1FHU
- Page 1 Room Air Conditioner Aire Ac0ndici0nad0 para Habitaci0nes Use and Care Manual Manual de Uso y Mantenimiento Thank you very much for purchasing an ,_:;!W|NT ; Air Conditioner. Please read this Use and Care Manual carefully before installing and using this appliance and keep this manual for future reference, Muchas gracias por comprar...
-
Page 2: Table Of Contents
Table of Contents Page Introduction Parts Identification Electrical Specifications Tips Before Installation Installation Instructions Operating Instructions Care and Maintenance Trouble Shooting Guide Warranty f ndice Pagina Introducci6n Identificaci6n de las Piezas Especificaciones Electricas Consejos Antes de la Instalaci6n Instrucciones de Instalaci6n Instrucciones de Operaci6n Cuidado... - Page 3 introduction Thank you for choosing this room air conditioner to cool your home. This USE AND CARE MANUAL provides information necessary for the proper care and maintenance of your new room air conditioner. If properly maintained, your air conditioner will give you many years of trouble free operation. To avoid installation difficulties, read instructions completely before starting.
-
Page 4: Introduction
Introduction P- Remote contro_ mode_ 3ntal Air Vane Interior Air Outlet Vertical Air Vane Fresh Air Lever (for 8K model only) Cabinet Air Filter(Inside) Front Panel Exterior Interior Ai r Air Inlet Inlet Grille Remote Control Control Panel Power Cord Control Panel Remote Control Note:... -
Page 5: Electrical Specifications
Electrical specifications 1. All wiring must comply with local and national electrical codes and must be installed by a licensed electrician. Once you have any If the air conditioner has a serial plate rating questions regarding the following instructions, of 115 volts and up to and including 7.5 amps contact a licensed electrician. -
Page 6: Tips Before Installation
Tips before installation Your RoomAir Conditioner unit is designed to Your RoomAir Conditioner was designed be highly efficient and save energy. Follow these for easy installation in a single or double-hung recommendations for greater efficiency. window. NOTE: This unit is NOT designed for vertical (slider type) windows. -
Page 7: Installation Instructions
Installation instructions F. Your unit was designed to evaporate condensation under normal conditions. However, under extreme Because the compressor is located on the humidity conditions, excess condensation may cause controls side of the unit (right side), this side the base pan to overflow to the outside. will be heavier and more awkward to manipulate. - Page 8 Installation instructions 1. If your air conditioner cabinet 18" wide, it will fit window openings 21" to 32" in wide. Minimum opening height is 14" from bottom of sash to sill (Fig. 1). Fig. 1 2. Insert the guide panels into the guides of the air conditioner.
-
Page 9: Instructions
Installation instructions Inner Sill Outer Sill 5. Install the L brackets on the outer sill with the Center Line short side of the bracket against the back of the inner sill. Install one L bracket 7.5" to each side of center line. See Fig. 5. Short Side 6. -
Page 10: Operating Instructions
Operating instructions I_Mechanical control model MODE The mode knob controls fan speeds and cooling speeds. To set desired cooling temperature, simply rotate the mode knob dial to the appropriate setting. See Fig. 9. Thermostat knol_ Mode knob THERMOSTAT The thermostat automatically controls the cooling cycle (compressor) of the air conditioner to maintain room temperature. - Page 11 Operating instructions Control Panel You can easily operate this air conditioner by pressing relevant Control Panel button on the controm panel as well as the remote control, (_) Button The air conditioner will be started when it is energized or will be stopped when it is in operation, if you press this button.
-
Page 12: Instructions
Operating instructions / Remote control Power BUTTON The appliance will be started when it is energized or will be stopped when it is in operation, if you press this button. Power Mode BUTTON Used to select the operation mode. Mode Powe Sove ÷... - Page 13 Operating Instructions / Remote control How to insert the Batteries Remove the battery cover according to the arrow direction. Insert new batteries making sure that the (+) and (-) of battery are matched correctly. Reattach the cover by sliding it back into position. Note: •...
-
Page 14: Care And Maintenance
Care and Maintenance When servicing the air conditioner, be sure to turn the mode switch to the "OFF" position and disconnect the power cord from the electrical outlet. DO NOT forget to install the air filter. If the air conditioner is left to operate without the air filter, dust is not removed from the room and may 1. -
Page 15: Trouble Shooting Guide
Troubleshooting Guide / Frequently, a problem is minor and a service call may not be necessary, use this troubleshooting guide for a possible solution. POSSIBLE CAUSE SUGGESTED SOLUTION PROBLEM Air conditioner will No power to the unit. Check connection of power cord to not operate power source. -
Page 16: Warranty
Warranty 5 YEAR FULL WARRANTY This product is warranted for 5years from the date of original purchase. part which fails in materials or workmanship will be replaced within the warranty period. This warranty covers in home service. Acopy of your proof of purchase, with date of purchase... - Page 17 lntroduccl n Gracias pot elegir este aire acondicionado para enfriar su hogar. Este MANUAL DE USO Y MANTENIMIENTO proporciona la informaci6n necesaria para cuidar y mantener en forma adecuada su nuevo aire acondicionado. Funcionar6 sin problemas durante muchos afios si le brinda el mantenimiento apropiado. Para evitar problemas al instalarlo, lea completamente las instrucciones antes de comenzar.
- Page 18 lntroduccl n D. Mode_o de Remoto contro_ador Aleta de Aire Horizontal Entrada Aire Aleta Aire Vertical Palanca deAire Fresco (s61o en el modelo 8K) Gabinete Filtro de Aire (en el interiol Panel Rejilla de Entrada de Entrada Aire Exterior Aire Interior Control Remoto Panel de Control...
- Page 19 Especificaciones el6ctricas 1. Todos los cables deben cumplir con los c6digos electricos locales y nacionales y los debe instalar un electricista licenciado. Si tiene preguntas Si et r6tulo del aire acondicionado indica 1 15 vottios y hasta 7.5 amperios, la unidad se relacionadas con las siguientes instrucciones, puede conectar a un cortacircuito...
-
Page 20: Consejos Antes De La Instalaci6N
Consejos antes de la instalaci6n/ Su unidad de AireAcondicionado para Habitaciones El AireAcondicionado para Habitaciones se ha se ha disen_ado para Iograr un alto rendimiento y dise_ado de modo tal que resulte facil su instalaci6n ahorrar energi a el6ctrica. Siga las siguientes en ventanas armadas sencillas o dobles. - Page 21 lnstrucciones de lnstalaci6n / F. La unidad estd dise_ada para evaporar la condensaci6n bajo condiciones normales. No obstante, bajo condiciones de extrema humedad, es probable que la condensaci6n Debido a que el compresor se encuentra del lado excesiva haga que la bandeja base se desborde hacia el de los controles (a la derecha de la unidad), este...
-
Page 22: Instrucciones De Instalaci6N
Instrucciones de instalaci6n ntanas 1. Si el aire acondicionado tiene un gabinete de 18" de ancho, podrd colocarse en aberturas de ventanas de 21" a 32" de ancho. La altura minima de abertura es de 14" desde la parte inferior del marco hasta el umbral (Fig. -
Page 23: De Instalaci6N
instrucciones de instalaci6n / Umbra{ Extemo Tornillo de 3/4" Umbral Interne L_ nea Central 5. Instale los soportes en L en el umbral externo, de modo que la parte mds corta del soporte apoye contra / Tornillo de 3/4" la parte posterior del umbral interno. Instale un soporte en L a 7.5"... - Page 24 lnstrucciones de Operaci6n/ MODE (Modo) La perilla de modo controla las velocidades de ventilador y de enfriamiento. Para fijar una temperatura de enfriamiento, simplemente haga rotar la perilla y col6quela en el nivel deseado. Vea la Fig. 9. Perilla de THERMOSTAT (Termostato) termostato El termostato controla automdticamente...
-
Page 25: Instrucciones De Operaci6N
Instrucciones de Operaci6n Panel de Control Este aire acondicionado se puede operar facilmente con los botones del panel de control asfcomo tambi6n con el control remoto. Bot6n (.b (Encendido/Apagado) Si presiona este bot6n, encender6el aire acondicionado. Cuando el aire acondicionado esta de calefacci6n, se per imprentar... -
Page 26: De Operaci6N
Instrucciones de Operaci6n Control remoto Bot6n Power (Encendido/Apagado) El aparato se encender(_ si estd apagado o apagard cuando est(_ en operac_On, si oprime este bot6n, Bot6n Mode (Modo) Utilice este bot6n para seleccionar Power T_qqe[ el modo de operaci6n, Bot6n Mode DowerSave Botones... - Page 27 Instrucciones de Operaci6n/ Control remoto • Colocai6n de las pilas Retire la tapa de las en el sentido de la flecha. Introduzca las pilas nuevas,con cuidado de que coincidan los polos(+)y(-), Vuelva a instalar la tapa,desliz6ndola otra vez a su posici6n. Nota: •...
- Page 28 Cuidado y Mantenimiento Cuando repare el aire acondicionado, aseg _rese de colocar la perilla de modo en OFF y luego desconectar el cable de alimentaciOn del tomacorriente elg-ctrico. NO olvide instalar el filtro de aire. Si el aire acondicionado funciona sin el filtro de aire, 1.
-
Page 29: Gufa Para La Soluci6N De Problemas
Gufa p ara l aSoluci6n de Problemas Generalmente los problemas son sencillos yes probableque no sea necesariollamar a un t6cnico. Esta gufa puede ayudarlo a resolverlos. PROBLEMA CAUSA POSIBLE SOLUCI6N SUGERIDA El aire acondicionado La unidad no recibe Verifique si el cable de alimentaci6n no funciona suministro el6ctrico. -
Page 30: Garanti A
GARANTiA COMPLETADE 5ANOS Este productose garantiza por 5 a_os a partir de la fecha de la compra original. Cualquier parte que falle en materiales o la ejecuci6n ser_ substituida dentro periodo de la garantia. Esta garantia incluye servicio a domicilio. Una copia de su prueba... - Page 31 2002-2005 Kelon Air Conditioner company and Kelon USA, Inc. All rights reserved. Printed in Chins Version No. 8t9041944-t...
