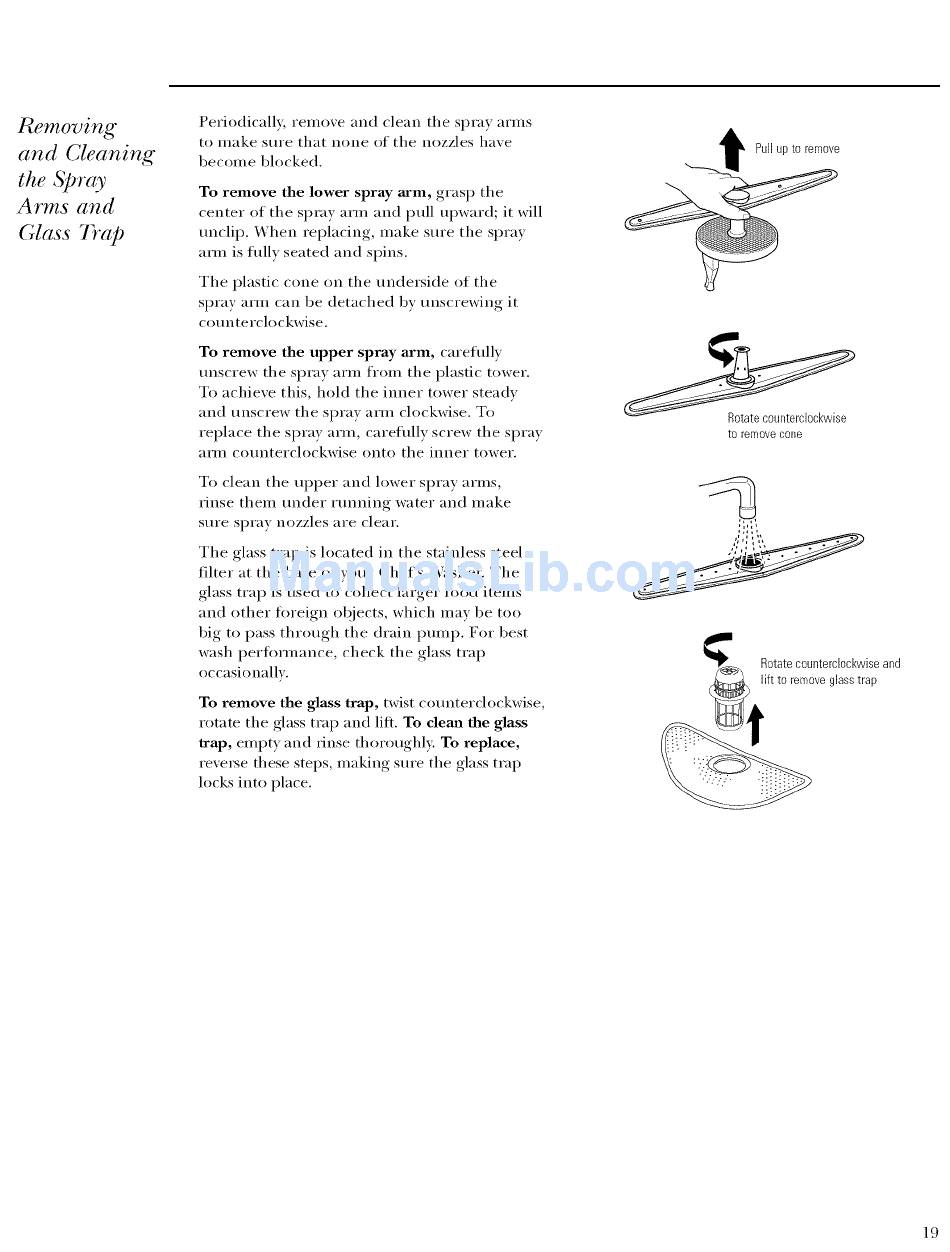

GE Monogram ZBD6605 Owner's Manual page 19

Removing
and Cleaning
the Spray
Arms and
Glass 7}ap
Periodically remo_e and clean the spray arms
to make sure that none of the nozzles ha_e
become blocked.
To remove the lower spray arm, grasp the
center of the spray arm and pull upward; it will
tmcliI). When replacing, make sure the spray
am_ is fifllv seated and spins.
The plastic cone on the underside of the
spray arm can be detached by unscrewing it
counterclockwise.
To remove the upper spray arm, careflfllv
tmscrew the spray arm fl'om the plastic tower.
To achieve this, hold the inner tower steady
and unscrew the spray arm clockwise. To
replace the spray arm, careflfllv screw the spray
am/ counterclockwise onto the inner tower.
To clean the upper and lower spray arms,
rinse them trader Hmning water and make
sure spray nozzles are clear.
The glass trap is located in the stainless steel
filter at the base of wmr Chef's _'asher. The
glass trap is used to collect larger fl)od items
and other fln'eign objects, which mav be too
big to pass through the drain immp. For best
wash i)ertormance, check the glass trap
occasionally.
To remove the glass trap, twist cotmterclockwise,
rotate the glass trap and lift. To dean the glass
lrap, empty and rinse thoroughly. To replace,
reve_e these steps, making sure the glass trap
locks into
place.
Pullup to remove
to remove
colle
%
i:i ::",",
19
