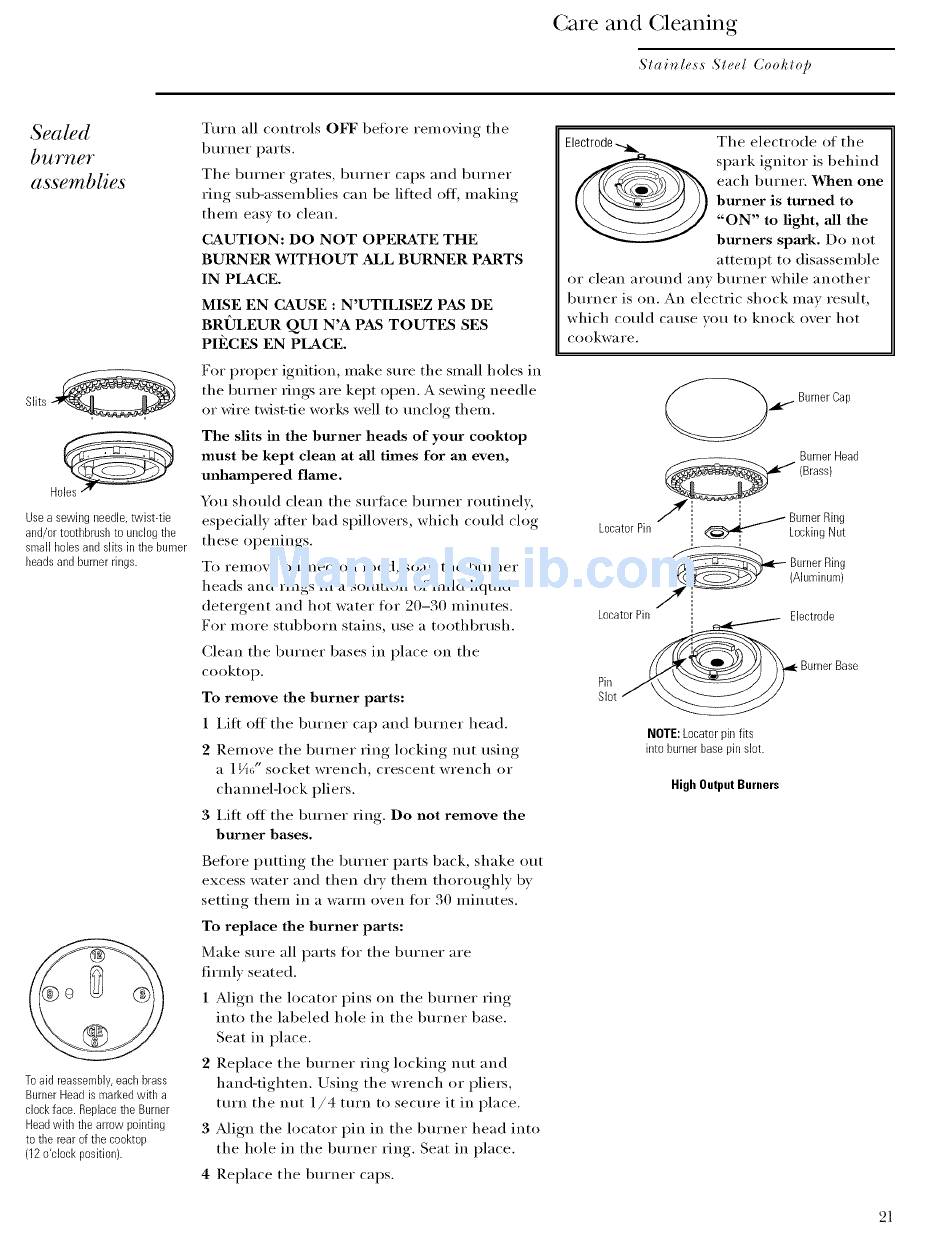

GE Monogram ZGU48N4G Owner's Manual page 21

re and (;leaning
Stair_less Steel Cool:top
Sealed
bLI rTle_"
assemblies
Slits
Usea sewing needle,twist-tie
and/or toothbrushto unclogthe
small holesand slits in the burner
headsand burner rings.
Toaid reassemhiy, e achbrass
BurnerHead is markedwith a
clockface. Replacethe Burner
Headwith the arrow pointing
to the rear of the cooktop
(12 o'clock position).
Turn all controls OFF befi>re removing the
burner parts.
The burner grates, burner caps and burner
ring sub-assemblies can be lifted ott, making
them easy to clean.
CAUTION: DO NOT OPERATE THE
BURNER WITHOUT ALL BURNER PARTS
IN PLACE.
MISE EN CAUSE : N'UTILISEZ PAS DE
BRIJLEUR QUI N'A PAS TOUTES SES
PI_:CES EN PLACE.
For proper ignition, make sure tile small holes in
tile burner tings are kept open. A sewing needle
or wire twist-fie works well to unclog them.
The slits in the burner heads of your cooktop
must be kept clean at all times for an even,
m_hampered flame.
You should clean tile suriace burner routinely,
espedally after bad si)illovers, which could clog
these openings.
To
YeIl/OVe b/li'ned-on too(l,
soak tile
b/lI'neI"
heads and rings in a solution of mild liquid
detergent and hot water tor 20-30 minutes.
For more stubborn stains, use a toothblush.
Clean the burner bases in place on the
cooktop.
To remove the burner pm'ts:
1 IJfl ott tile burner cap and burner head.
2 Remove tile burner ring locking nut using
a 1¼_;" socket wrench, crescent wrench or
channel-lock pliers.
3 iJfl olt the burner ring. Do not remove the
burner bases.
Belt>re putting tile burner parts back, shake out
excess water and then dry them thoroughly by
setting them in a warm oven fl>r 30 minutes.
To replace the burner parts:
Make sure all parts fl>r the burner are
firmly seated.
1 Align tile locator pins on tile burner ring
into tile labeled hole in tile burner base.
Seat in place.
2 Replace tile burner ring locking ntlt
and
hand-tighten. Using tile wrench or pliers,
turn tile nut 1/4 turn to secure it in place.
3 Align tile locator pin in tile b/lrner head into
tile hole in tile burner ring. Seat in place.
4 Replace tile burner caps.
Electrode _ Tile electrode of tile
spark ignitor is behind
each burner. When one
burner is turned to
"ON" to light, all the
burners spark. Do not
attempt to disassemble
or clean around any burner while another
burner is on. An electric shock may result,
which could cause w)u to knock over hot
cookware.
LocatorPin
LocatorPin
._.i Burner C ap
Burner H ead
_ (Brass)
_ Burner R ing
Locking Nut
BurnerRing
(Aluminum)
/
Electrode
Pin
. Burner Base
NOTE:Locaterpinfits
into burnerbase pin slot.
