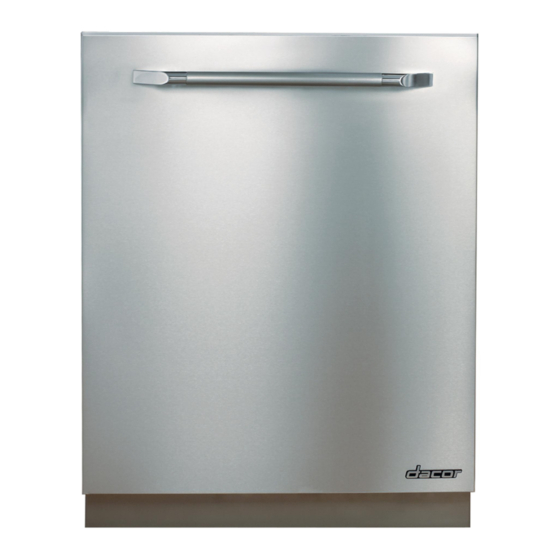

- Page 1 Place Serial Number Label Here DISHWASHER CARE MANUAL life of the kitchen Please read this manual completely before operating your dishwasher. Keep it for future reference. Part No. 65537 Rev. C...
- Page 2 Thank you for choosing Dacor for your home. We are a company built by families for families and we are dedicated to serving yours. We are confident that your new Dacor product will deliver a high level of performance and enjoyment for many years to come.
-
Page 3: Table Of Contents
Important Safety Instructions ......The Cycle Memory Feature ........ Symbols in this Manual ........... Draining Standing Water ........The SECUREFeature ........General Safety Precautions ........Getting to Know Your Dishwasher ....... The Control Panel Lights ........Parts of Your Dishwasher ........WASHING Light .......... -
Page 4: Important Safety Instructions
Safety is everyone's responsibility. All Dacor appliances are designed and constructed to give you many years of safe operation. Operation is further enhanced if proper care and judgment are exercised in the use and maintenance of this appliance. Symbols in this Manual... - Page 5 i[V-] WARNING: CAUTION: • Use the dishwasher to wash flatware and cookware • During loading, insert all sharp or pointed objects with the handles up. Locate these items where they ONLY. Washing other items may damage or discolor will not damage the door seal or cause personal the dishwasher.
-
Page 6: Getting To Know Your Dishwasher
Before You Start, Become Familiar with Your Dishwasher IMPORTANT: See page 14 for complete instructions on how to use your dishwasher. Parts of Your Dishwasher o:o Control Panel: Located on top of the door. The buttons control your dishwasher. The lights show the status of the dishwashing cycle. - Page 7 Oare Manual...
-
Page 8: Parts Of The Control Panel
Parts of the Control Panel Control Panel Indicator Lights: The lights that show the status of the dishwashing cycle and things that may require your attention (see page 20). Numeric Display: Displays the approximate number of minutes until the end of the cycle. If you are using the delay feature, it shows the number of hours before the dishwasher will start. -
Page 9: Other Features On Your Dishwasher
Other features on your dishwasher 4° Turbidity Sensor: Automatically decreases or increases the wash and rinse time, as well as water usage, for more consistent cleaning, and energy savings. Floor Guard: A safety feature that prevents the dishwasher from starting if water is detected in the mechanical system below the dishwashing compartment. -
Page 10: Loading Your Dishwasher
WARNING: Load all sharp or pointed objects with the handles up. IMPORTANT: If the load will sit for a while before washing, run the rinse cycle to reduce the chance of food hardening. Doing so will also reduce the risk of acidic foods damaging metal surfaces. What Can Be Washed Items that you can safely wash in your dishwasher: •... -
Page 11: Loading The Silverware Basket
Loading the Silverware Basket IHPORTANT: • For the best results do not nest utensils in the silverware basket. • Do not load silver next to stainless steel. Damage to the silver may result. To prevent small, light items from falling out of the rack when sprayed with water: Put small items into a compartment with a hinged cover. -
Page 12: Loading The Racks
Loading the Racks IMPORTANT: • It is best to place sharp objects in the silverware basket to prevent damage to the rack coating. The spray arms must spin freely. Do not allow items sticking out of the racks to block them. Raise the top rack to prevent objects on the bottom rack from blocking the upper spray arm (see below). - Page 13 LoadinQ the Racks Always use the top rack for delicate items. Before loading the racks scrape off leftover food items, and non-food items like toothpicks and napkins. Always load large or heavy items (such as pots, pans, and large dishware) in the bottom rack.
-
Page 14: Operating Your Dishwasher
Filling the Detergent Dispenser IMPORTANT= • Do not use hand dishwashing detergents. They will create excessive foaming that interferes with proper operation. To make sure the detergent dissolves properly, fill the detergent dispenser just prior to starting your dishwasher. Detergent will harden if it sits too long. Store dry detergent in a cool dry place to prevent caking. -
Page 15: Filling The Rinse Aid Dispenser
Filling the Rinse Aid Dispenser Rinse aid is important to the drying process of the dishware. It also reduces spotting. Dacor recommends that you keep the rinse aid dispenser full at all times. The rinse aid dispenser must be properly adjusted. Too little rinse aid will allow spotting and drying problems. -
Page 16: Starting Your Dishwasher
When the wash or rinse cycle is completed, the dishwasher will make 3 short beeps. Addinq a Dish After You Start You can add a dish, if needed, after starting your dishwasher. Dacor recommends that you only add items during the first 5 minutes of operation to make sure they get clean. -
Page 17: Pausing Dishwasher Operation
Pausinq Dishwasher Operation STOP To temporarily pause dishwasher operation: Open the door. The dishwasher will stop operating. Press the START/STOP button. The door may be closed and the dishwasher will not start. To resume the dishwasher cycle: Open the door. Press the START/STOP button. -
Page 18: The Delay Feature
The DELAY Feature To set your dishwasher to start automatically at a later time: Press one of the wash cycle buttons or the rinse I_[e] Z_v_ P'-'I II I=I_-'%vA'd [_]Z_i'i_']l If-'1 ! _11 _b"]=1 button: If you have selected NORMAL, you may press the SANI-RINSE button for maximum sanitization. -
Page 19: The Cycle Memory Feature
The Cycle Memory Feature Your dishwasher remembers the settings for the last cycle it ran. If you want your dishwasher to run the same cycle as it ran the previous time: Press the START/STOP button once. The START/STOP button light will flash and the lights on the buttons for last cycle and options run will be lit. -
Page 20: The Control Panel Lights
The Control Panel Lights When you open the door of your dishwasher when it is running, it stops operating, but the lights on the control panel will be lit. The lights indicate the part of the cycle that is running and the cycle that is selected. The lights may also alert you to certain problems. - Page 21 Control Panel Liqhts External Status Liqhts (Optional) Oare Mamual...
-
Page 22: Cleaning And Maintenance
Clean exterior surfaces with a solution of mild detergent and warm water. Rinse and dry with a soft, lint-free cloth. You may also use Dacor Stainless Steel Cleaner (Part No. A-302) on stainless steel surfaces. Use it according to the directions on the package. - Page 23 Removinq the Strainer and Filters Oare Manual...
-
Page 24: Problem Solving
Unnecessary service calls may be expensive, frustrating, and time-consuming. Before you call for service, please review the Problem Solution Guide below. Problem Solution Guide Hard water Use maximum recommended amount of dishwasher Spotting and filming To remove hard water spots, try a vinegar rinse: °... - Page 25 Spotting and filming Spray arms do not rotate properly (cont.) arms. If clear Make sure holes in spray arms are not blocked. If necessary, clear holes with a pointed object and rinse under water. Strainer blocked Excessive foam in the machine Too much rinse aid in final rinse cycle.
- Page 26 Problem Solution Guide (continued) Chipping or breaking Improper loading Do not overload. Load between rack prongs, not of glassware over them. Glasses loaded over prongs will not be supported and may chip or break. Make sure glassware is secure and can't come loose. Always use the top rack for delicate items.
- Page 27 Yellow or brown Washing copper with sterling silver Yellow film on sterling silver results when you wash marks (cont.) copper utensils in same load. Silver polish will Tea or coffee (tannic acid) stains Remove tea or coffee stains by hand using a solution of 1/2cup bleach and 3 cups warm water.
- Page 28 Problem Solution Guide (continued) External alarm The dishwasher's computer has detected Press the CANCEL twice. If light remains on, status light on a problem. disconnect the power for 5 seconds, then turn it back on. If the alarm status light comes back on, call for service.
-
Page 29: Getting Help
Problem Solution Guide and the problem has not yet been remedied, please visit our website or contact our Customer Service Team for a listing of Dacor authorized service agents. Prior to requesting service, it is helpful to be familiar with the warranty terms and conditions listed in the warranty section of this manual. - Page 30 OF COLUM BIA AN D CANADA*: FULL TWO-YEAR WARRANTY If your DACOR product fails to function within two years of the original date of purchase, due to a defect in material or workman-ship, DACOR will remedy the defect without charge to you or subsequent users. The owner must provide proof of purchase upon request and have the appliance accessible for service.
-
Page 31: Notes
1'11I NO POSTAGE NECESSARY IF MAILED IN THE UNITED STATES BUSINESS REPLY MAIL FIRST-CLASSMAIL PERMITNO.4507 DIAMONDBAR CA POSTAGEWILL BEPAID BYADDRESSEE ATTN: WARRANTY PROCESSING DEPT DACOR 1440 BRIDGEGATE DR STE 200 PO BOX 6532 DIAMOND BAR CA 91765-9861 I1,1,,,,,111,,,I,I1,,,I,1,1,1,,I,,I,,11,,,,,111,,I,I... -
Page 32: Warranty Information
