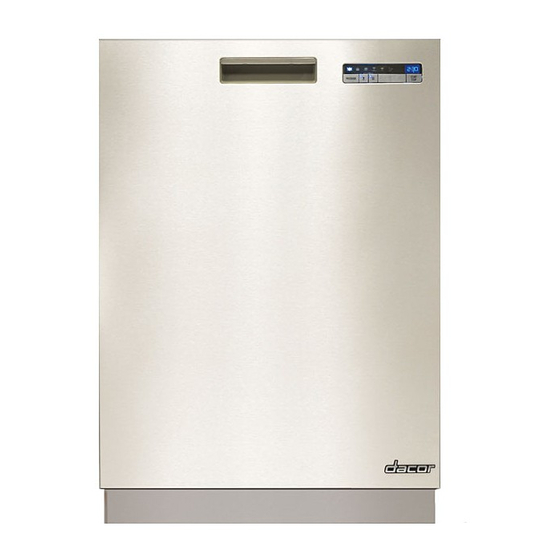

Dacor DDW24S Installation Instructions Manual
Built-in dishwash
Hide thumbs
Also See for DDW24S:
- Use and care manual (24 pages) ,
- Service manual (24 pages) ,
- Installation instructions manual (19 pages)
Related Manuals for Dacor DDW24S
Summary of Contents for Dacor DDW24S
- Page 1 Installation Instructions Distinctive Built-in Dishwasher ™ Model DDW24S Part No. 105658 Rev. B...
-
Page 2: Table Of Contents
Phone: (800) 793-0093 (U.S.A. and Canada) Monday — Friday 6:00 . to 5:00 . Pacific Time Web site: www.dacor.com All specifications are subject to change without notice. Dacor assumes no liability for changes to specifications. © 2011 Dacor, all rights reserved. -
Page 3: Important Safety Instructions
Hazards or unsafe practices that COULD result in • Always contact the Dacor Customer Service severe personal injury or death. Team about problems and conditions that you don’t understand. See Customer Service CAUtION Information. -
Page 4: General Safety Precautions
• To prevent household mold and mildew accompanying it. A qualified service technician damage, periodically check the inlet and drain should perform all other service. Contact the hoses for leaks. nearest Dacor authorized service representative for examination, repair or adjustment. -
Page 5: Product Specifications
Product Specifications Product Dimensions Product tolerances: ±1/16” (±1.6 mm) Depth with door open 49 3/4” (126.4 cm) Depth with door closed 24” (61.0 cm) 22 7/8” (63.2 cm) Drain hose Do not modify 34 3/8” (87.4 cm) Depth dimensions allow Side for hose on back of unit 36 1/2”... -
Page 6: Preparing For Installation
• The dishwasher can be connected to a cold or product data label, located inside the right door jamb. hot water supply (maximum 160°F, 70°C). Dacor Grounding Instructions for a Cord- recommends using a hot water supply of 120°F (49°C) to 140°F (60°C). If a cold water supply is... -
Page 7: Preparing The Location
Dacor for the part number of an approved edge as shown on page 9. Extra care must be protector. taken if the feet are not installed. Dacor is not • The opening through the partition between the responsible for floor damage during installation. -
Page 8: Preparing For Installation
Preparing for Installation Preparing the Drain • The drain hose is equipped with a cone-shaped connector on the end that is ready to CAUtION be cut to the desired drain connection size. Only a clamp (not provided) is required. It fits drain Keep the factory installed high loop drain hose in connections with an internal diameter of 1/2, 5/8, place to ensure proper dishwasher operation. -
Page 9: Installation Instructions
Installation Instructions Verify the Package Contents • Remove all styrofoam and plastic wrap from the dishwasher. Be sure to remove the toe kick from the top of the dishwasher packaging. With the assistance of at least one person, remove the dishwasher from the shipping pallet. -
Page 10: Installation Preparation
Installation Instructions Installation Preparation To make larger tension adjustments to the door springs, remove the back of the springs from the dishwasher by turning them outwards. WARNING Move them one hole farther back or forward, then make small adjustments as outlined in step 3 as • Before working on wiring for any electrical necessary. -
Page 11: Level The Dishwasher
Installation Instructions Level the Dishwasher Open the door and pull the bottom rack out of the dishwasher. Check to make sure the dishwasher floor is level left to right using a level. Adjust the CAUtION front legs as necessary. • A level unit is very important to proper operation. Adjust the rear leg until the floor of the Be sure to level the unit front to back and side dishwasher is level front to back. -
Page 12: Installing The Unit In The Cabinet
Installation Instructions Connecting the Wiring (cont.) Installing the Unit in the Cabinet (Permanently Connected Appliance Only) Position the dishwasher in front of the cabinet opening. If a nonmetallic cable is being used, install a UL listed strain relief bushing on the back of the Before sliding the unit into the cutout, make sure dishwasher. -
Page 13: Water Line Connection
Installation Instructions Once the dishwasher is in place check to make Connect the drain hose to the air gap or directly sure all slack is pulled out of the power cable, to the waste tee or disposer above the sink trap water supply line and drain hose. -
Page 14: Final Leveling
• Repeat the Wet Test Checklist. • If the appliance still does not work, contact Dacor Distinctive Service at (877) 337-3226. Do not attempt to repair the appliance yourself. If you need service, be sure to have the model and serial numbers available when you call. -
Page 15: Attaching The Anti-Tip Brackets
Installation Instructions Attaching the Anti-tip Installing the Toe Kick Brackets Loosen the brackets for the toe kick by moving the gray catches toward the center of the dishwasher. CAUtION Catch Make sure to anchor one anti-tip bracket on each side of the dishwasher. The anti-tip brackets protect against possible tipping caused by heavy bottom rack loads on the door. -
Page 16: Installation Checklist
• Proper installation is the responsibility of the homeowner. The importance of proper installation of your Dacor dishwasher cannot be overemphasized. □ Has the unit been inspected for cosmetic damage? □... - Page 17 Notes...
- Page 18 Notes...
- Page 20 Item No., 80 933 81 Rev. 02 Dacor ● 600 Anton Blvd. Suite 1000 Costa Mesa, CA 92626 ● Phone: (800) 793-0093 ● Fax: (626) 403-3130 ● www.dacor.com...
