EnGenius EAP150 Quick Installation Manual

EnGenius®

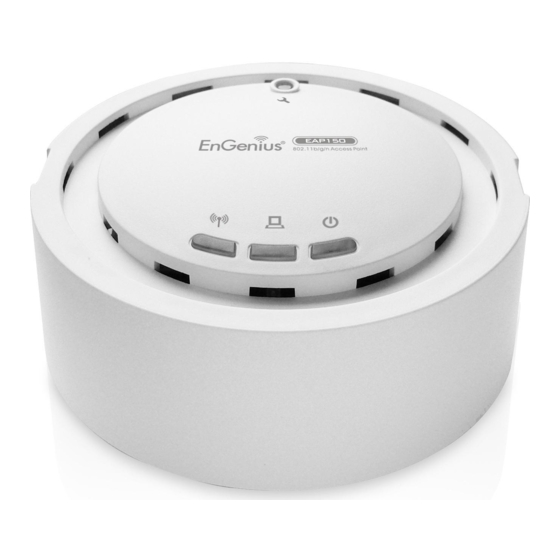

EAP150 802.11b/g/n Wireless Access Point

Package Contents

Unpack the box and verify the contents:
•
EAP150 802.11b/g/n Wireless Access Point
•
Category 5 Ethernet Cable
•
Power Adaptor
•
Wall Mount Kit
•
EAP150 802.11b/g/n Wireless Access Point Quick Installation Guide
•
EAP150 802.11b/g/n Wireless Access Point Instruction Manual
•
Resource CD

Setting up the EAP150

After verifying the contents of the box, continue on to setting up the EAP150.

Hardware Installation

1) Ensure that the computer in use has an Ethernet Card (RJ-45 Ethernet Port). For more
information, verify with User Manual.
2) Connect one end of the Category 5e Ethernet cable into RJ-45 port of the EAP150 and the other
end to the RJ-45 port on the computer that will use the EAP150. Ensure that the cable is securely
connected to both the EAP150 and the Computer.
3) Connect the Power Adaptor DC Inlet to the DC-IN port of the EAP150 and the Power Adaptor to
the electrical out. Once both connections are secure, verify the following:
a) Ensure that the Power light on the right is on (it will be blue).
b) Ensure that the Wireless light on the left is on (it will be blue).
c) Ensure that the LAN (Computer/EAP150 Connection) light in the middle is on (it will be
blue).
d) Once all three lights are on, proceed to setting up the computer.
Quick Installation Guide
