EnGenius EAP1750 Quick Installation Manual

Package content
Unpack the box and verify the content:
- ECB1750
- RJ-45 Ethernet-cable
- 12V/1A 100V~240V Power adaptor
- 3*2.4GHz detachable antenne
- 3*5GHz detachable antenne
- Quick Installation Guide
- CD with instruction manual
Minimum requirements
- Broadband Internet Service (Cable or DSL modem)
- Internet browser (Internet Explorer, Safari, Firefox, Chrome)
Hardware installation

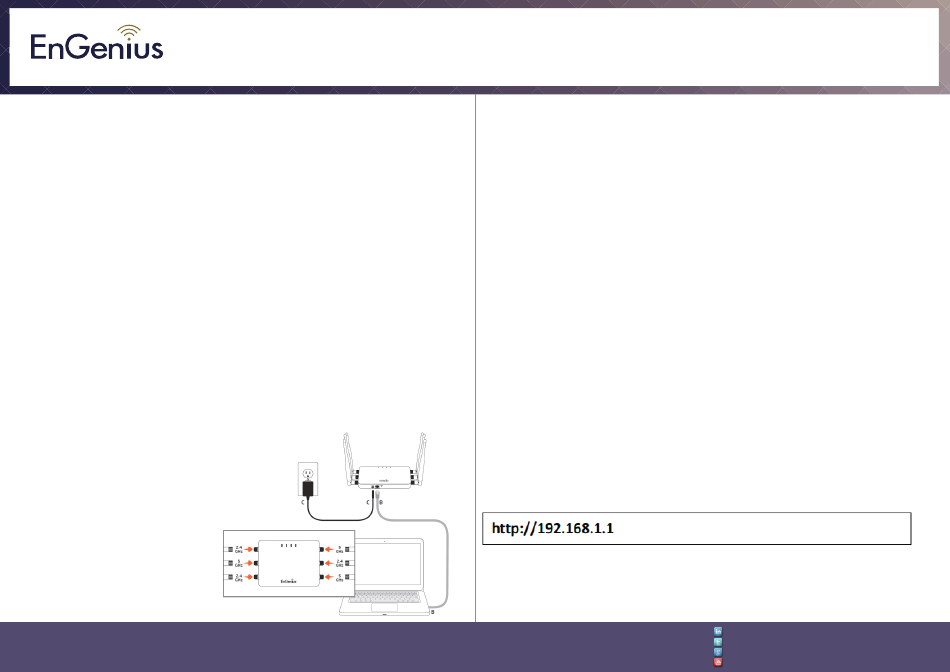

1. Please install the antennas as shown below.
2. Connect one end of the Ethernet cable into LAN port of the ECB1750 and
the other end to the computer that will use the ECB1750. Ensure that the cable
is securely connected to both the ECB1750 and the computer.
3. Connect the power adaptor DC inlet to the DC-IN port of the ECB1750 and
the power adapter in to the electrical outlet.
Note: The ECB1750 supports
both IEEE 802.3at PoE (power
over Ethernet) and regular
power adapter. You should
use either one as the power
source. Please do not apply
both at the same time.
EnGenius Europe | Veldzigt 28, 3454 PW De Meern,
Netherlands | 0900-WIFIABC | www.wifiabc.com
ECB1750
Computer setup
1. After ensuring the EnGenius device is powered on and plugged in, ensure
that your computer is on.
2. For the next steps, refer to your operating system user manual.
3. Once your computer is on, ensure that your TCP/IP is set to ON or
ENABLED. In the control panel, double click network connections and then dou-
ble click on the connection of your Network Interface Card (NIC). Select Internet
Protocal (TCP/IP) and then click on the properties button.
4. If your PC is already on a computer network, ensure that you have set it to
a Static IP adress on the interface (or Ethernet card that will use the ECB1750).
Set it as 192.168.1.21 and the subnet mask address as 255.255.255.0.
Select 'Use the following IP address'-radio button. Once the computer has been
prepared, proceed to setting up the ECB1750.
EAP1750 setup
1. To configure ECB1750, open a web browser (example: Microsoft Internet
Explorer, Mozilla Firefox, Google Chrome, etc.)
2. In the adress bar of the web browser, enter: 192.168.1.1 (the default IP
address of the ECB1750) and hit ENTER.
3. A login screen will appear. By default, the username of the ECB1750 is
admin and the password is admin. Enter the current username and password
of the ECB1750 and then click 'Login'. Refer to the ECB1750 user manual on
how to change the username and password.
4. After clicking 'Login' with the correct username an password, the ECB1750
main menu will appear. If you are successful, proceed to setting up the wireless
connection.
Disclaimer: Information may be subject to changes without prior notification.
