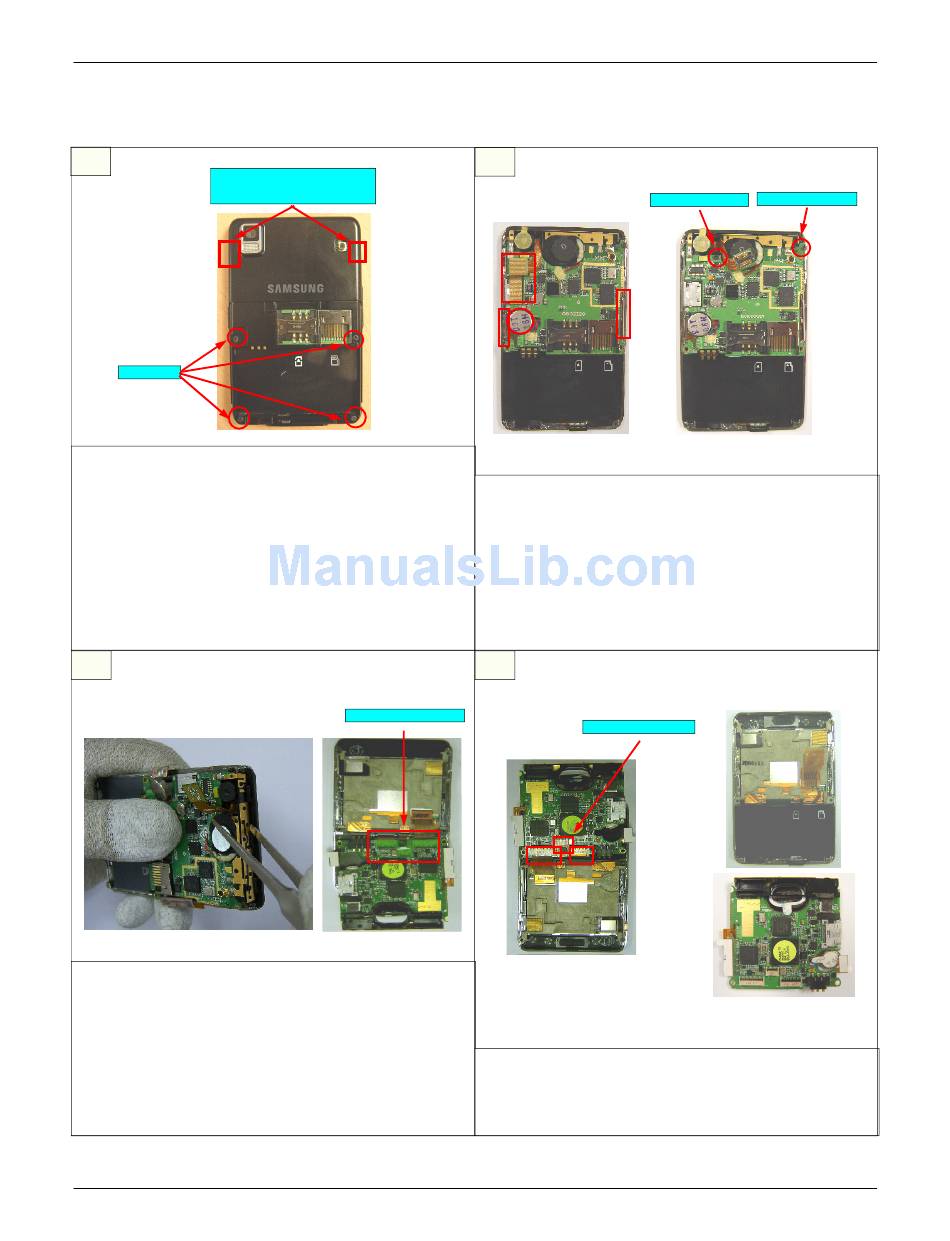

5-3. Disassembly

1
The location of
1.4*5
1) Unscrew 4points rear bolts the back of a
set.
2) First take the left side hook apart, next rig
ht side and then remove the whole Rear
like upper picture.
※ caution
1) When you take a Rear apart, be careful a
out the damage of the
hook.
3
1) Insert tweezer into the upper side of Intenna like a
picture, then detach PBA Ass'y from Front Ass'y with
care.
2) Detach a tape of connectors.
※ caution
1) Please be careful when you detach PBA
Ass'y, because there
is Double-stick on the below.
the hook
Isolation Tape
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
2
1) Detach a EMI tape of IF connector and divide
camera FPCB from the
connector.
2) Detach a camera key FPCB, a volume key FPCB,
and a motor stick to the Front then unscrew a and b.
※ caution
1) Be careful, the motor wire isn't down.
2) Be careful with the damages of FPCBS.
4
3 connectors
1) After take 3 FPCBs out connector, detach
PBA Ass'y from Front Ass'y.
※ caution
1) Be careful with the damages of connectors.
5-4
Main Electrical Parts List
Bolt B:1.4*4
Bolt A:1.4*3
