Dynabrade 52410 Manual

Models:
52410 – 15,000 RPM
52411 – 18,000 RPM
52412 – 20,000 RPM

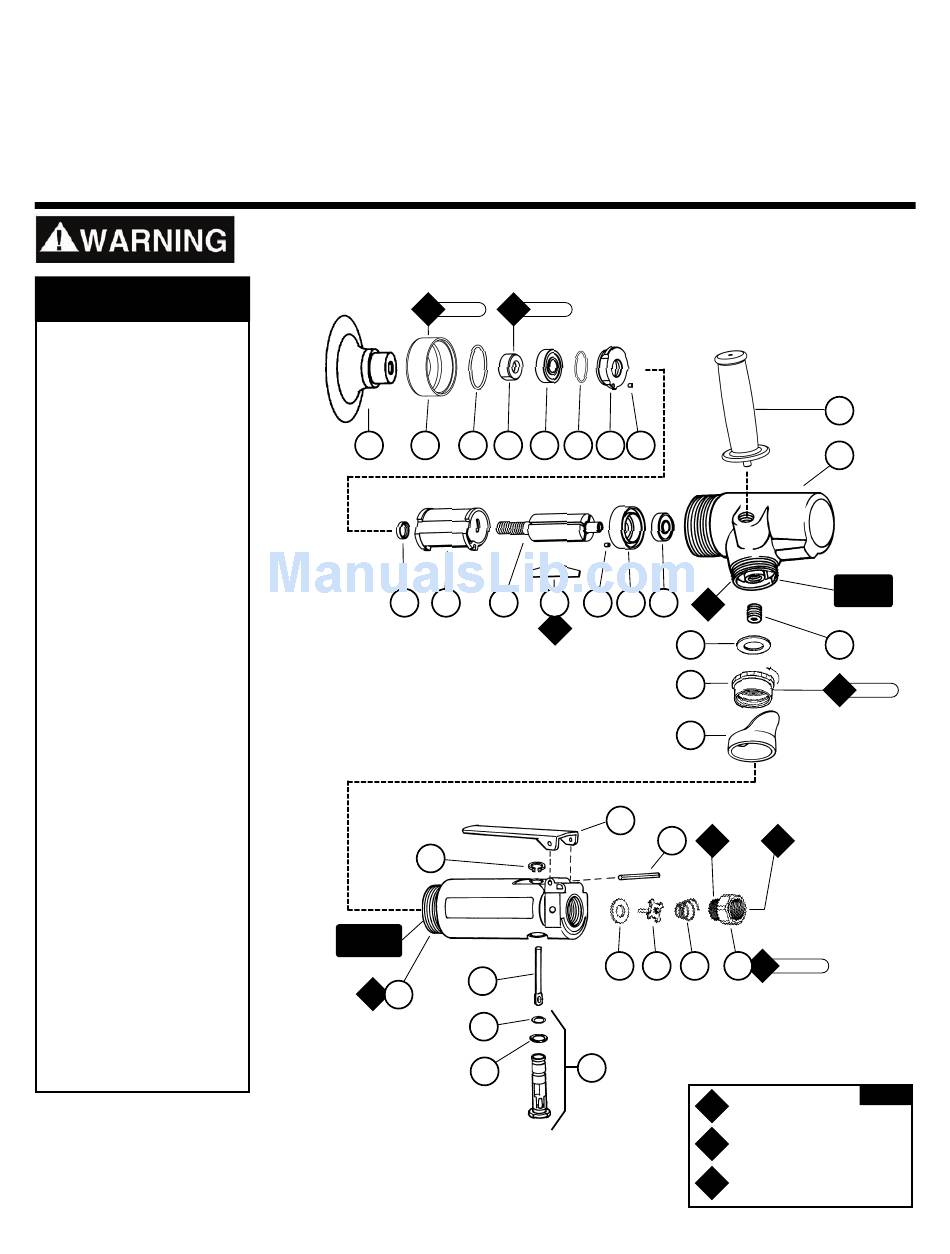

Index Key
No. Part Description
1 50187 3" Dynapad
2 Exhaust Cover
01734 15,000 RPM
01738 18,000 RPM
01748 20,000 RPM
3 01744 Silencer
4 01708 Rotor Nut
5 01007 Bearing
6 01121 Shim (3/pkg.)
7 01008 Plate
8 50767 Guide Pin (2)
9 01010 Spacer
10 01028 Cylinder
11 55025 Rotor
12 01185 Blade (4/pkg.)
13 01743 Bearing Plate
14 02649 Bearing
15 53163 Handle Assembly
16 01739 Motor Assembly
17 01437 Plug
18 01548 Gasket
19 01461 Lock Nut
20 01558 Collar
21 Housing
01895 Model - 52410
01896 Model - 52411
01897 Model - 52412
22 95558 Retaining Ring
23 01448 Throttle lever
01462 Safety Lock Lever
24 12132 Pin
25 01449 Valve Stem
26 95730 O-Ring
27 01024 O-Ring
28 01469 Speed Regulator Assy.
29 01464 Seal
30 01472 Tip Valve
31 01468 Spring
32 01494 Inlet Bushing
See reverse side for Accessories and Important Operating, Maintenance and Safety Instructions.
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade's
Warning/Safety Operating Instructions for more complete safety information.
1 2
9
22
Right Hand
Threads
A
21
8
.7Hp/7˚/Heavy Duty/Gearless

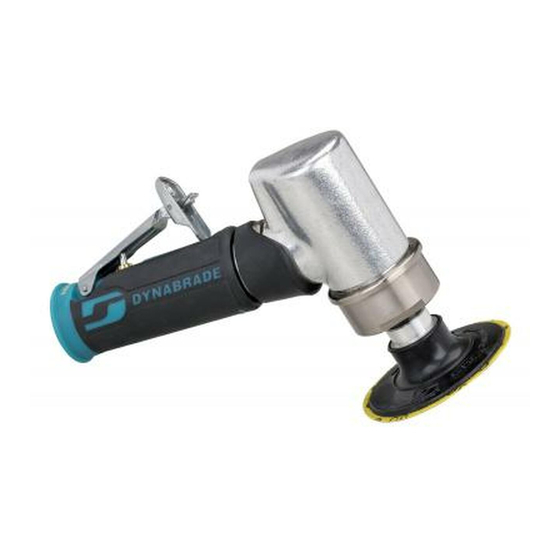

3" Disc Sander
34 N•m 17 N•m
T T
3 4 5 6
10 11 12 8
O
1
25
26
28
27
Parts Page Reorder No. PD05•05
Effective January, 2005
Supersedes PD02•40
Air Motor and Machine Parts
7 8
A
13 14
8
18
19
20
23
A O
24
8 1
29 30 31 32
T 23 N•m
Oil: O = Air Lube
O
1
A
Adhesive: A
Torque: N•m x 8.85 = In. - lbs.
T
15
16
Left Hand
Threads
17
T 45 N•m
KEY
= Loctite #567
8
