Dynabrade 52560 Safety, Operation And Maintenance Manual

Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
For Serial No. 8A1000A and Higher

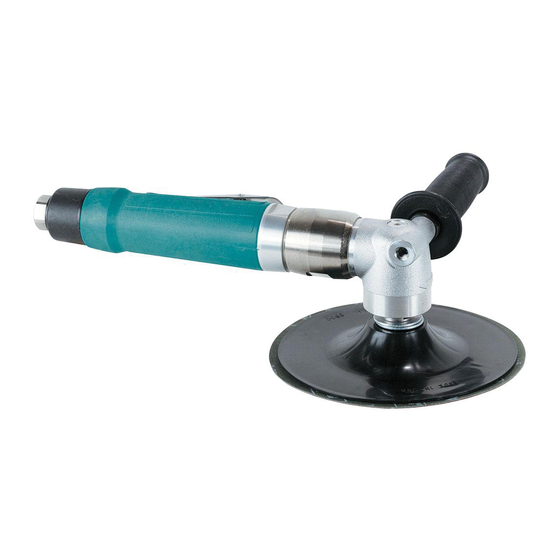

1hp Right-Angle Disc Sander
Governor Controlled
Models:
52560 – 12,000 RPM, 3/8"-24 Spindle
52561 – 11,000 RPM, 5/8"-11 Spindle
52562 – 9,000 RPM, 5/8"-11 Spindle
52563 – 6,000 RPM, 5/8"-11 Spindle
52564 – 9,000 RPM, M14 x 2 Spindle
52565 – 11,000 RPM, M14 x 2 Spindle
52566 – 12,000 RPM, M14 x 2 Spindle
52567 – 6,000 RPM, M14 x 2 Spindle
Read and understand this tool manual before operating your air tool. Follow all safety rules for the protection of operating personnel
as well as adjacent areas. Always operate, inspect and maintain this tool in accordance with the American National Safety Institute
(ANSI) Safety Code for Portable Air Tools – B186.1. For additional safety information, refer to Safety Requirements for the Use, Care
and Protection of Abrasive Wheels – ANSI B7.1, Code of Federal Regulation – CFR 29 Part 1910, European Committee for Standards
(EN) Hand Held Non-Electric Power Tools – Safety Requirements and applicable State and Local Regulations.
Read and understand tool manual before
work starts to reduce risk of injury to
operator, visitors, and tool.
Eye protection must be worn at all times,
eye protection to conform to ANSI Z87.1.
Respiratory protection to be used when exposed to
contaminants that exceed the applicable threshold
limit values required by law.
Carefully Read all instructions before operating or servicing any Dynabrade
Products offered by Dynabrade are not to be modified, converted or otherwise altered from the original design without expressed written consent from Dynabrade, Inc.
Tool Intent: Right-Angle Sanders are ideal for surface preparation including sanding metal parts and removing rust or paint.
Training: Proper care, maintenance, and storage of your tools will maximize their performance.
• Employer's Responsibility – Provide right-angle sanders operators with safety instructions and training for safe use of tools and accessories.
Accessory Selection:
• Abrasive/accessory RPM (speed) rating MUST be approved for AT LEAST the tool RPM rating.
• Before mounting an accessory, visually inspect for defects. Do not use defective accessories.
• Use only recommended accessories. See back page of manual and Dynabrade catalog.
• Follow tool specifications before choosing size and type of accessory.
• DO NOT mount round abrasive discs that overhang the backing pad by more than 1/4 inch (6mm).
• Only use recommended fittings and air line sizes. Air supply hoses and air hose accessories must have a minimum working pressure rating of 150 PSIG (10 Bars, g)
or 150 percent of the maximum pressure produced in the system, whichever is higher. (See tool Machine Specifications table.)
Warning: Always wear eye protection. Operator of tool is responsible for following: accepted eye, face, respiratory, hearing and body protection.
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Air Tool Manual – Safety, Operation and Maintenance
SAVE THIS DOCUMENT, EDUCATE ALL PERSONNEL
WARNING
SAFETY LEGEND
WARNING
WARNING
WARNING
SAFETY INSTRUCTIONS
® Abrasive Power Tool.
Do Not Use Tool For Anything Other Than Its Intended Applications.
OPERATING INSTRUCTIONS
(continued on next page)
Parts Page Reorder No. PD08•06
WARNING
Practice safety requirements. Work alert,
have proper attire, and do not operate tools under
the influence of alcohol or drugs.
WARNING
Ear protection to be worn when exposure to sound,
exceeds the limits of applicable Federal, State or
local statues, ordinances and/or regulations.
WARNING
Air line hazard, pressurized supply lines and flexible
hoses can cause serious injury. Do not use damaged,
frayed or deteriorated air hoses and fittings.
Effective February, 2008
Supersedes PD04•20
