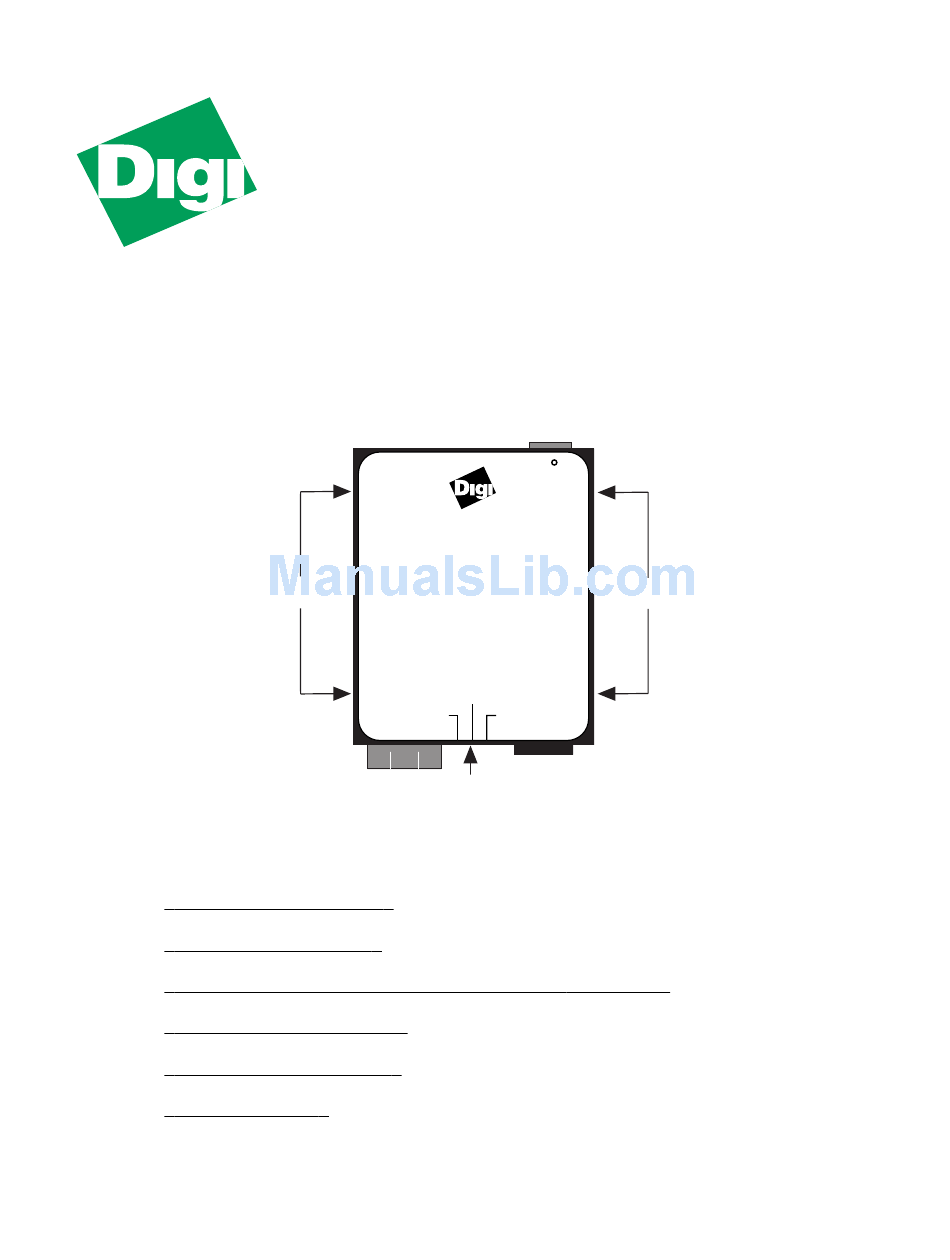

Phillips-head
Screws
This guide includes the following information:
"Introduction" on page 2
"Installation" on page 2
"Diagnostic LEDs and Conditions Indicated" on page 2
"Configuration" on page 3
"RJ-45 Pinouts" on page 3
"Legal" on page 4
MIL-190C
Fast•Twist
Fast Ethernet Converter
Single-mode Fiber
FAST•TWIST
Model MIL•190
100BaseFX
to
100BaseTX
Fast Ethernet
CONVERTER
Single Mode Fiber
Ethernet / IEEE 802.3
POWER
FX ACTIVE
TX ACTIVE
TX
RX
SC-Type
LEDs
Connector
Installation Guide
Power
Connector
5VDC
1 Amp
Phillips-head
Screws
RJ-45
Connector
Doc #: 90000072 Rev. A
Advertisement
Table of Contents
Related Manuals for Digi MIL-190C
Summary of Contents for Digi MIL-190C
-
Page 1: Installation Guide
MIL-190C Fast•Twist Fast Ethernet Converter Single-mode Fiber Power Connector 5VDC 1 Amp FAST•TWIST Model MIL•190 100BaseFX Phillips-head Phillips-head 100BaseTX Screws Screws Fast Ethernet CONVERTER Single Mode Fiber Ethernet / IEEE 802.3 POWER FX ACTIVE TX ACTIVE RJ-45 SC-Type Connector LEDs Connector Installation Guide This guide includes the following information:... - Page 2 Install Guide I ntrod u c tio n The MIL-190C supports Fast Ethernet in both half- and full-duplex mode. For network budget constraint, the MIL-190C uses 150 nanoseconds (approximately 30 meters of cable) during conversion in each direction. To maximize the fiber cable distance, use one meter of category 5 (CAT 5) UTP cable when connecting directly to a node (subject to fiber budget of 16 dBm and collision domain restrictions).
- Page 3 Install Guide C o nfi gu ra t io n The MIL-190 is configured to support auto-negotiation between half- and full- duplex modes. Jumper JP1 is configured with pins 2-3 “jumpered,” which allows auto-negotiation between these two modes. However, if you are connecting to a device that supports half-duplex only (or full- duplex only), then you should disable jumper JP1.
- Page 4 fitness for a particular purpose, except as expressly set forth in this warranty. In no event shall Digi be liable for incidental or consequential damages, costs, or expenses arising out of or in connection with the performance of the product delivered hereunder.
