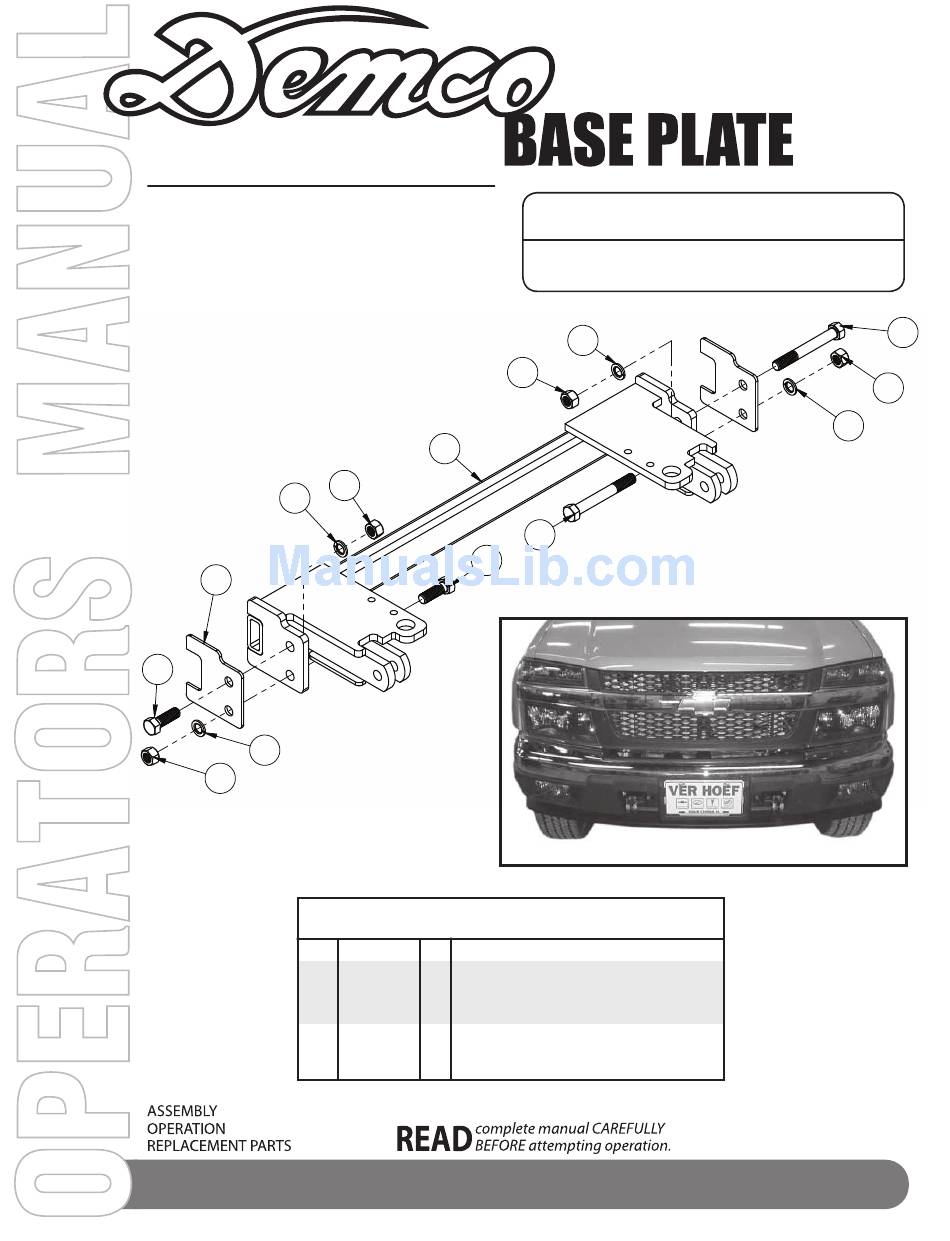

Demco 9518171 Operator's Manual

Chevrolet colorado, gmc canyon base plate
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
BOLT TORQUE SPECIFICATIONS
STANDARD BOLTS:
Size
Grade
Torque
5/16"
5
20 ft/lbs.
3/8"
5
35 ft/lbs.
7/16"
5
56 ft/lbs.
1/2"
5
85 ft/lbs.
1
5
3
1
2
Use this bolt
confi guration when
drilling is needed
REF.
NO.
1.
2.
3.
4.
5. 11843-35
6. 13122-35
7.
Please order replacement parts by PART NO. and DESCRIPTION.
METRIC BOLTS:
Size
Torque
8mm
22 ft/lbs.
10mm
42 ft/lbs.
12mm
70 ft/lbs.
14mm
95 ft/lbs.
2
6
2
3
9518171 PARTS LIST
PART
NO.
QTY.
DESCRIPTION
07288
4
12mm Spring lock washer
07289
4
12mm-1.75 Hex nut
11833
4
12mm-1.75 x 40mm Gr. 8.8
11834
4
12mm-1.75 x 100mm Gr. 8.8
2
Shim
1
Baseplate Crossmember
12329
1
Loctite(not shown)
Doing Our Best to Provide You the Best
Chevrolet Colorado
4WD
Pin height: 20-1/4"
2WD
Pin height: 17"
1
4
6-08
TP20171,Rev.6
GMC Canyon
Centers: 22"
Centers: 22"
2
1
Use this bolt
confi guration
when no drilling
is needed
4

Advertisement

loading

Related Manuals for Demco 9518171

Summary of Contents for Demco 9518171

  • Page 1 6-08 TP20171,Rev.6 Chevrolet Colorado GMC Canyon BOLT TORQUE SPECIFICATIONS METRIC BOLTS: STANDARD BOLTS: Pin height: 20-1/4” Centers: 22” Size Grade Torque Size Torque 5/16” 20 ft/lbs. 22 ft/lbs. 3/8” 35 ft/lbs. 10mm 42 ft/lbs. Pin height: 17” Centers: 22” 7/16” 56 ft/lbs.
  • Page 2 200 miles. At a minimum, these vehicles require signifi cant modifi cation, such as the use of an aftermarket product, to make them towable. The availability of a Demco Tow Bar Base Plate does not imply that these vehicles can be modifi ed or that there is an af- termarket product available.
  • Page 3 2. Unplug lights pull grill straight out and set aside. 5. Remove two bolts from each side (unplug fog lights if equipped) and set bumper aside. 6. Remove tow hooks (if equipped) by removing two bolts on each side, bolts and tow hooks will not 3.
  • Page 4 8. If no drilling is needed proceed to step 10, On 10. Use longer bolts (12mm-1.75 x 100mm Gr. 8.8) if models where drilling is needed, drill 1/2” holes no drilling is needed, slide baseplate between frame on inside of frame using holes as template. Slide horns(If there is a gap between frame horns and baseplate between frame horns(If there is a gap baseplate insert shim as shown on front page), top...

  • Page 5: Warranty Registration

    What other products would you like to see DEMCO offer? Comments Owner’s Name: Mailing Address: City: State: Zip Code: Model#: Serial #: Purchase Date: Owner’s Signature: Please return to DEMCO By FAX or tri-folding this form to the backside, it is pre-addressed.
  • Page 6 Postage Demco 4010 320th Street, Box 189 Boyden, Iowa 51234...
  • Page 7 P.O. Box 189 We reserve the right to change or improve the design Boyden, IA 51234 of any Demco product, including but not limited to state (712) 725-2311 of the art changes, without assuming any obligation to modify any product previously manufactured.
  • Page 8 4010 320th St., P.O. BOX 189, BOYDEN, IA. 51234 PH: (712) 725-2311 FAX: (712) 725-2380 or 1-800-845-6420 TOLL FREE: 1-800-54DEMCO (1-800-543-3626) www.demco-products.com...
