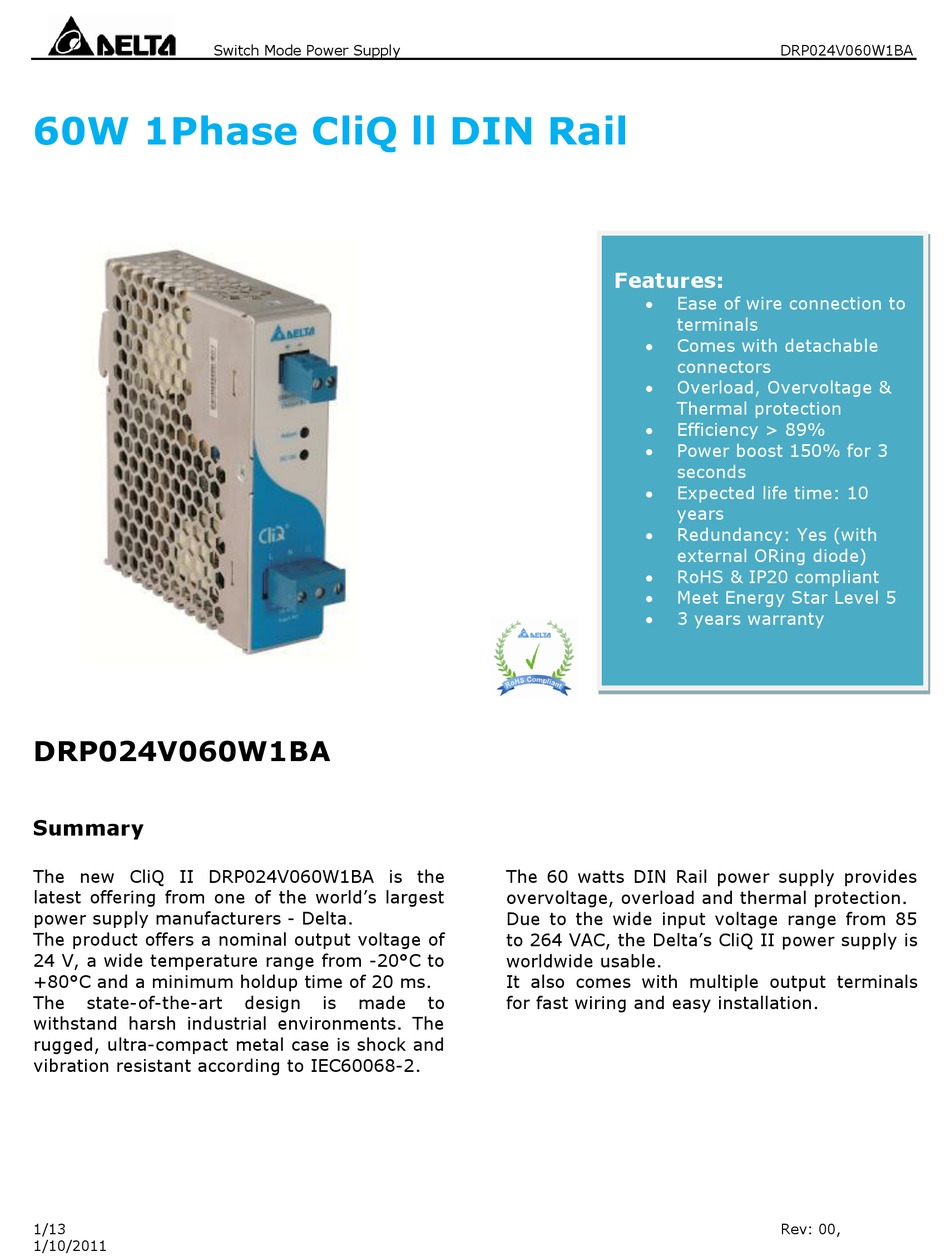

Delta Electronics DRP024V060W1BA Manual

60W 1Phase CliQ ll DIN Rail
DRP024V060W1BA
Summary

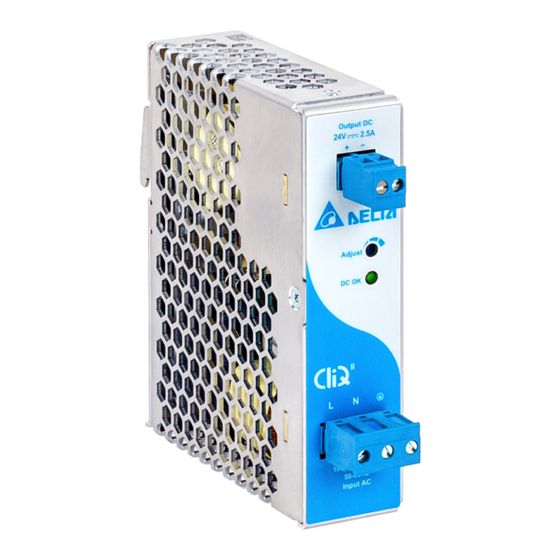

The new CliQ II DRP024V060W1BA is the
latest offering from one of the world's largest
power supply manufacturers - Delta.
The product offers a nominal output voltage of
24 V, a wide temperature range from -20°C to
+80°C and a minimum holdup time of 20 ms.
The state-of-the-art
withstand harsh industrial environments. The
rugged, ultra-compact metal case is shock and
vibration resistant according to IEC60068-2.
1/13
1/10/2011
Switch Mode Power Supply
design is made
The 60 watts DIN Rail power supply provides
overvoltage, overload and thermal protection.
Due to the wide input voltage range from 85
to 264 VAC, the Delta's CliQ II power supply is
worldwide usable.
It also comes with multiple output terminals
to
for fast wiring and easy installation.
DRP024V060W1BA
Features:
 Ease of wire connection to
terminals
 Comes with detachable
connectors
 Overload, Overvoltage &
Thermal protection
 Efficiency > 89%
 Power boost 150% for 3
seconds
 Expected life time: 10
years
 Redundancy: Yes (with
external ORing diode)
 RoHS & IP20 compliant
 Meet Energy Star Level 5
 3 years warranty
Rev: 00,
