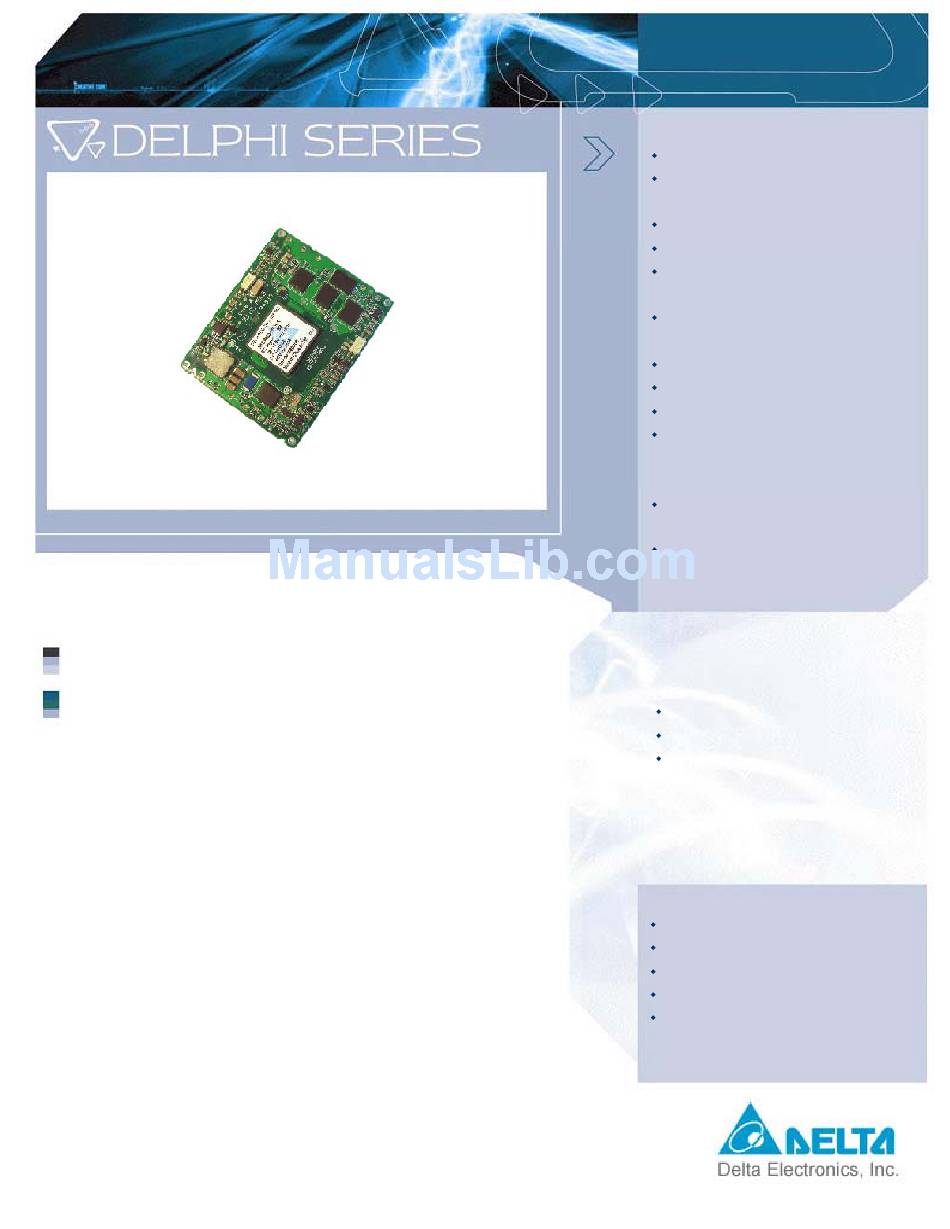

Delphi series l36sa, 2” x 1.6”, 50w family dc/dc power module: 18~75v in, 3.3v/15a out
Hide thumbs Also See for Series L36SA:

Advertisement

Quick Links

Delphi Series L36SA, 2" x 1.6", 50W Family
DC/DC Power Module: 18~75V in, 3.3V/15A out
The Delphi Series L36SA, 2" x 1.6", 18~75V input, single output,
isolated DC/DC converter is the latest offering from a world leader in
power systems technology and manufacturing - Delta Electronics,
Inc. This L36SA series provides up to 50 watts of power or 15A of
output current (3.3V) in an industry standard 2" x 1.6" form factor
and pinout. The Delphi L36SA series operates from a wide 18~75V
(4:1) input voltages. With creative design technology and
optimization of component placement, these converters possess
outstanding electrical and thermal performances, as well as
extremely high reliability under highly stressful operating conditions.
All models are fully protected from abnormal input/output voltage,
current, and temperature conditions. The Delphi Series converters
meet all safety requirements with basic insulation. An optional heat
spreader is available for extended operation.
DATASHEET
DS_L36SA3R315_02142007
FEATURES
High Efficiency: 88% @ 3.3V/15A
Size: 49.6mm x 39.4mm x 8.9mm
(1.95"x1.55"x0.35")
Industry standard pin out
Fixed frequency operation
Input UVLO, OTP, Output OCP, OVP, (auto
recovery)
Monotonic startup into normal and
pre-biased loads
2250V isolation and basic insulation
No minimum load required
4:1 Input voltage range
ISO 9001, TL 9000, ISO 14001, QS 9000,
OHSAS 18001 certified manufacturing
facility
UL/cUL 60950 (US & Canada) Recognized,
and TUV (EN60950) Certified
CE mark meets 73/23/EEC and 93/68/EEC
directives.
OPTIONS
Positive On/Off logic
Sense
Heat spreader
APPLICATIONS
Telecom/Datacom
Wireless Networks
Optical Network Equipment
Server and Data Storage
Industrial/Testing Equipment
