Induction Cooktops
EW30IC60L S, EW30IC60L B
30" Induction Cooktop Specifications
Product Weight – 45 Lbs.
Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz,
fused on both sides of line with ground.
Connected Load (kW Rating) @ 240 / 208 Volts = 8.4 /7.3 kW
Amps @ 240 / 208 Volts = 35.0 /35.1 Amps
Recommended Circuit Breaker – 40 Amps
Always consult local and national electric codes.

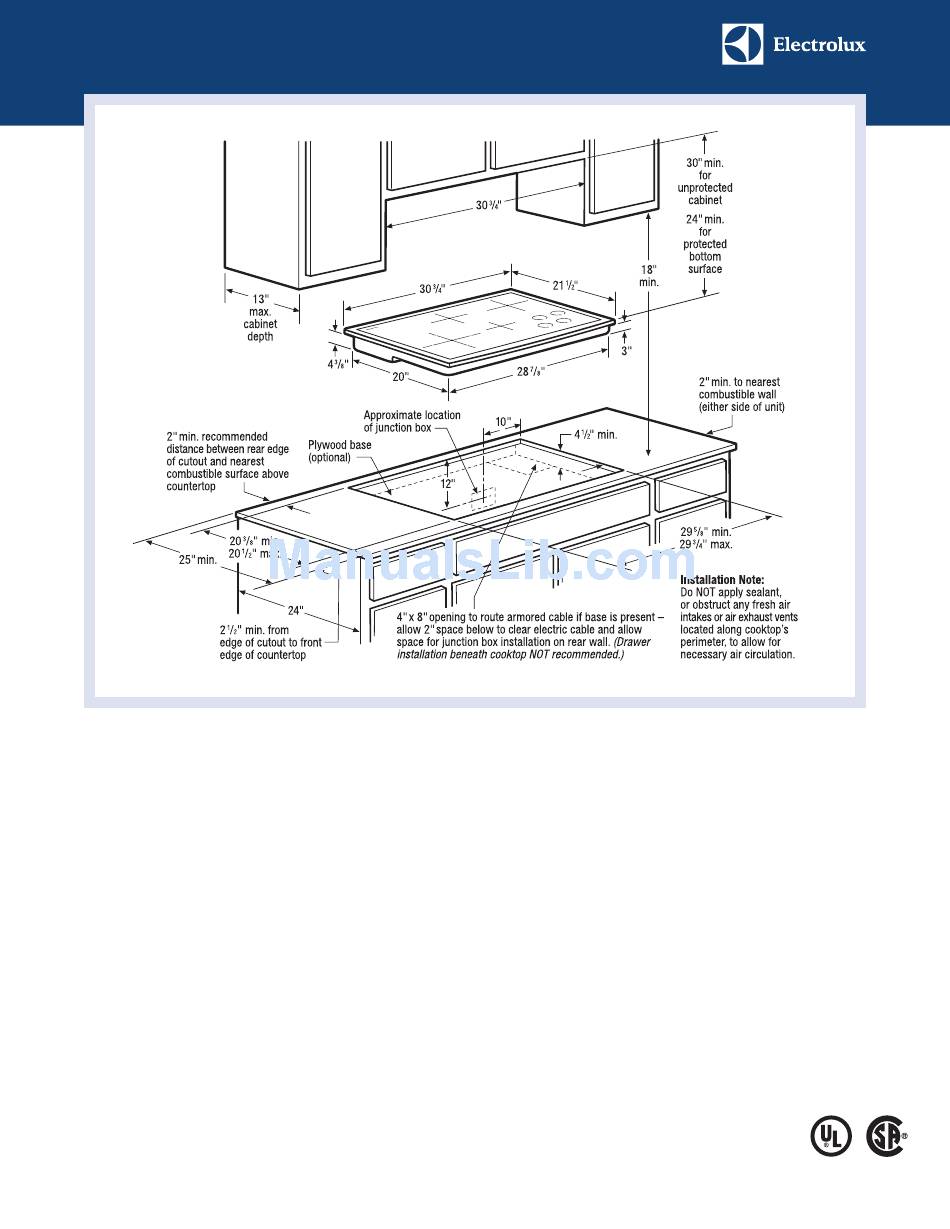

Allow 2" space beneath cooktop or optional platform to clear electrical
cable and allow space for installation of junction box on wall at back of
cooktop. Position center of junction box 10" inward from right side of
cooktop cutout, and 12" down from underside of countertop.
Overhead cabinetry should not exceed a 13" maximum depth.
Allow 30" minimum clearance between top of cooktop and bottom of
unprotected wood or metal overhead cabinetry.
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than 30-3/4".
Allow 24" minimum clearance when bottom of wood or metal overhead
cabinet is protected by not less than 1/8" flame-retardant millboard
covered with not less than No. 28 MSG sheet steel, 0.015" stainless
steel, 0.024" aluminum or 0.020" copper.
Electrolux Major Appliances, N.A.
10200 David Taylor Drive
Charlotte, NC 28262
USA
CANADA
5855 Terry Fox Way
Mississauga, ON L5V 3E4
EW30IC60L 06/12
1-877 -4electrolux (1-877 -435-3287)
1-800-265-8352
electroluxappliances.ca
© 2012 Electrolux Home Products, Inc.
Allow 2" minimum clearance between rear edge of cutout and nearest
combustible surface above countertop.
Allow 2" minimum clearance from edge of cooktop to nearest
combustible wall on either side of unit.
Do NOT apply sealant, or obstruct any fresh air intakes or air exhaust
vents located along cooktop's perimeter, to allow for necessary air
circulation.
To reduce risk of fire when using overhead cabinetry, install range hood
that projects horizontally a recommended minimum of 5" beyond
bottom of cabinets.
Induction Cooktop model EW30IC60L is approved to be used over any
Electrolux Electric Single Wall Oven. (Refer to Electric Cooktop Installation
Over 30" / 27" Electric Single Wall Oven Specifications page on web.)
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
Granite Countertop Installation Kit – (PN # 903061-9010).
electroluxappliances.com
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
