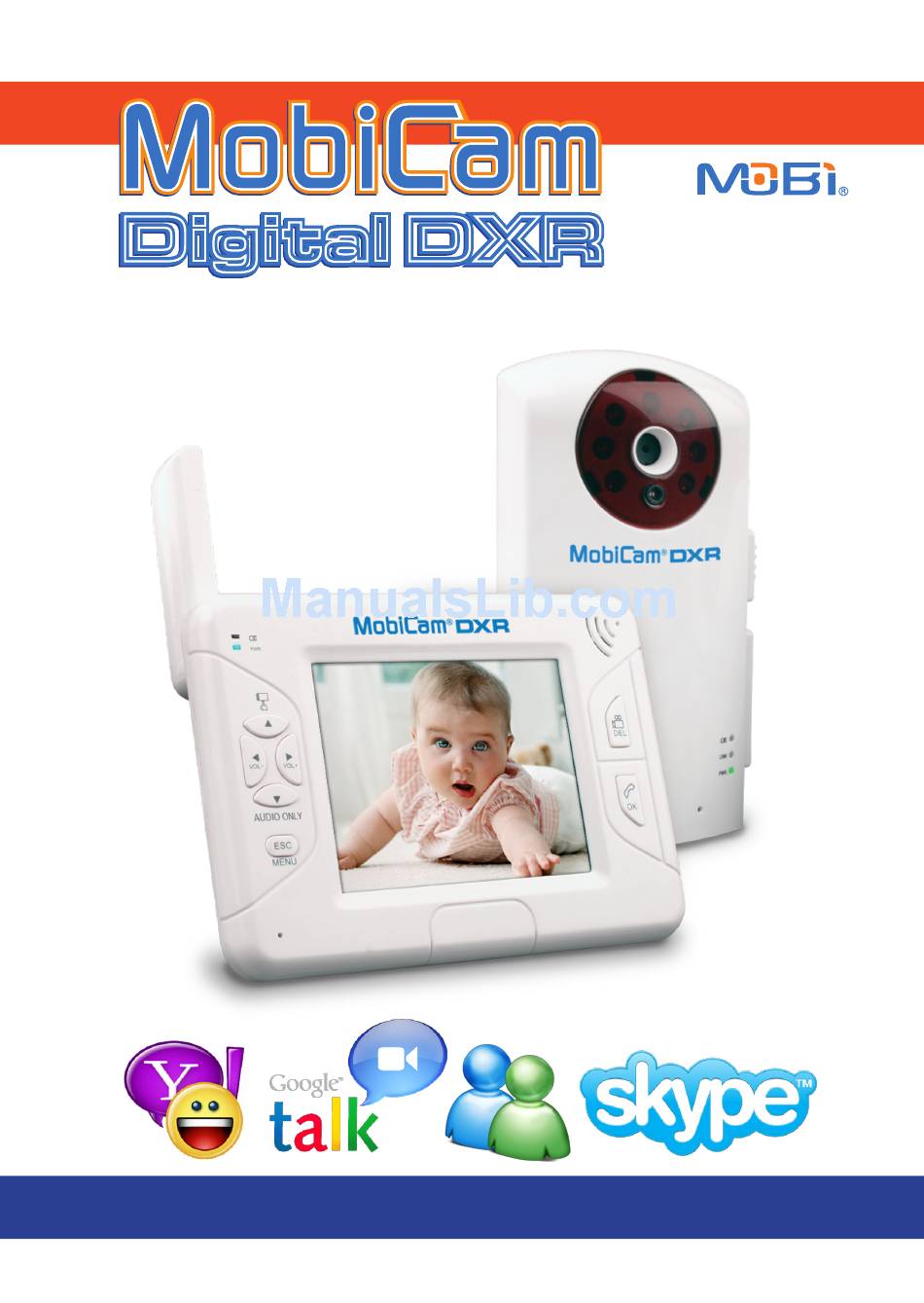

- Page 1 ® Digital DXR Digital DXR Digital DXR Wireless Audio/Video Monitoring System compatible with... Compatible w ith… 70204...
- Page 2 monitoring...
- Page 3 made easy...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Introduction Package Contents About 2.4 GHz Wireless Technology Consumer Guide to Product Safety Knowing your Receiver Knowing Your Camera Installation & Setup Monitor Operation 9-13 Recording Function Audio/Video & USB Operation Troubleshooting Radio Interference Advice Warranty Notes... -
Page 5: Introduction
INTRODUCTION Congratulations on the purchase of the MobiCam® Digital DXR Monitoring System, which brings you the latest in wireless technology. We are sure that you will be pleased with the quality and features of this product but recommend that you read these instructions carefully before use in order to fully benefit from its many features. -
Page 6: Package Contents
PACKAGE CONTENTS 1 x Monitor Unit (Receiver) plus built-in rechargeable battery 1 x Camera Unit (Additional Cameras - #70205, battery sold separately) 1 x Montor Power Cord 1 x Camera Power Cord 1 x USB Cable 1 x Camera Mount 1 x Set of mounting screws and anchors NOTE: If you find any of the contents are missing or should you need to order replacement parts, please contact the manufacturer or visit www.getmobi.com. -
Page 7: About 2.4 Ghz Wireless Technology
ABOUT DIGITAL WIRELESS TECHNOLOGY About 2.4 GHz Digital Wireless Signal This innovative digital wireless solution integrates advance Frequency Hop- ping Spread Spectrum (FHSS) technology. This technology greatly reduces the interference that comes from other devises using the same radio frequency (2.4 GHz), e.g. -
Page 8: Consumer Guide To Product Safety
CONSUMER GUIDE TO PRODUCT SAFETY Please read this instruction manual before using your MobiCam® Digital DXR System. When using electrical appliances, basic safety precautions should al- ways be followed. Also please keep this manual for future reference. • This product is not intended to be used as a medical monitor and its use should not replace adult supervision. -
Page 9: Consumer Guide To Product Safety
CONSUMER GUIDE TO PRODUCT SAFETY • Always use transmitter and receiver where there is adequate ventilation. To prevent overheating, keep away from heat sources such as radiators, heat registers, stoves, or other appliances that produce heat. • Use only a dry or very lightly dampened cotton cloth to keep the Camera and Monitor units free of dust. -
Page 10: Knowing Your Receiver
KNOWING YOUR MONITOR Battery Indicator Green LED = Battery is charging Red LED = Battery is low LED OFF = Battery is fully charged Power On Indicator Cursor Up / Channel Switch / Quad Mode button Cursor Left / Volume Down button Cursor Down / Audio Only button Cursor Right / Volume Up button Menu / Esc button... -
Page 11: Knowing Your Camera
KNOWING YOUR CAMERA Lens Infrared LEDs Battery Indicator (battery sold separately) Link Indicator Blinking LED = LED will blink indicating camera is ready to be paired Blue LED = Camera is paired to the receiver LED OFF = Camera is on standby mode Power On Indicator Microphone Power Switch... -
Page 12: Installation & Setup
INSTALLATION & SETUP Camera Start-Up 1. Connect power cable to Camera’s DC IN jack, then plug its power supply adapter into wall outlet. 2. Slide [Power Button] once to turn ON the camera. NOTE: Use only the 5V/1A power adaptor provided in the package. -
Page 13: Monitor Operation
MONITOR OPERATION Time Setting To set the time and date on your monitor, press the Menu button (no. 7, pg. 6), use the Cursor buttons to go to System Setup and press the OK button to enter the Time Setting, use the Cursor buttons to change the setting and press OK again to save. - Page 14 MONITOR OPERATION SD Card Format To format an SD memory card press the Menu button (no. 7, pg.6) go to SD Card, press OK and use the Cursor buttons to select No or Yes. Your MobiCam® DXR is formatted to be used with 2GB to 16GB SD memory cards (not included with the system).
- Page 15 MONITOR OPERATION Brightness To adjust the brightness on your display press the Menu button (no. 7, pg. 6), use up/down Curser buttons to go to Brightness and press OK (no. 9, pg.6). Use the left and right Cursor buttons to adjust. Once the brightness has been adjusted press the Menu button again to exit this setting.
- Page 16 MONITOR OPERATION VOX Sensitivity During Voice Activation (VOX) your monitor will go on standby mode and stop transmit- ting picture and sound. Once the camera senses sound the monitor will automatically turn on and begin producing picture and sound. You can activate VOX by pressing the Menu button (no.
-
Page 17: Monitor Operation
MONITOR OPERATION Camera ON/OFF Once you have paired extra cameras to your monitor, you can turn off any camera you do not wish to scan. Press the Menu button (no.7, pg. 6), go to Camera Setup, and use the Cursor buttons to select a camera you wish to turn off and press OK. Factory Default To reset your monitor to factory settings press the Menu button (no.7, pg. -
Page 18: Recording Function
RECORDING FUNCTION You can record live video directly within your monitor by inserting an SD card into the SD card slot (no. 11, pg. 6). You can begin recording manually or by setting up VOX to begin recordings through sound activation. To record manually simply press the Record button (no. -
Page 19: Audio/Video & Usb Operation
USB OPERATION USB Output Your monitor is equipped with a USB output so you can connect your monitor to your computer allowing you to capture video and sound from the camera transmission. NOTE: The monitor screen turns off automatically when USB cable is used. The screen will turn back on when the cable is removed. -
Page 20: Troubleshooting
TROUBLESHOOTING Problem Solution System shows “ No Signal” • Check the power cord connection and the battery power. • Pair your camera • Place the camera close to the moni- • If possible remove major obstacles between camera and monitor. Low or unstable signal •... -
Page 21: Radio Interference Advice
RADIO INTERFERENCE ADVICE FCC Compliance Statement: This device complies with Part 15 of the FCC rules. Operation is subjected to the following two conditions: (1) this device may cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 22: Warranty
WARRANTY Mobi Technologies, Inc. warrants this product to be free from defects in mate- rial and workmanship for a period of ninety (90) days from the date of pur- chase. Should this product prove to be defective at any time during the war- ranty period, Mobi Technologies, Inc. -
Page 23: Notes
NOTES... - Page 24 Mobi Technologies, Inc. 5913 Blackwelder St Culver City CA 90232 Toll Free Number (877) 662-4462 www.getmobi.com Mobi® and MobiCam® are registered trademarks of Mobi Technologies, Inc. © 2011 Mobi Technologies, Inc. All Rights Reserved...
