Mobi Technologies MOBICAM Digital Instruction Manual

Wireless monitoring system
Hide thumbs Also See for MOBICAM Digital:

Advertisement

Table of Contents

70062

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOBICAM Digital and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mobi Technologies MOBICAM Digital

Summary of Contents for Mobi Technologies MOBICAM Digital

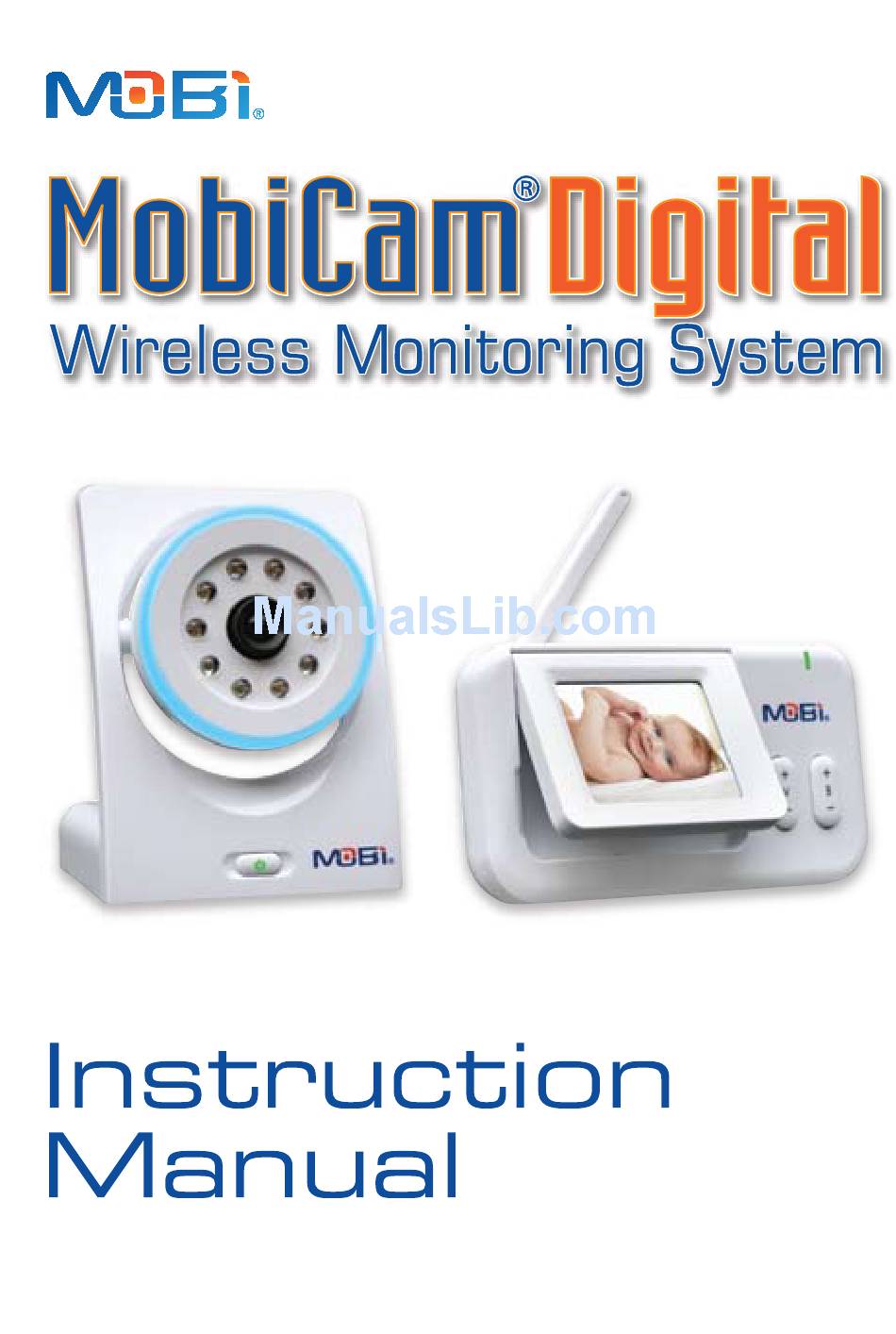

  • Page 1 70062...

  • Page 2: Table Of Contents

    Table of Contents Package Contents Features FCC Regulation Monitor Features & Controls Camera Features & Controls Important Safety Instructions Battery Installation & Set-Up Camera Operation & Installation Monitor Operation & Installation Troubleshooting Warranty...

  • Page 3: Package Contents

    Introduction Congratulations on the purchase of the MobiCam Digital Wireless Video Moni- ® toring System, which incorporates the latest in wireless technology. We are sure that you will be pleased with the quality and features of this product. We recom- mend that you read these instructions carefully before use.

  • Page 4: Features

    Features • DigiLock Wireless with (FHSS) technology for private and secure, noise-free ™ performance • No installation needed, ready to use out of the box • Compact design for easy portability • Transmission range up to 900 ft. outdoors and 450 ft. indoors Note: Actual range can vary depending on the environment.

  • Page 5: Fcc Regulation

    FCC Regulation This equipment has been tested and found to comply with the requirements of the FCC. These requirements are designed to provide reasonable protection against harmful interference in a residential installation. This equipment gener- ates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 6: Monitor Features & Controls

    Monitor Features & Controls Monitor Unit Front 1 - 2.4” Color LCD Screen 2 - Volume Control 3 - Brightness Control 4 - Power ON LED Indicator 5 - LCD and Power ON/OFF 6 - AV Output 7 - DC Power input Monitor Unit Rear 8 - Speaker 9 - Tilt Screen Release...

  • Page 7: Camera Features & Controls

    Camera Features & Controls Camera Unit Front 13 - Night Light 14 - IR Night Vision LED’s 15 - Lens 16 - Microphone 17 - Light Sensor 18 - Power ON/OFF with LED Camera Unit Bottom 19 - Link/Code Key 20 - DC Power Input 21 - Night Light Mode Switch 22 - Voice Activation (VOX)

  • Page 8: Important Safety Instructions

    Important Safety Instructions Please read this instruction manual before using your MobiCam Digital Wire- ® less Monitor. When using electrical appliances, basic safety precautions should always be followed. Please keep this information for future reference. • Periodically examine this product for damage to the cord, housing or other parts that may result in the risk of fire, electric shock or injury.

  • Page 9: Battery Installation & Setup

    • Remove the battery from the Monitor during long periods of non-use. • Unplug the AC adaptors from the Monitor and Camera during periods of non use. To disconnect from the power supply, grip the transformer and pull from the power socket. Never pull by the cord. •...

  • Page 10: Camera Operation & Installation

    Camera Operation & Installation Power ON/OFF To turn ON the camera unit, press the ON/OFF button located at the front of the camera (18) for about 1 second or until back lighting of the switch is turned on. CAMERA MODES: Voice Activation Mode (VOX) Voice Activation (VOX) mode allows your camera to go to sleep when there is no sound in the room.

  • Page 11: Monitor Operation & Installation

    Monitor Operation & Installation NOTE: For best performance it is recommended to keep units at least 7-8 feet away from other wireless devices. Power ON/OFF To turn on the monitor unit, slide the LCD Power On/Off switch (5), located on the right side of the monitor, to the “ON”...
  • Page 12 • Slide the channel selection switch (11) to select the desired Channel (A, B, C). • Press and hold the “+” brightness button marked B (3) and turn the monitor ON (5) simultaneously. • The monitor will display the word “PAIRED” •...
  • Page 13 Brightness Control & Volume Control The brightness control of the LCD can be adjusted by pressing the Brightness Control Button (“B”) located on the front of the Monitor (3). Press the “+” to increase and “–” to decrease the brightness of the LCD. The volume control of the LCD can be adjusted by pressing the Volume Control Button (“V”) located on the front of the Monitor (2).

  • Page 14: Troubleshooting

    Troubleshooting NORMAL SOLUTIONS PROBLEM Screen turns on and off • The “VOX” mode is selected on the camera, when there is no noise detected by the camera it stops transmitting to save power. To turn off select “OFF” under the “VOX” settings switch.

  • Page 15: Warranty

    ® from the place of purchase. Purchaser is responsible for shipping the product to Mobi Technologies, Inc. at the address indicated below and for all associ- ated freight and insurance cost. This warranty does not cover damage caused by accident, misuse, abuse, improper maintenance, or unauthorized modifica- tion.
  • Page 16 Expand Your Monitoring Possibilities... The available MobiCam Digital ® Additional Camera (#70063, sold separately) can be added to your system (for a total of 2 or 3) so you can switch between them, CAM-1 either automatically, or at the touch of a button. CAM-3 CAM-2 And you can monitor picture and...
