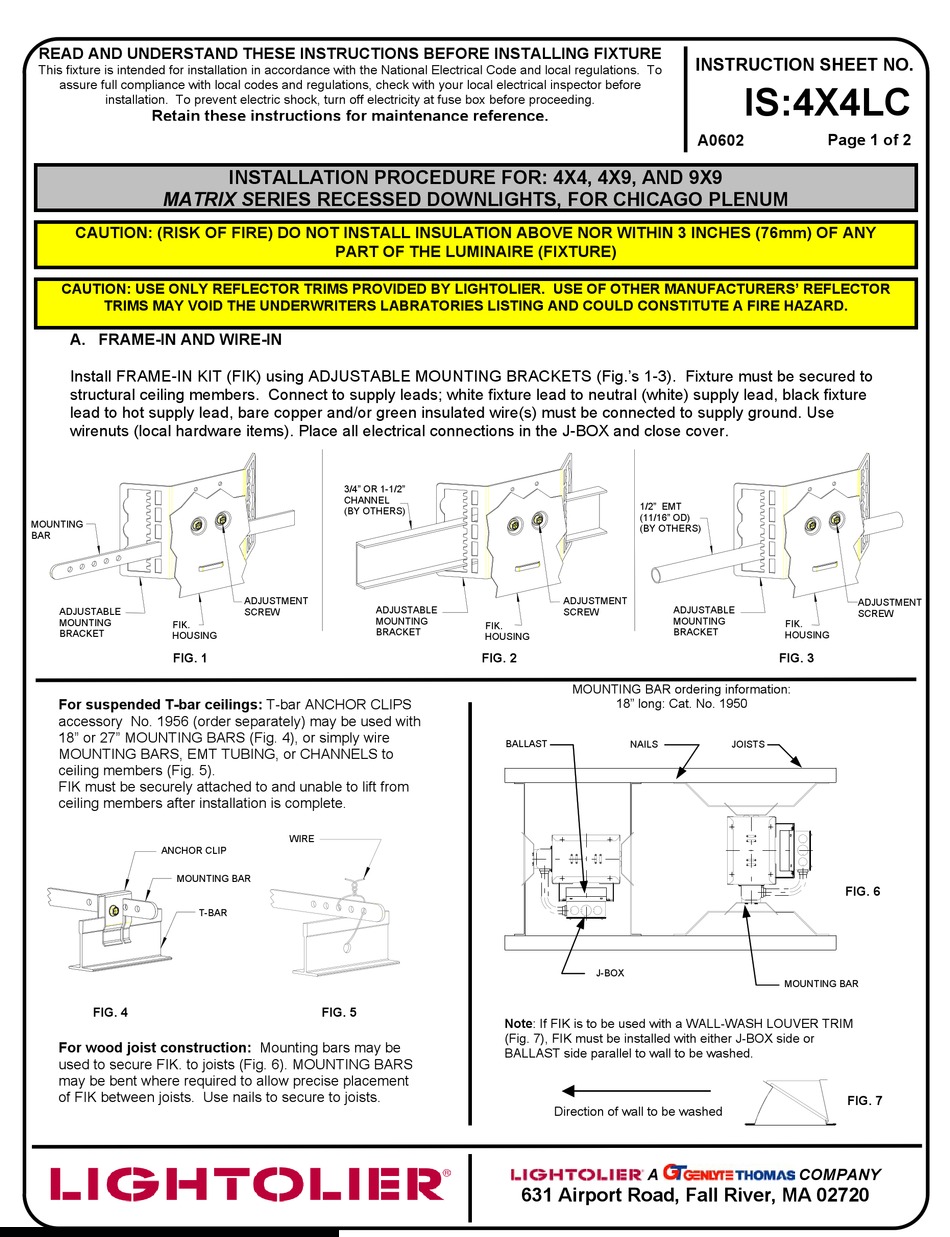

Lightolier 4X4 MATRIX SERIES Installation

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE
This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To
assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electric shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.
MATRIX SERIES RECESSED DOWNLIGHTS, FOR CHICAGO PLENUM
CAUTION: (RISK OF FIRE) DO NOT INSTALL INSULATION ABOVE NOR WITHIN 3 INCHES (76mm) OF ANY
CAUTION: USE ONLY REFLECTOR TRIMS PROVIDED BY LIGHTOLIER. USE OF OTHER MANUFACTURERS' REFLECTOR
TRIMS MAY VOID THE UNDERWRITERS LABRATORIES LISTING AND COULD CONSTITUTE A FIRE HAZARD.
A. FRAME-IN AND WIRE-IN
Install FRAME-IN KIT (FIK) using ADJUSTABLE MOUNTING BRACKETS (Fig.'s 1-3). Fixture must be secured to
structural ceiling members. Connect to supply leads; white fixture lead to neutral (white) supply lead, black fixture
lead to hot supply lead, bare copper and/or green insulated wire(s) must be connected to supply ground. Use
wirenuts (local hardware items). Place all electrical connections in the J-BOX and close cover.
MOUNTING
BAR
ADJUSTABLE
MOUNTING
FIK.
BRACKET
HOUSING
FIG. 1
For suspended T-bar ceilings: T-bar ANCHOR CLIPS
accessory No. 1956 (order separately) may be used with
18" or 27" MOUNTING BARS (Fig. 4), or simply wire
MOUNTING BARS, EMT TUBING, or CHANNELS to
ceiling members (Fig. 5).
FIK must be securely attached to and unable to lift from
ceiling members after installation is complete.
ANCHOR CLIP
MOUNTING BAR
T-BAR
FIG. 4
For wood joist construction: Mounting bars may be
used to secure FIK. to joists (Fig. 6). MOUNTING BARS
90°
may be bent where required to allow precise placement
of FIK between joists. Use nails to secure to joists.
INSTALLATION PROCEDURE FOR: 4X4, 4X9, AND 9X9
PART OF THE LUMINAIRE (FIXTURE)
3/4" OR 1-1/2"
CHANNEL
(BY OTHERS)
ADJUSTMENT
ADJUSTABLE
SCREW
MOUNTING
BRACKET
WIRE
FIG. 5
27" long: Cat. No. 1951
ADJUSTMENT
SCREW
FIK.
HOUSING
FIG. 2
MOUNTING BAR ordering information:
BALLAST
Note: If FIK is to be used with a WALL-WASH LOUVER TRIM
(Fig. 7), FIK must be installed with either J-BOX side or
BALLAST side parallel to wall to be washed.
Direction of wall to be washed
631 Airport Road, Fall River, MA 02720
INSTRUCTION SHEET NO.
IS:4X4LC
A0602
1/2" EMT
(11/16" OD)
(BY OTHERS)
ADJUSTABLE
MOUNTING
BRACKET
18" long: Cat. No. 1950
NAILS JOISTS
J-BOX
A
Page 1 of 2
ADJUSTMENT
SCREW
FIK.
HOUSING
FIG. 3
FIG. 6
MOUNTING BAR
FIG. 7
COMPANY
