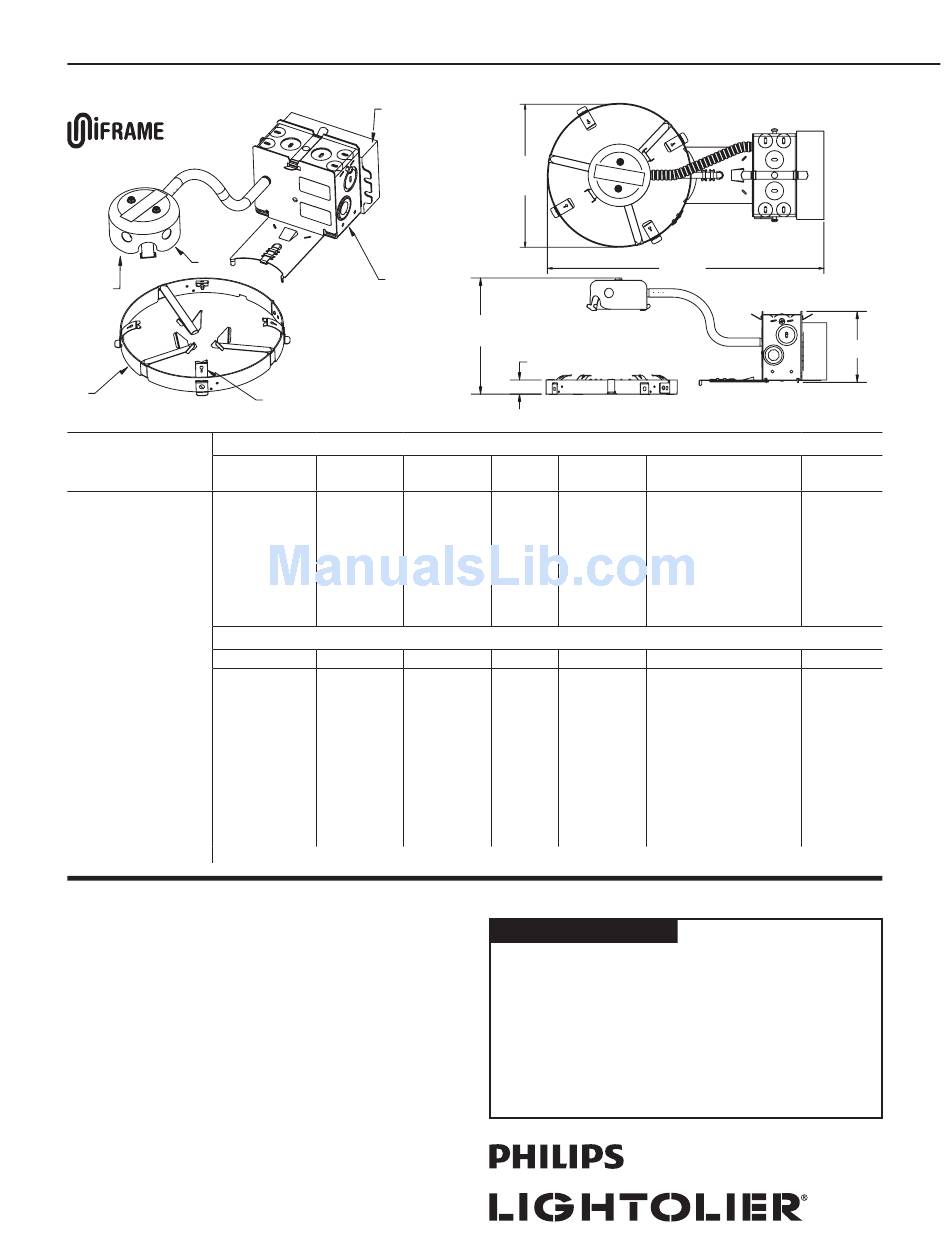

Lightolier 1101FRD Specification

Page 1 of 2 6 ¾" Aperture, 1 Light, Compact Fluorescent, Non-IC, Dimming, Remodeler, Frame-In Kit
6
5 INSIDE
1
Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.

Uniframe

Uniframe
™
Vertical Open

Frame-In Kit

1101FR264MX1 1101CL
(Advance Mark X- 120V) 1101CD
26W Quad/ Triple, GX24q-3 1101WH
120V- 0.26amp max
32W Triple, GX24q-3
120V- 0.32amp max
42W Triple, GX24q-4
120V- 0.41amp max
Universal Series Reflector Trims (Reference Trim Spec Sheet for Recommended Lamping)
1101FR264MX2
Performance Cone
(Advance Mark X- 277V)
1113CFL
26W Quad/ Triple, GX24q-3
1113CDCFL
120V- 0.11amp max
32W Triple, GX24q-3
120V- 0.14amp max
42W Triple, GX24q-3
120V- 0.18amp max
*Add NM suffix to catalog number for Natural Metal flange and finish.

Features

1. Uniframe Mounting Ring: .032" (#22ga.) thick Galvanized Steel.
™
Accommodates existing ceilings up to 2" thick. Attaches securely to any type
of ceiling material without tools using (3) mounting straps provided. Includes
adhesive backed aperture template.
2. Trim Clips: "Push In / Twist Out" clips hold reflector flush to ceiling.
3. Junction Box: 2" x 4" x 3-1/2" (22cu.in.) .032" (#22ga.) galvanized steel. UL
Listed for 90˚ C supply wire. Attaches to mounting ring without tools.
4. Ballast: 120V or 277V UL listed Electronic Dimming Ballast, 100% to 5% full
range continuous dimming. End of lamp life protection, class "P" thermally
protected, class "A" sound rating.
5. Socket: Four-pin base, molded thermoplastic socket, prewired with No. 18
AWM leads to ballast.
6. Socket Housing: .036" (#20ga.) Galvanized Steel housing attaches to
reflector trim by spring clip for precise optic alignment.
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • A0409
Performance Recessed CFL Downlighting
4
3
FOR O.A HEIGHT SEE
TRIM SPECIFICATION
2
Compact Fluorescent Performance Series Reflector Trims
™
Vertical Wall Vertical Wall
Wash - Single Wash - Double
1101CLSW 1101CLDW
1101CDSW 1101CDDW
1101WHSW 1101WHDW
Cone Satin Cone
1112* 1108*
1113* 1110*
1113BK*
1113WH
1113CD*
1145
1146
1146CD
1143
1144
1144CD
7 1/8"
CEILING
CUTOUT
13 9/32"
3/4"
Horizontal Horizontal Wall Horizontal Wet Location
Open Wash - Single Lensed / Diffused
1101HCL 1101HCLSW Clear Lens Fresnel
1101HCD 1101HCDSW 1101HCLC 1101HCLF
1101HWH 1101HWHSW 1101HCDC 1101HCDF
1101HWHC 1101HWHF
Opal Lens
1101HCLO
1101HCDO
1101HWHO
Baffle Wall Wash Wet Location
1105* 1135 1121
1105BNM 1135WH 1124
1105WH 1195 1134
1176 1196 1177SH
1176WH 1196CD 1178SH

Labels

cULus Listed. Suitable for Damp Locations.

Job Information

Job Name:
Cat. No.:

Lamp(s):

Notes:

1101FRD
3 3/4"
Horizontal
Cross Blade
1101HACB
1101HWHCB
Type:
