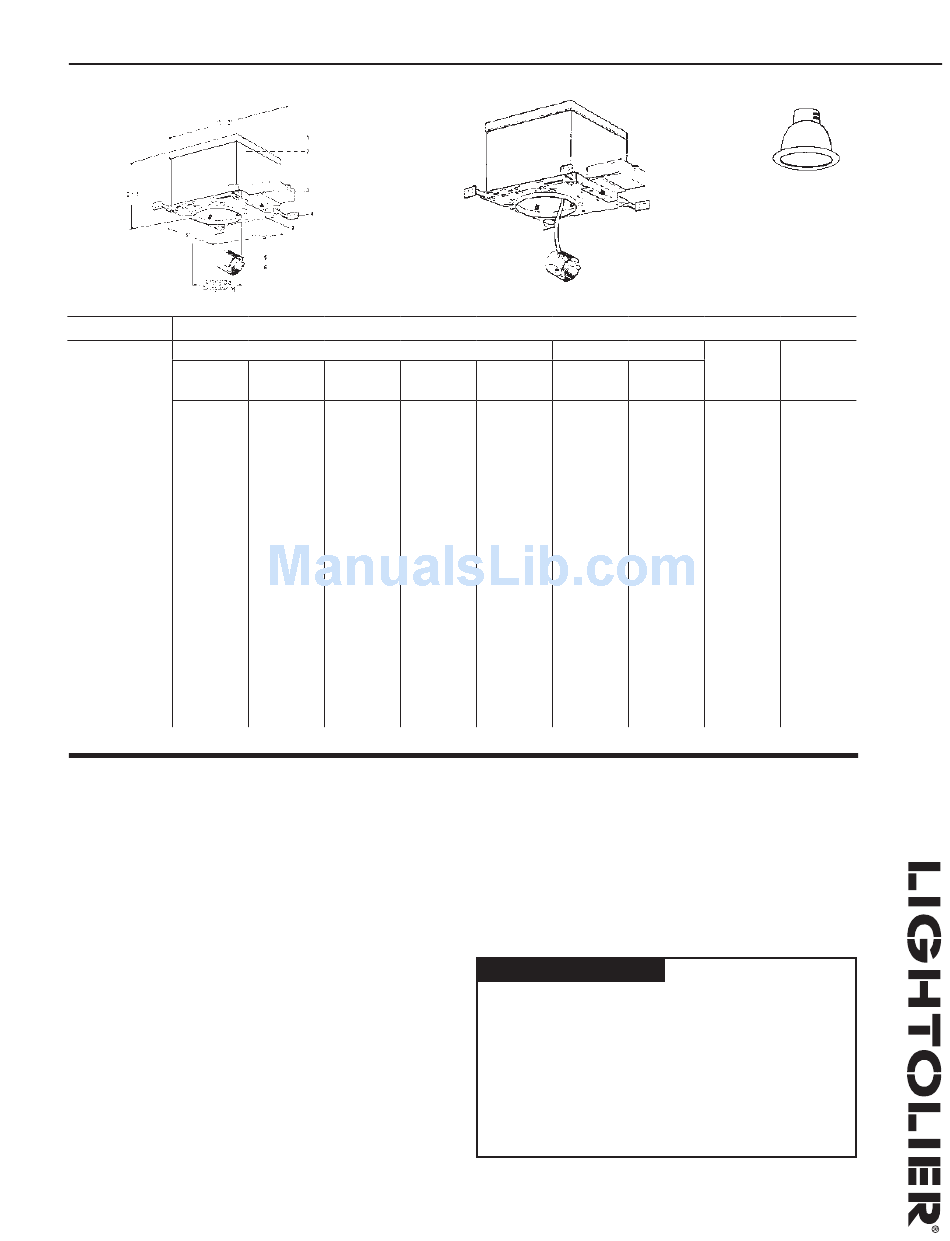

Lightolier Lytecaster 1100DAICM Specification

Page 1 of 1
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit Reflector Trims — See Individual Reflector Trim Specification Sheets
1100DAICM
Reflector
1143
1144
1144CD
1145
1146
1146CD
Cone:
1112†
1113†
1113BK†
1113CD†
1113WH
†Add NM to catalog number for Natural Metal flange finish.
Features
1. Housing: Walls .032" aluminum. Cover .026" galvanized steel. UL listed
for direct contact with thermal insulation. AirSeal
leakage to less than 2 CFM at 1.57 PSF, which complies with Model Energy
Code (Section 602.3.3) and the Washington State Energy Code (Section
502.4) and reduces heat loss and condensation in ceiling. Access door for
inspection of junction box.
2. Mounting Frame: .036 (#20 ga.) galvanized steel. Accommodates all
ceilings up to 1" thick. 3/8" deep integral lip. Four slots are positioned 90°
apart to simplify alignment. Push-in/twist-out rotoclips hold reflector flush to
ceiling.
3. Junction Box: 2" X 4" X 4": .063" (#14 ga.) galvanized steel. UL listed for
maximum of 6 No. 12 ga., 90° C through branch circuit conductors. Quick
release "L" shaped cover for outside access to wiring. Access door inside
of housing allows easy inspection of wiring without removal of housing.
Integral cable clamps permit attachment of nonmetallic, Romex
need for additional connectors.
4. Mounting Bars: .059" (#16 ga.) galvanized steel. Bars pivot for easy
attachment and wire-in below ceiling line. Bars extend to accommodate 16"
to 24" O.C. joist spacing and feature integral nail for secure attachment to
wood construction. Attaches to T-bar ceilings without the need of accessories.
5. Socket Housing: Galvanized steel.
6. Socket: Porcelain medium base; nickel plated screw shell.
Pre-wired with #18 ga. SF1 leads to junction box.
7. Thermal Protector: Meets NEC and UL requirements. Located inside housing.
Options & Accessories
Extra-Thick Ceiling Mounting Ring:
Lytecaster Recessed Downlighting
®
6 3/4" Aperture Deep Insulated Ceiling Incandescent Frame-In Kit
Open Downlight
Satin Baffles Basic
Cone White
1108† 1105† 1170M1
1110† 1105WH 1171
1176
1176WH
1179M1
1179WH
1105BNM
housing minimizes air
®
without the
®
1967A - up to 2" thick ceiling.
Frame-in Kit
Adjustable
Cross Recessed Recessed
Blade Line Volt. Low Volt.
1132 1127† 1152
1127BNM 1155
1127BK† 1155WH
1127WH 1161
1127CD† 1161WH
1129† 1163
1129CD† 1164
1129WH
1129CL†
1129BK†
1129GD†
1138†
1148†
Eyeball:
1122
1122WH
1123
1123WH
1182
Options & Accessories (continued)
277V Remote Step-Down Transformer:
Labels
UL Type I.C. (Suitable for Damp Locations);
Complies with Air Leakage Requirements as stated in the Model Energy Code,
California Title 24 and the Washington State Energy Code.
AirSeal is a registered trademark of Lightolier.
®
Romex ® is a registered trademark of General Cable Industries Inc.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • H0711
1100DAICM
Reflector Trim
Enclosed Wall
Diffuser Washer
1121 1135
1124 1135WH
1126 1185
1128 1186
1134 1186WH
1177SH 1195
1178SH 1196
1190 1196CD
7997 - 277V down to 120V
300W max. load
Type:
