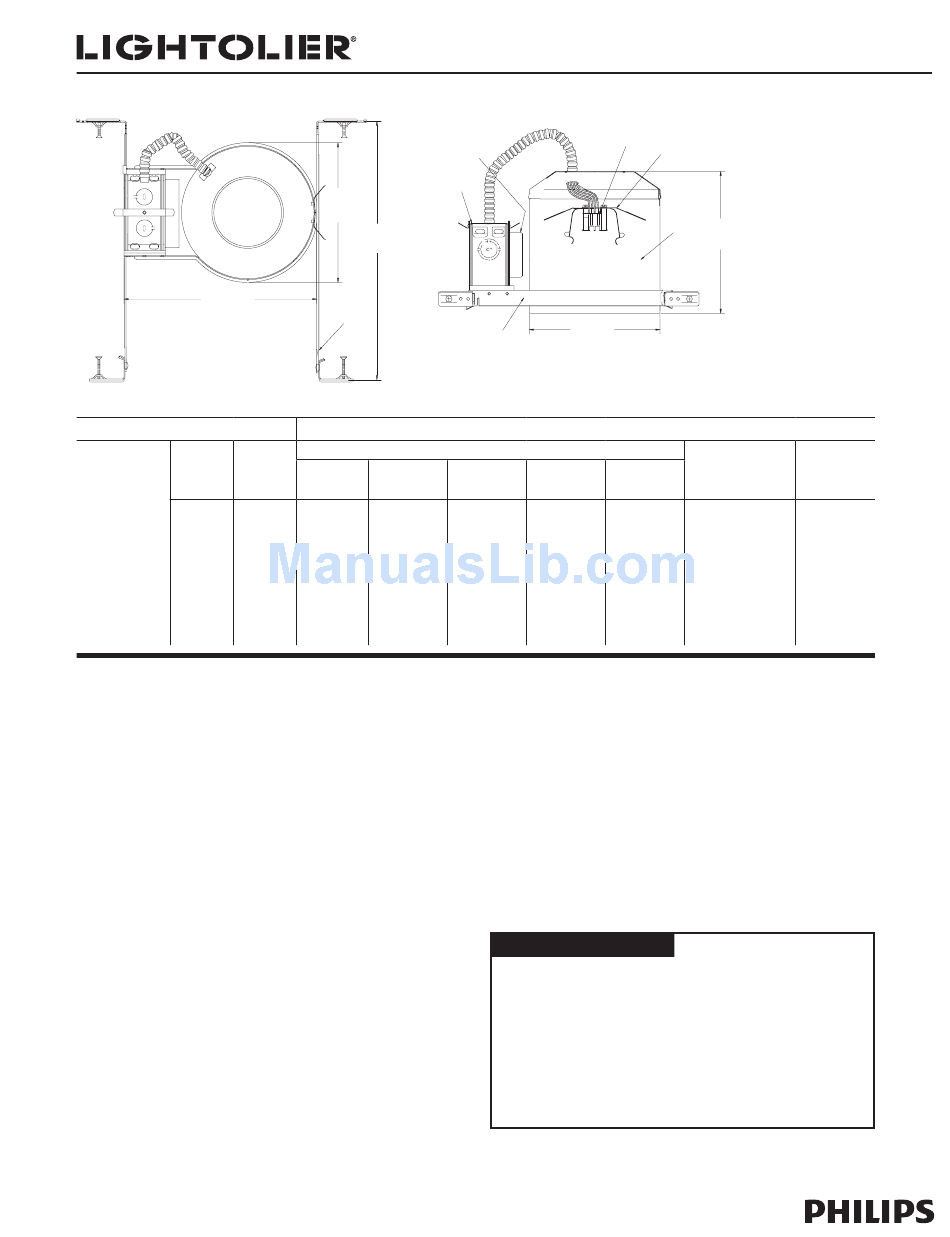

Lightolier 1104F2632ES Specification

Page 1 of 1
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Frame-In Kit
Voltage
120V
1104F2632ES
1104F2632ESN

Features

1. Housing: .032" (#20 ga.) UL listed for direct contact with thermal insulation.
Allows installation in ceilings up to 2" thick. Can be removed for access
to junction box, ballast and ceiling plenum. AirSeal
leakage to less than 2 CFM at 1.57 PSF (or 75pa), which complies with Model
Energy Code (Section 602.3.3) and Washington State Energy Code (Section
502.4) and reduces heat loss and condensation in ceiling.
2. Mounting Frame: .048" (#18 ga.) galvanized steel. Locks into position along
length of mounting bars with locking spring and bendable slot. (3) slots 90°
apart simplify alignment.
3. Junction Box: 2" X 4" X 3 1/2" (22 cu. in.) .032" (#22 ga.) galvanized steel. UL
listed for branch circuit wiring supplying connected luminaires. Integral cable
clamps permit attachment of non-metallic (#12 or #14 ga.) Romex
without tools or additional connectors.
4. Mounting Bars: .059" (#16 ga.) galvanized steel. Bars pivot for easy
attachment and wire-in below ceiling line. Bars extend to accommodate 16"
to 24" O.C. joist spacing. Bars can accommodate 9" O.C. joist spacing after a
slight field modification (see Instruction Sheet). Features integral
self-tapping phillips screws for secure attachment to wood or metal
construction. Attaches to T-bar ceilings without the need of accessories.
5. Socket Housing: Trim retaining spring secures trim to any height on housing
wall.
6. Socket: (4 Pin, GX24q-3) base, molded thermo-plastic. Pre-wired with #18
AWG leads to junction box.
7. Ballast: Electronic 120V, end of life protected, FCC class "B" consumer
limits, class "A" sound rating. Energy Star

Electrical

Input Watts: 27
Amps: .47
Ballast Factor: 1.0
Power Factor: .98
Lightolier is a Philips group brand
6 3/4" Aperture
7 5/16"
OVERALL
WIDTH
13" MIN.
24" MAX.
10 3/4"
OVERALL
LENGTH
4
Reflector Trims — See Individual Reflector Trim Specification Sheets
Lamp
Anodized Anodized
Reflector Cone
26/32W 1143*
1112
Quad or 1144*
1112NM
Triple 1144CD*
1113
Tube
1113BK
1113BKNM
1113CD
1113CDNM
1113NM
1113WH
housing minimizes air
®
qualified.
®

Recessed Downlighting

0
1 Lt 26/32W Quad/Triple Tube Compact Fluorescent
®
7
3
APERATURE
2
Ceiling Opening 7" diameter
Open Downlight
Satin
Baffles
Cone
1108 1105
1108NM 1105BNM
1110 1105NM
1110NM 1105WH
1176
1176WH
Electrical (cont.)
Max THD %: 10
Min Start Temp: 0˚F/ -18˚C
Options & Accessories
AirSeal Kit: LAS56
®
Note: Use only if factory installed tape or knockouts are removed from vertical
adjustment slots in housing wall.

Labels

† UL (Type IC Suitable for Damp Locations)
Complies with Air Leakage Requirements stated in the Model Energy Code,
California Title 24 Code and the Washington State Energy Code.
cable
®
Romex is a registered trademark of General Cable Industries Inc.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2011 Philips Group • E0711
1104F2632ES
6
5
7 1/2"
1
OVERALL
HEIGHT
7"
Enclosed
Basic
Diffusers
White
1171* 1121
1170M1 1124
1134
1177SH**
1178SH
1190**
* Recommend Triple Tube Lamp.
** Use 26W Triple Tube Lamp Only.
†
(Optional)
Type:
IC Frame-In Kit
Wall
Washer
1185**
