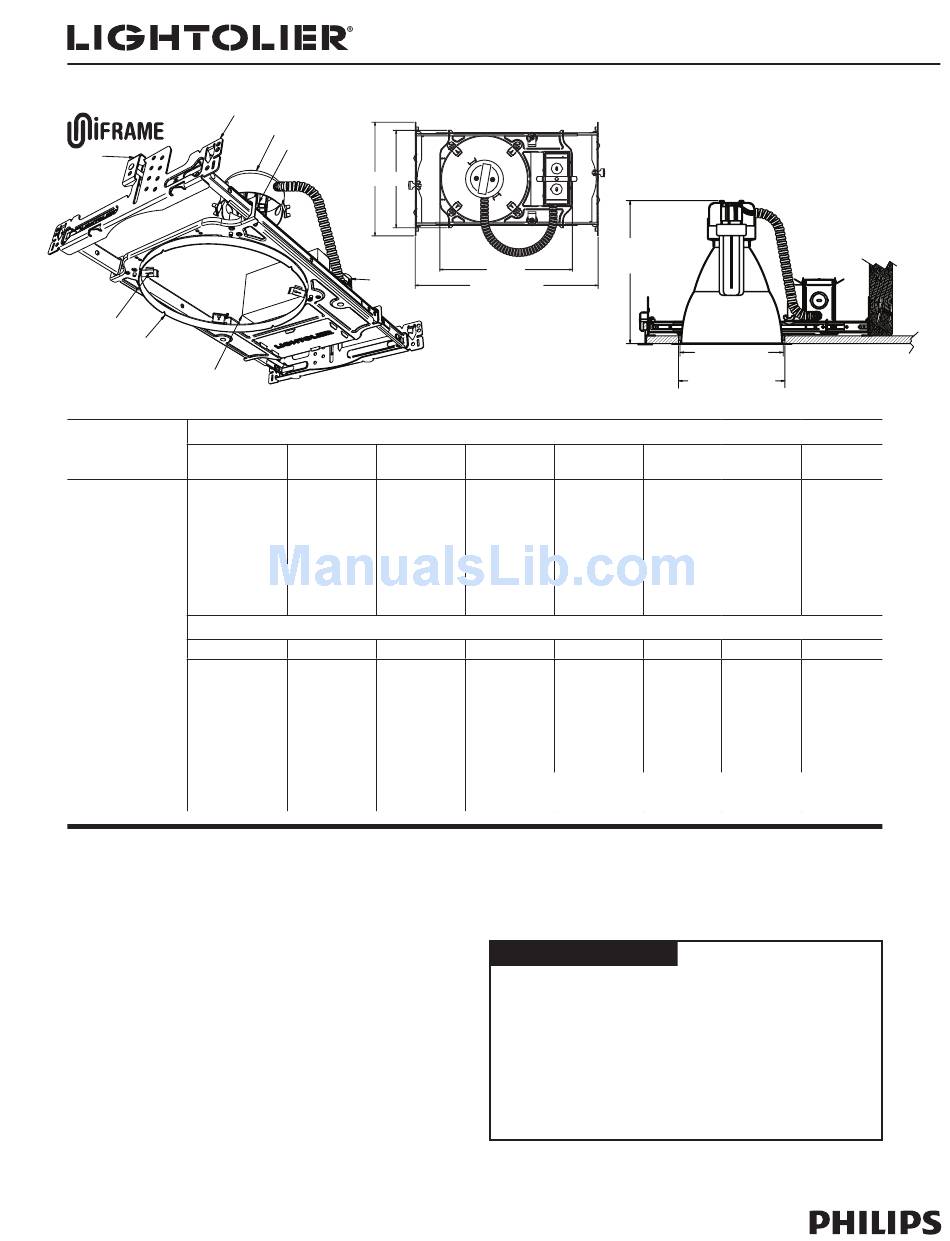

Lightolier UniFrame 1101FDL Specification

Page 1 of 1
4
2
1
Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.
Uniframe
™
Frame-In Kit
1101FD26L1
(Lutron** 26w - 120v)
1101FD26L2
(Lutron** 26w - 277v)
26w Quad/Triple
GX24q-3 Base
120v – 0.26amp max
277v – 0.12amp max
1101FD32L1
(Lutron** 32w - 120v)
1101FD32L2
(Lutron**32w - 277v)
32w Triple
GX24q-3 Base
120v – 0.31amp max
277v – 0.13amp max
Features
1. Mounting Frame: .036" (#20ga.) Galvanized Steel. Accommodates all ceil-
ings up to 1-1/2" thick; including existing or inaccessible areas.
2. Trim Clips: "Push In / Twist Out" Stainless Steel clips hold reflector flush to
ceiling.
3. Junction Box: 2" x 4" x 3-1/2" (22cu.in.) .032" (#22ga.) galvanized steel. UL
Listed for maximum of 8 (#12ga.) through branch circuit conductors.
4. UniFrame™ Mounting System – Grid Ceiling: Tool free mounting in grid
ceilings. .036" (20ga.) Galvanized Steel interlocking slide bars adjust to 24-
1/8" long accommodating 24" O.C. Ceiling Grid. Adjustable speed clamps for
positive attachment to grid ceiling systems.
5. UniFrame™ Mounting System – Wood Joist Ceiling: Integral nailing
tabs, alignment guides, fastener holes and bendable strapping guides for
wood joist installation. Galvanized Steel interlocking slide bars adjust from
12-15/16" to 24-1/8" long to accommodate 16" and 24" O.C. joist
spacing, with or without strapping.
6. Ballast: 120V – 277V UL Listed Electronic Ballast, end of lamp life protec-
tion, class "P" thermally protected, class "A" sound rating.
7. Socket: Four-pin base, molded thermoplastic socket, prewired with No. 18
AWM leads to ballast.
8. Socket Housing: .036" (#20ga.) Galvanized Steel housing attaches to reflec-
tor trim by spring clip for precise optic alignment.
Lightolier is a Philips group brand
6 ¾" Aperture, 1 Light, Compact Fluorescent, Non-IC, Dimming, Frame-In Kit
5
8
7
9"
6
Uniframe Compact Fluorescent Performance Series Reflector Trims
™
Vertical Open Vertical Wall
Wash - Single
1101CL 1101CLSW
1101CD 1101CDSW
1101WH 1101WHSW
Universal Series Reflector Trims (Reference Trim Spec Sheet for Recommended Lamping)
Performance Cone Cone
1113CFL 1112*
1113CDCFL 1113*
1113BK*
1113WH
1113CD*
1145
1146 / 1146CD
1143
1144 / 1144CD
Performance Recessed CFL Downlighting
7 3/4"
10 1/2"
3
12 15/16" MIN
24 1/8" MAX
Vertical Wall Horizontal Open Horizontal Wall
Wash - Double
1101CLDW 1101HCL
1101CDDW 1101HCD
1101WHDW 1101HWH
Satin Cone Baffle
1108* 1105*
1110* 1105BNM
1105WH
1176
1176WH
**Lutron Compact SE 5%
*Add NM suffix to catalog number for Natural Metal flange and finish.
Labels
cULus Listed. Suitable for Damp Locations.
Accessories
1967A Extra Thick Ceiling Adapter (2" thk)
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • D0408
For O.A. Height See
Trim Specification
6 3/4" Frame
Aperture
6 15/16" Ceiling
Cutout
Horizontal Wet Location
Wash - Single Lensed / Diffused
1101HCLSW
Clear Lens Fresnel
1101HCDSW 1101HCLC 1101HCLF
1101HWHSW 1101HCDC 1101HCDF
1101HWHC 1101HWHF
Opal Lens
1101HCLO
1101HCDO
1101HWHO
Wall Wash Wet Location Cross Blade
1135 1121 1132
1135WH 1124
1195 1134
1196 1177SH
1196CD 1178SH
1190
Type:
1101FDL
Horizontal
Cross Blade
1101HACB
1101HWHCB
