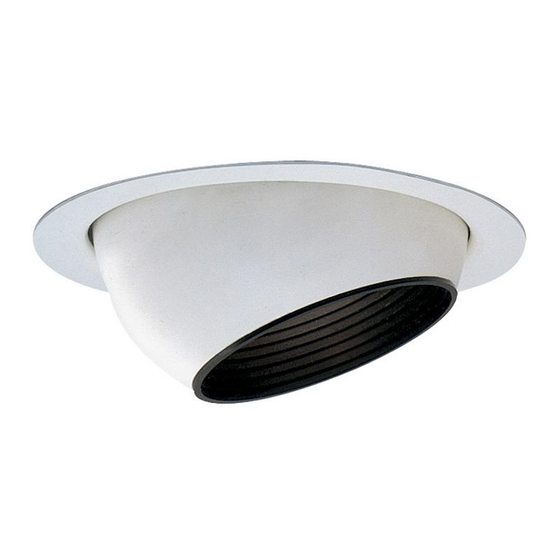

Lightolier Lytecaster 1022 Specification

5" Aperture
Baffled Eyeball
Reflector Trim
40˚
Page 1 of 2
1022/1002P1 Series
Standard Incandescent
Complete Fixture consists of FRAME-IN KIT & REFLECTOR TRIM. Select each separately.
Reflector Trim
J 1022 Matte White with
Matte Black Step Baffle
J 1022WH Matte White with
Matte White Step Baffle

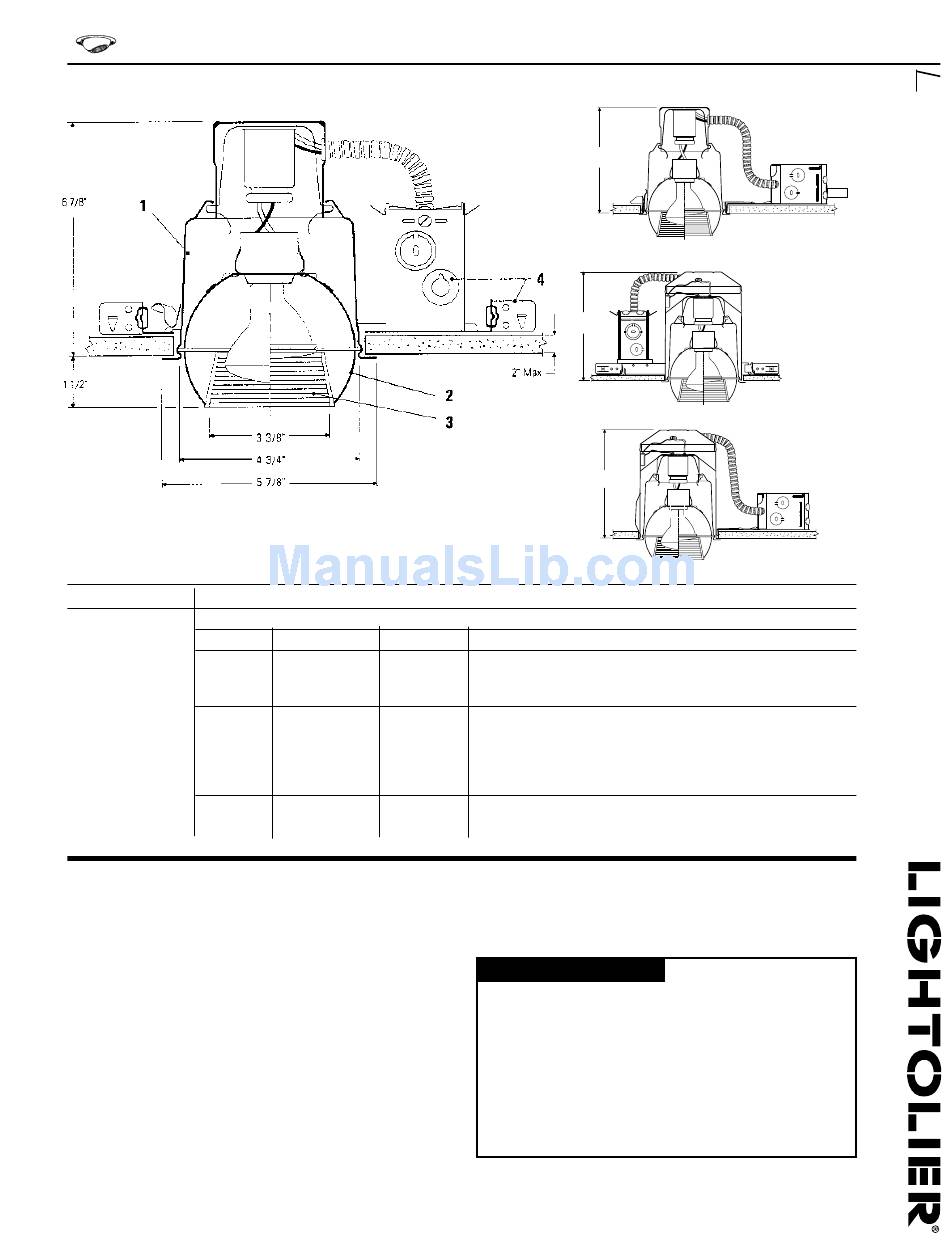

Features
1. Housing: Aluminum, .040" (18 ga.); matte white flange.
2. Eyeball Housing: Die-formed, one piece, aluminum, 18 ga.;
provides 358˚ horizontal rotation and 0˚ to 40˚ vertical adjustment;
matte white finish.
3. Step Baffle: Die-cast aluminum with stepped conical surface for
low brightness; precision-fitted into eyeball housing; matte black
finish.
4. Frame-In Kit: (1002P1 standard frame shown). Other frames listed
above and shown on the right. See Frame-In Kit specification sheets
for more details.
WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS,
AND FINISH.
Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.
Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets
Frame-In Kit
1022 1002P1
Matte White with 1003R
Matte Black Step Baffle
1022WH 1000IC
Matte White with 1000AICM
Matte White Step Baffle 1004ICX/N
1004IC/N
1004ICR
1004IC/N
1004ICR
Features
1. Housing: Aluminum, .040" (18 ga.); matte white flange.
2. Eyeball Housing: Die-formed, one piece, aluminum, 18 ga.; provides 358°
horizontal rotation and 0° to 40° vertical adjustment; matte white finish.
3. Step Baffle: Die-cast aluminum with stepped conical surface for low
brightness; precision-fitted into eyeball housing; matte black or
Matte White finish.
4. Frame-In Kit: (1002P1 standard frame shown). Other frames listed above
and shown on the right. See Frame-In Kit specification sheets for more
details.
Options & Accessories
Retaining Clips: 1955 - For installing in existing ceiling
Extra Wide Flange Trim Kit: 1957 - 7" O.D.
Labels
UL (Suitable for Damp Locations - Covered Ceiling), I.B.E.W.
Lytecaster
1022
Lytecaster
®
Recessed
Downlighting
C0101
6 7/8"
1022/1003R
0
Non-IC
™
Remodeler Ring
7 1/2"
1022/1004IC
0
Convertible
™
IC/Non-IC
7 1/2"
1022/1004ICR
0
Convertible
™
Remodeler IC/Non-IC
Frame-In Kit - See Individual Frame-In Kit Specification Sheets
Incandescent
Frame-In Kit Ceiling Type Lamping Height
J 100P1 Non-IC 50W PAR20 6 7/8"
J 1003R Non-IC Remodeler 75 W R20 6 7/8"
IC
J 1000IC
7 5/16"
IC
J 1000AICM
50W PAR20 7 5/16"
IC
J 1004ICX/N
75W R20 7 1/4"
IC
J 1004IC/N
7 1/2"
IC Remodeler
J 1004ICR
7 1/2"
1022/1002P1 Series
Non-IC 7 1/2"
J 1004IC/N 50W PAR20
Non-IC Remodeler 7 1/2"
J 1004ICR 75W R20
Standard Incandescent
Options & Accessories
Retaining Clips: 1955 - For installing in existing ceiling
Extra Wide Flange Trim Kit: 1957 - 7" O.D.
Labels
UL (Suitable for Damp Locations - Covered Ceiling); I.B.E.W.;
U.S. Patent Numbers: 4,313,154; 4,327,403; 5,045,985
Other U.S. & Foreign Patents Pending
LIGHTOLIER a GENLYTE THOMAS company.
631 Airport Road, MA 02720
(508) 679-8131 • Fax (508) 674-4710 Copyright 2001
Incandescent
Ceiling Type Lamping
Non-IC 50W PAR20
Non-IC 75W R20
Remodeler
IC 50W PAR20
IC AirSeal 75W R20
IC AirSeal
IC
IC Remodeler
Non-IC 50W PAR20
Non-IC Remodeler 75W R20
Recessed Downlighting
®
TYPE:
5" Aperture Baffle Eyeball Reflector Trim
6 7/8"
7 1/2"
7 1/2"
Height
6 7/8"
6 7/8"
7 5/16"
7 5/16"
7 1/4"
7 1/2"
7 1/2"
7 1/2"
7 1/2"
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2011 Genlyte Group LLC • H0811
1022/1003R
0
™
Non-IC Remodeler
1022/1004IC
0
Convertible
™
IC/Non-IC
1022/1004ICR
0
Convertible
™
Remodeler IC/Non-IC
Type:
www.lightolier.com
1022
40°
